AR07.70-P-0002GQ Remove/Install For NOx Temperature Sensor For Storage Catalytic Converter

AR07.70-P-0002GQ Remove/Install For NOx Temperature Sensor For Storage Catalytic Converter
ENGINES 276 in MODEL 166.0, 251

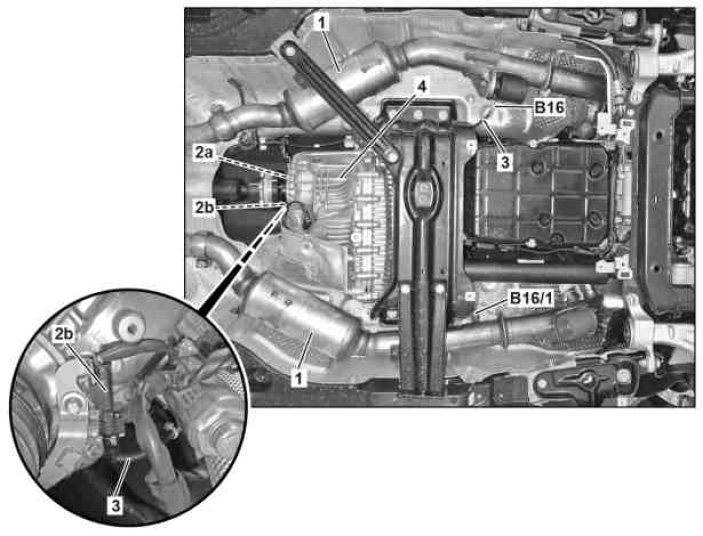

Shown on model 166

1 NOx storage catalytic converter
2a Electrical connector
2b Electrical connector
3 Electrical line
4 Transfer case

B16 Temperature sensor upstream of NOx storage catalytic converter, right
B16/1 Temperature sensor upstream of NOx storage catalytic converter, left
