Mercedes Benz Truck
>>
2012
>>
R 350 4MATIC (251.157) V6-3.5L (276.958)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Adjustments
>>
AP82.10-P-8260RT Check and Correct Headlamp Adjustment
AP82.10-P-8260RT Check and Correct Headlamp Adjustment
AP82.10-P-8260RT Check And Correct
Headlamp
Adjustment

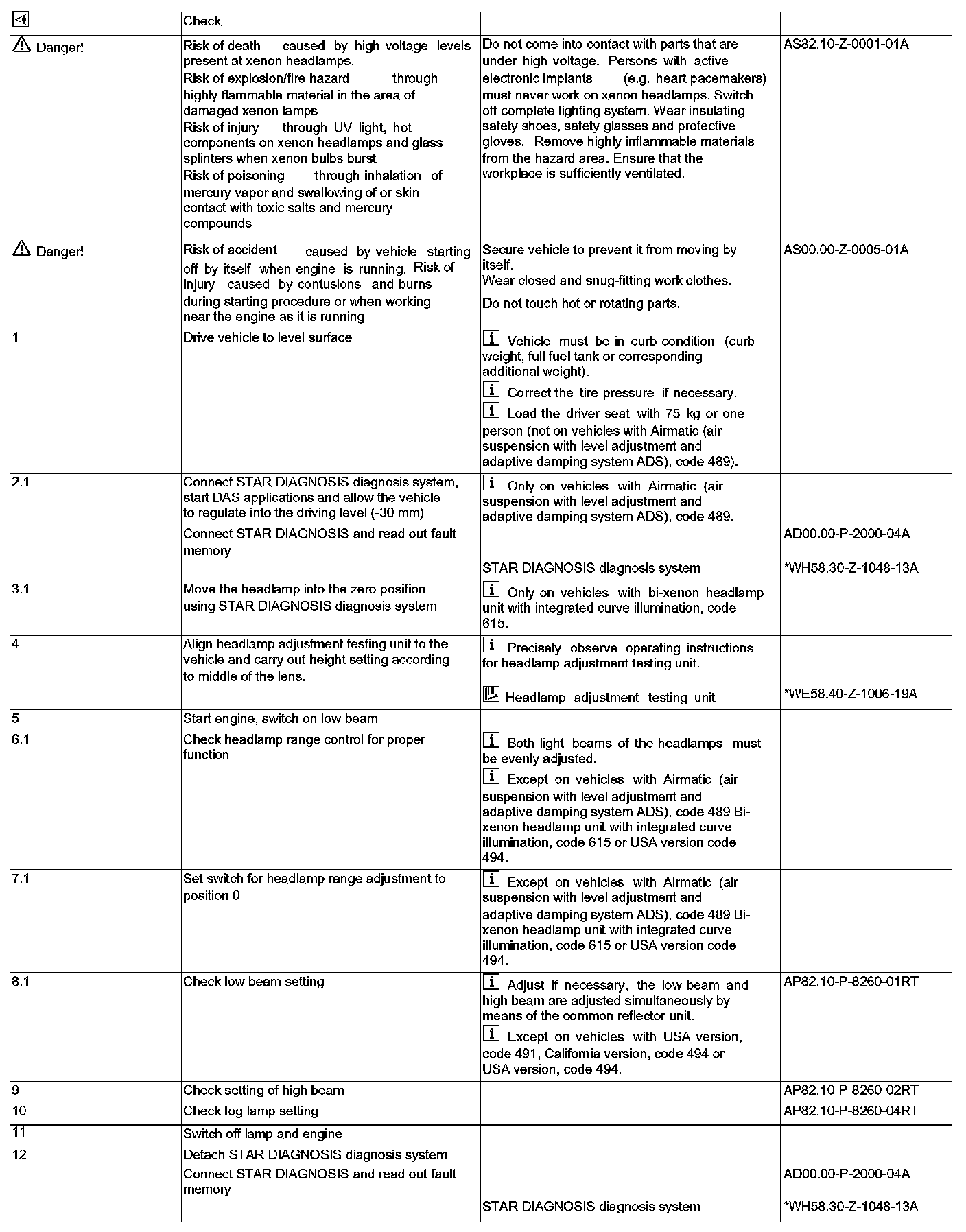

Steps 1 - 12:

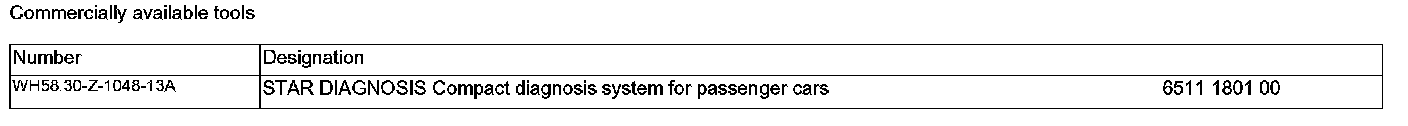

Commercially Available Tools:

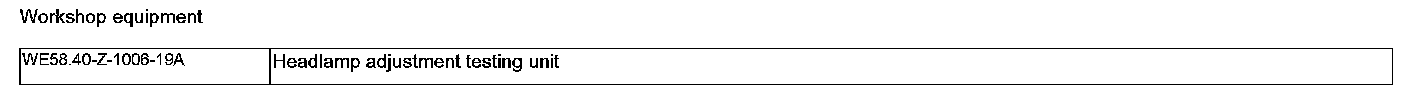

Workshop Equipment:
