AR83.30-P-1760RT Drain, Evacuate and Refill Air Conditioning, Check Function and Check For Leaks

AR83.30-P-1760RT Drain, Evacuate And Refill Air Conditioning, Check Function And Check For Leaks
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning
- with CODE (582) Rear air conditioner

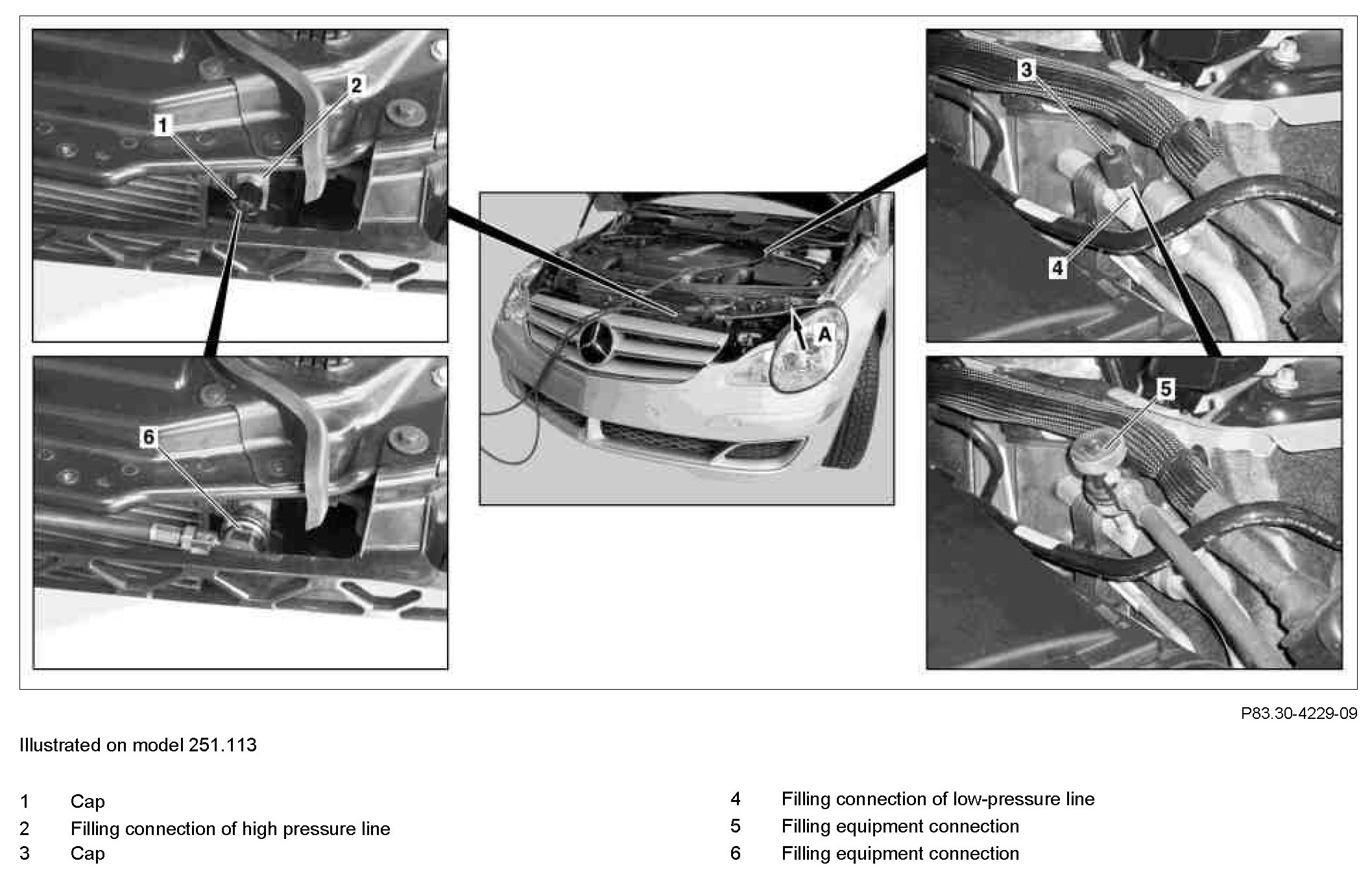

Component Identification:

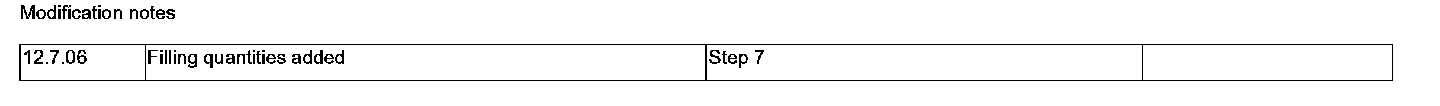

Modification Notes:

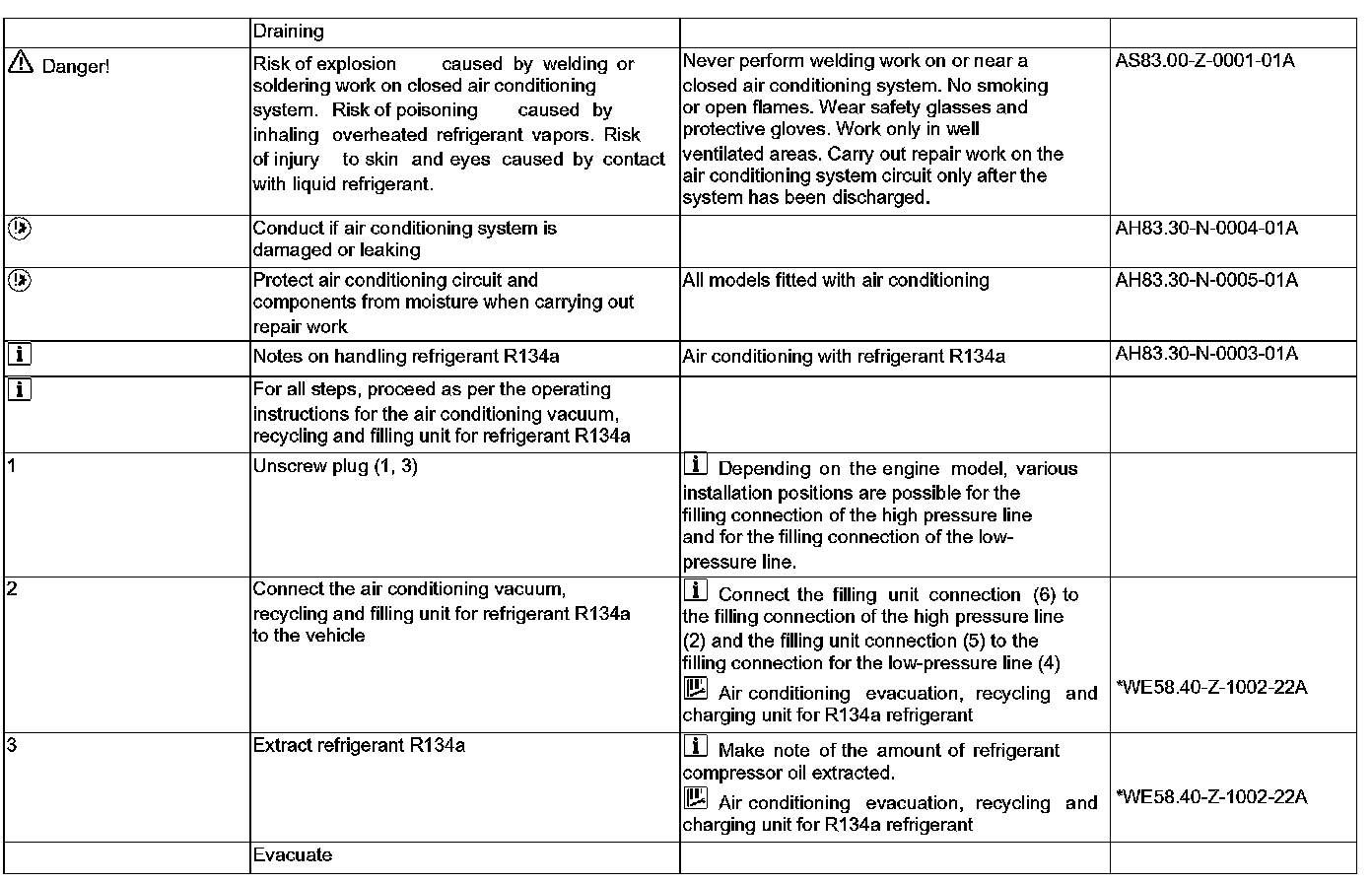

Steps 1 - 3:

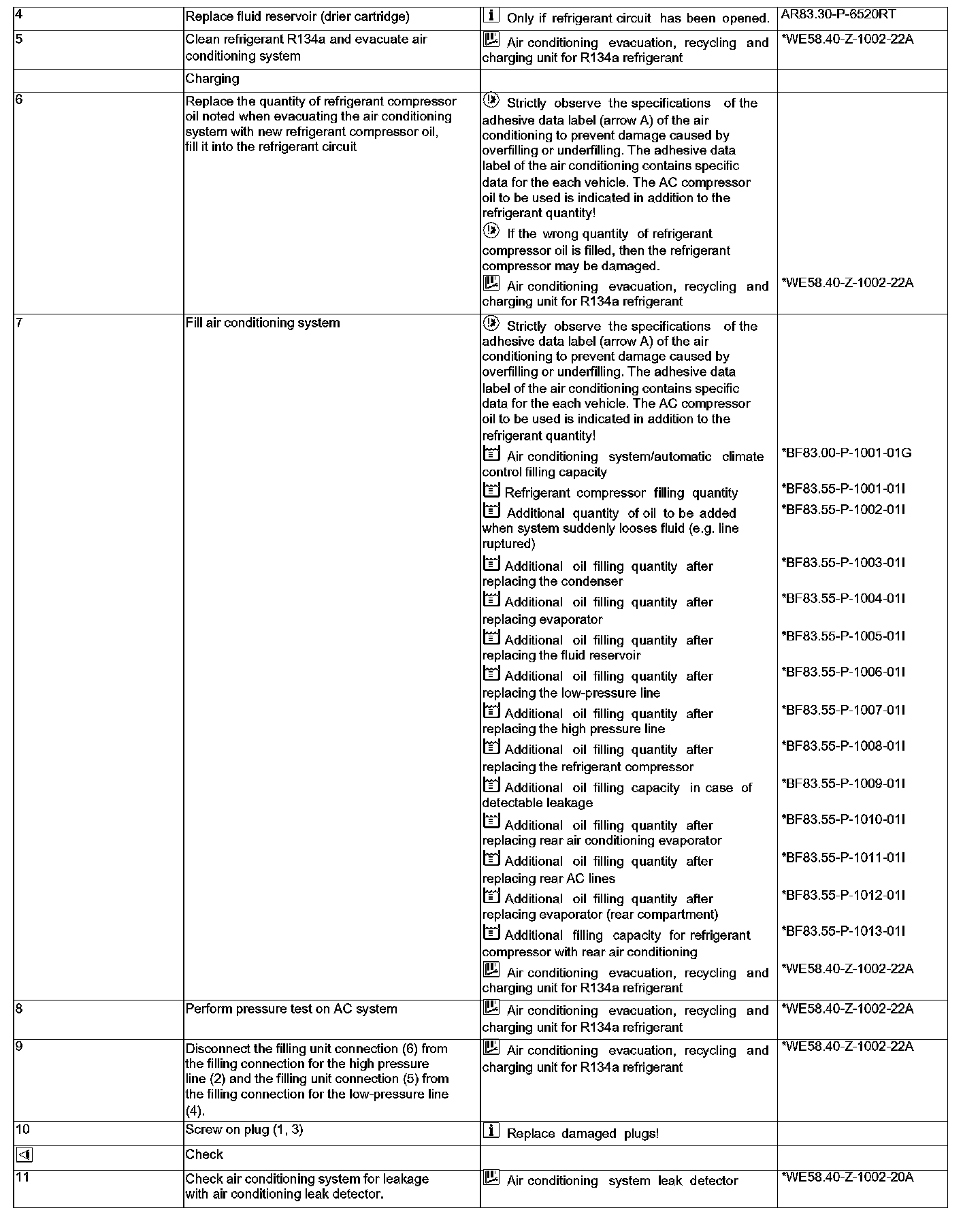

Steps 4 - 11:

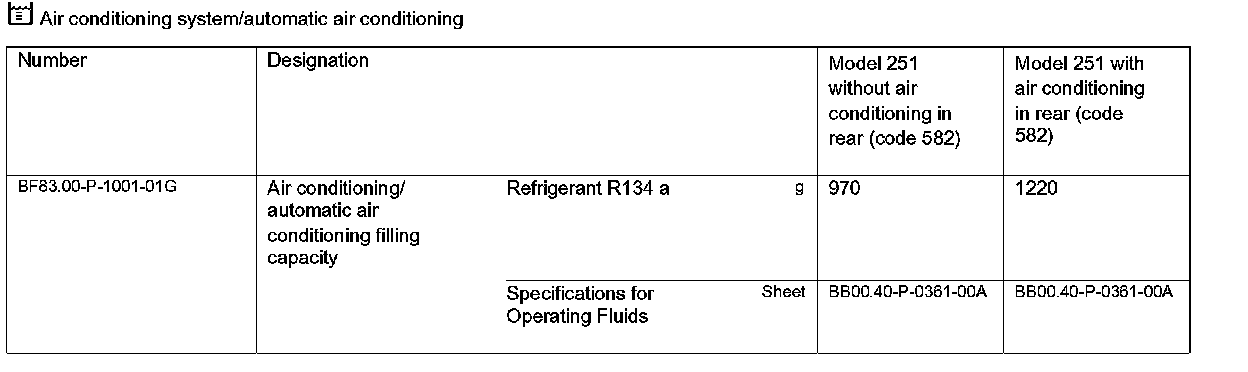

Air Conditioning System/Automatic Air Conditioning:

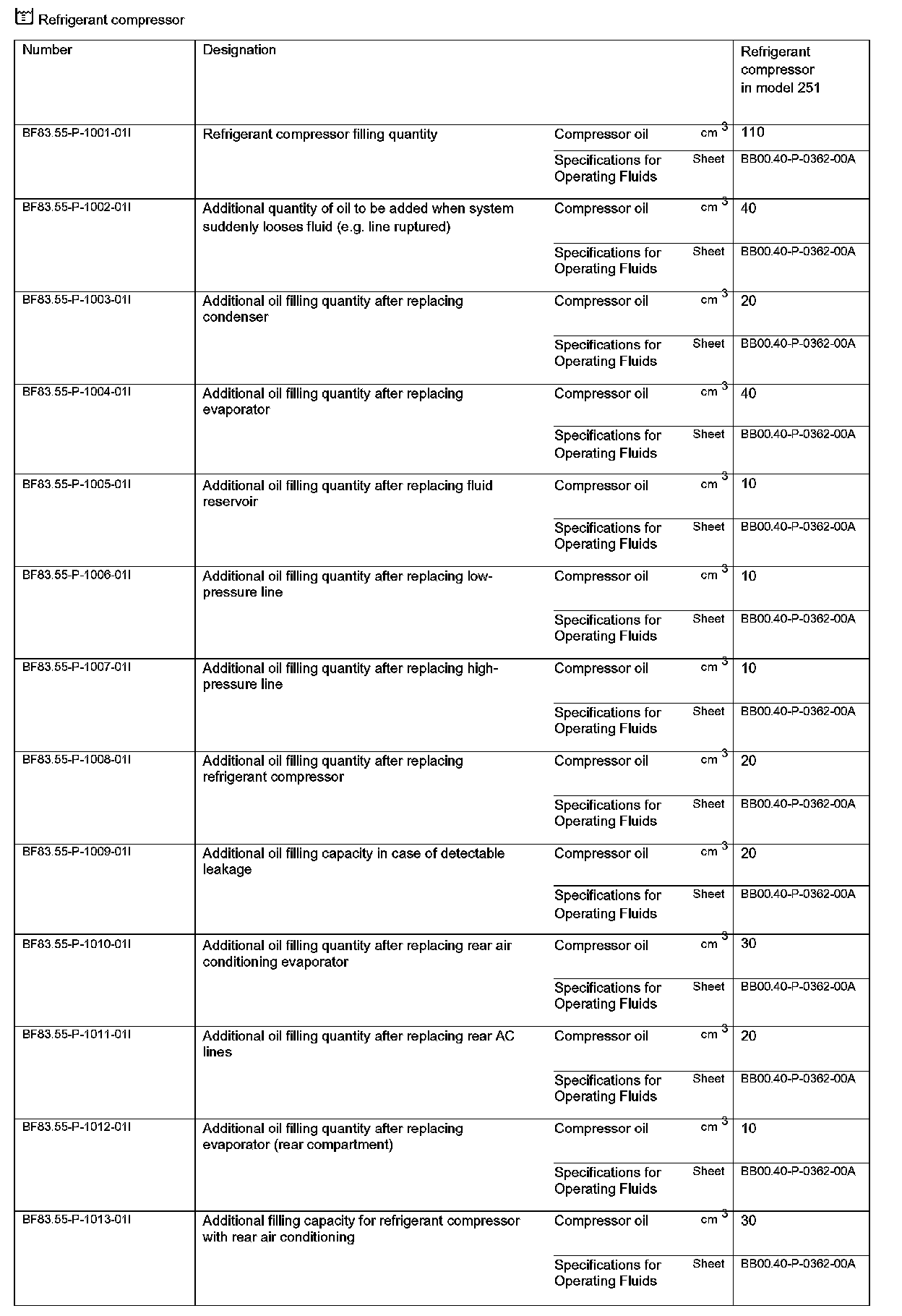

Refrigerant Compressor:

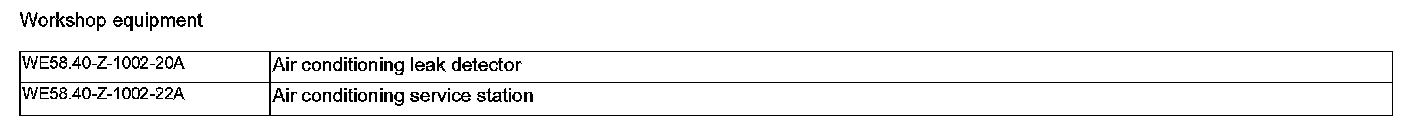

Workshop Equipment:
