AR01.10-P-2500GQ Remove/Install Engine With Front Axle Carrier

AR01.10-P-2500GQ Remove/Install Engine With Front Axle Carrier
ENGINES 276 in MODEL 166.0, 251

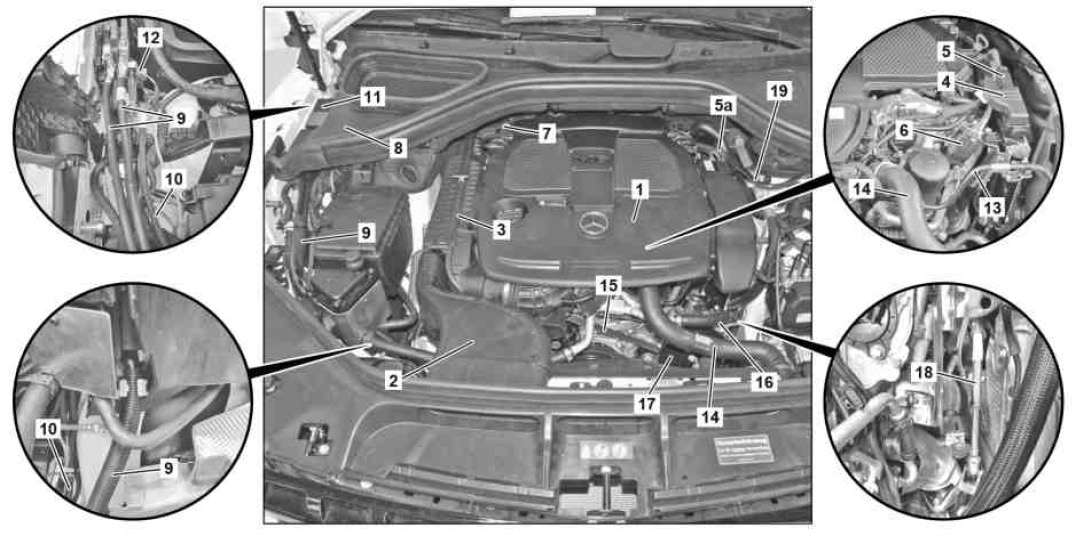

Shown on model 166

1 Engine cover
2 Engine air intake duct
3 Air cleaner housing
4 Electrical connector
5 Electrical connector
6 Electrical connector
7 Electrical connector
8 Air intake box upper section
9 Alternator/starter wiring harness
10 Electric steering wiring harness
11 Prefuse box
12 Electric steering connector
13 Purge line
14 Coolant hose
15 Poly-V belt
16 Hydraulic line
17 Hydraulic pump
18 Steering shaft
19 Vacuum line

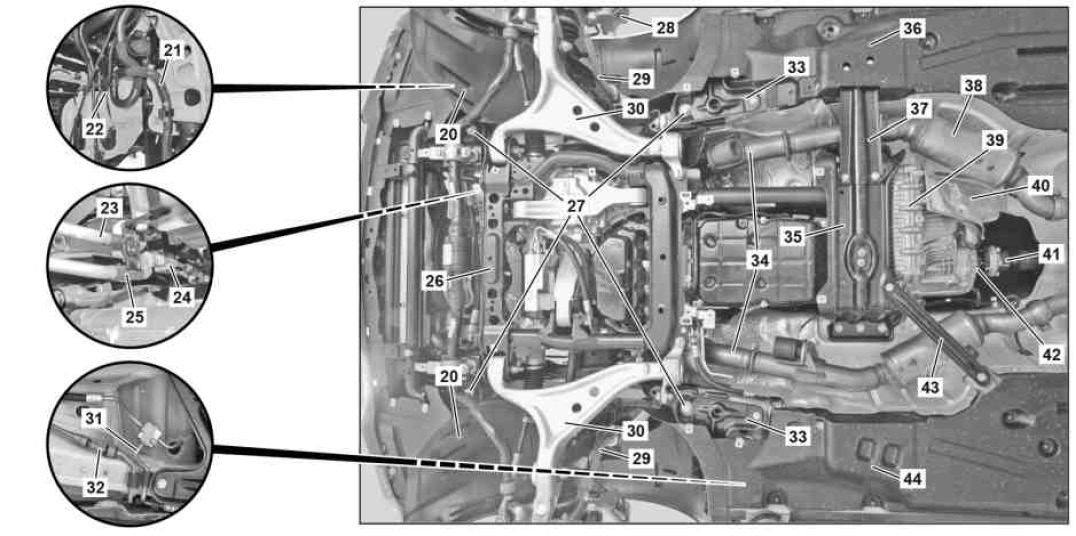

Shown on model 166

20 Fender liner
21 Coolant hose
22 Switchover valve
23 Oil cooling line return line
24 Thermal wax valve
25 Oil cooling line feed line
26 Front axle carrier
27 Screw/bolts
28 Brake caliper
29 Steering knuckle
30 Transverse control arm
31 Low pressure pipe
32 High pressure pipe
33 Stiffening plate
34 Exhaust manifold with catalytic converter
35 Rear engine crossmember
36 Underbody paneling
37 Stiffening plate
38 NOx storage catalytic converter
39 Transfer case
40 Shield
41 Propeller shaft
42 Electrical connector
43 Stiffening plate
44 Underbody paneling


























129 589 01 21 00
Holding device





119 589 04 63 00
Pressure hose





129 589 00 91 00
Set of stop plugs





210 589 00 71 00
Hand pump





003 589 03 37 00
Hose clamp pliers





230 589 01 33 00
Detaching tool
