AR20.00-P-1010GZC Inspecting Cooling System For Leaks



AR20.00-P-1010GZC Inspecting cooling system for leaks

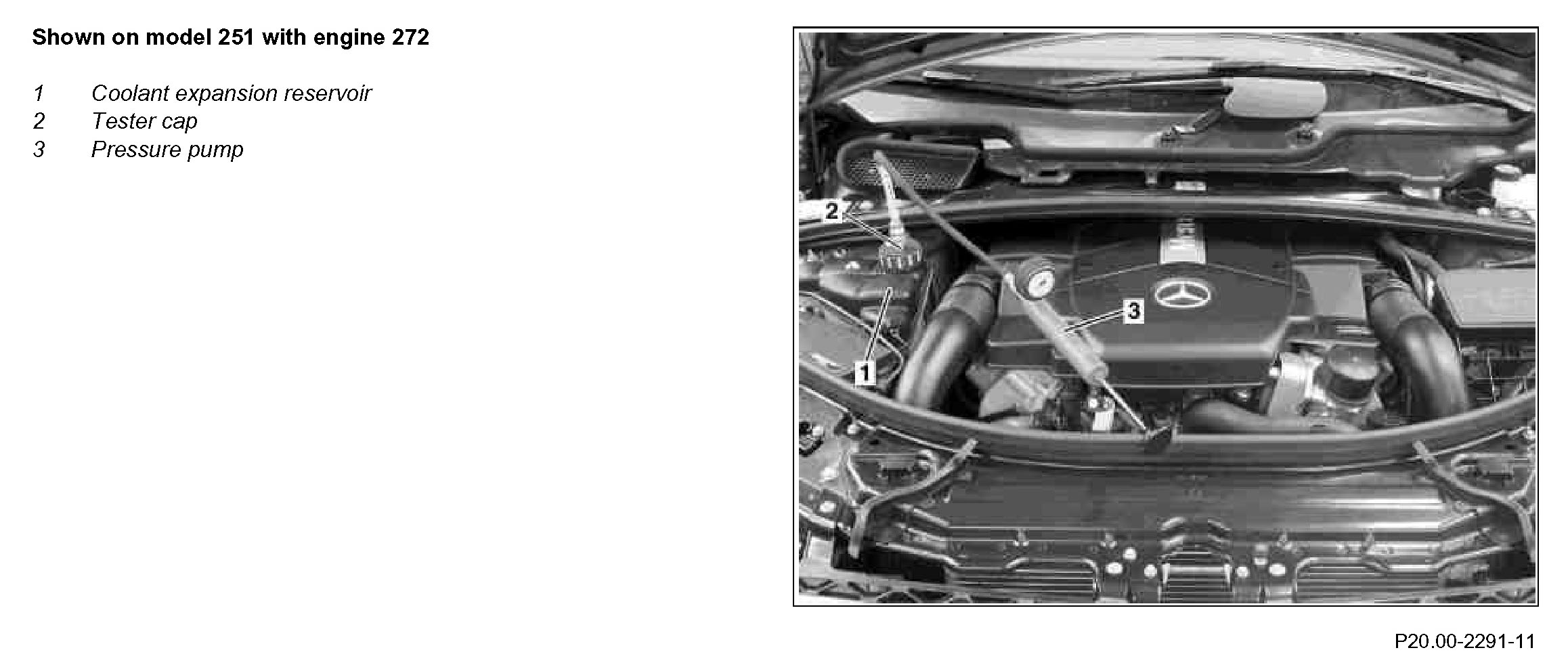

Component Identification:

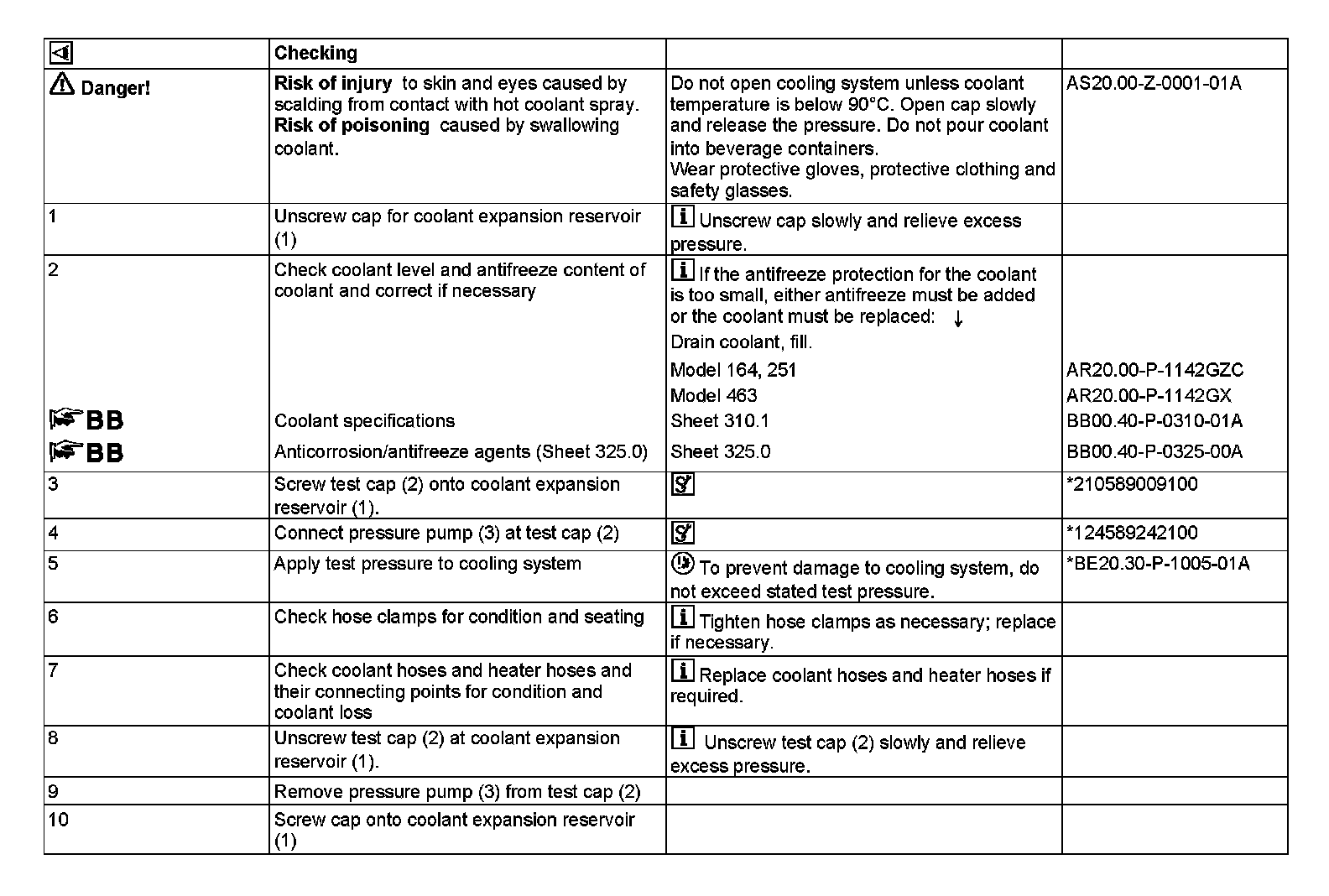

Steps 1-10:

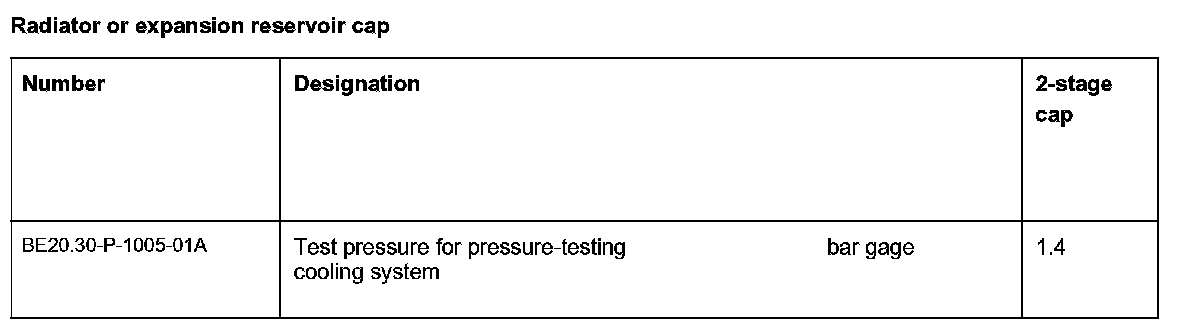

Radiator or expansion reservoir cap:

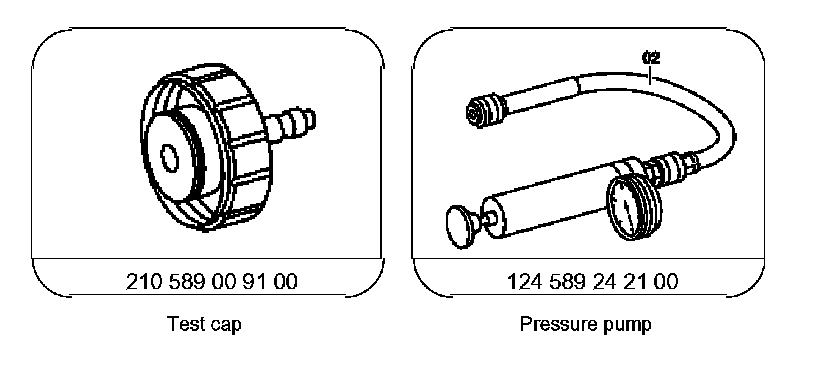

Special Tools:
