Mercedes Benz Truck
>>
2012
>>
R 350 4MATIC (251.157) V6-3.5L (276.958)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AP20.00-P-2080RTC Replace coolant

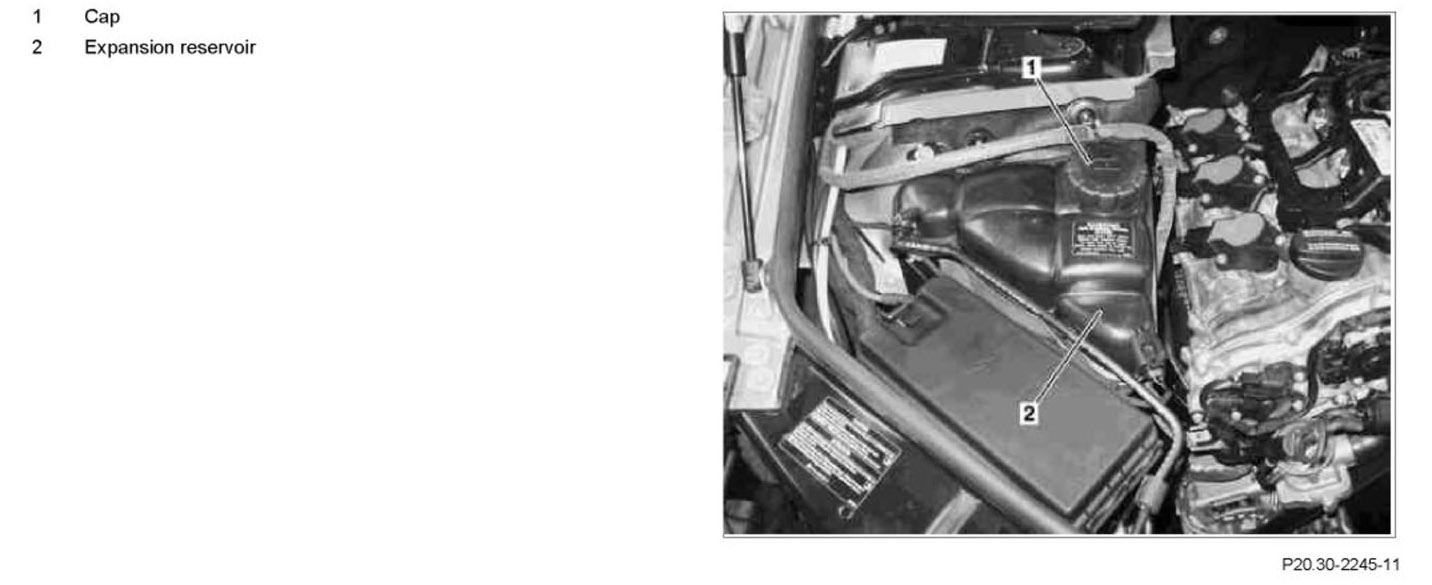

Component Identification:

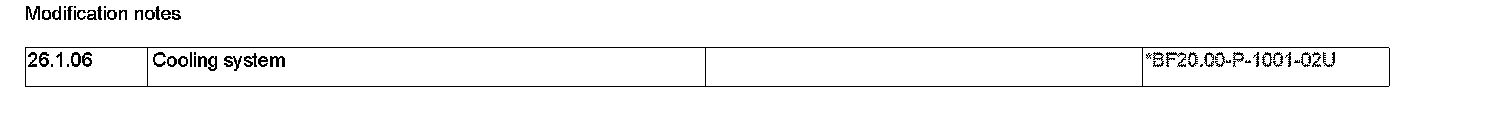

Modification Notes:

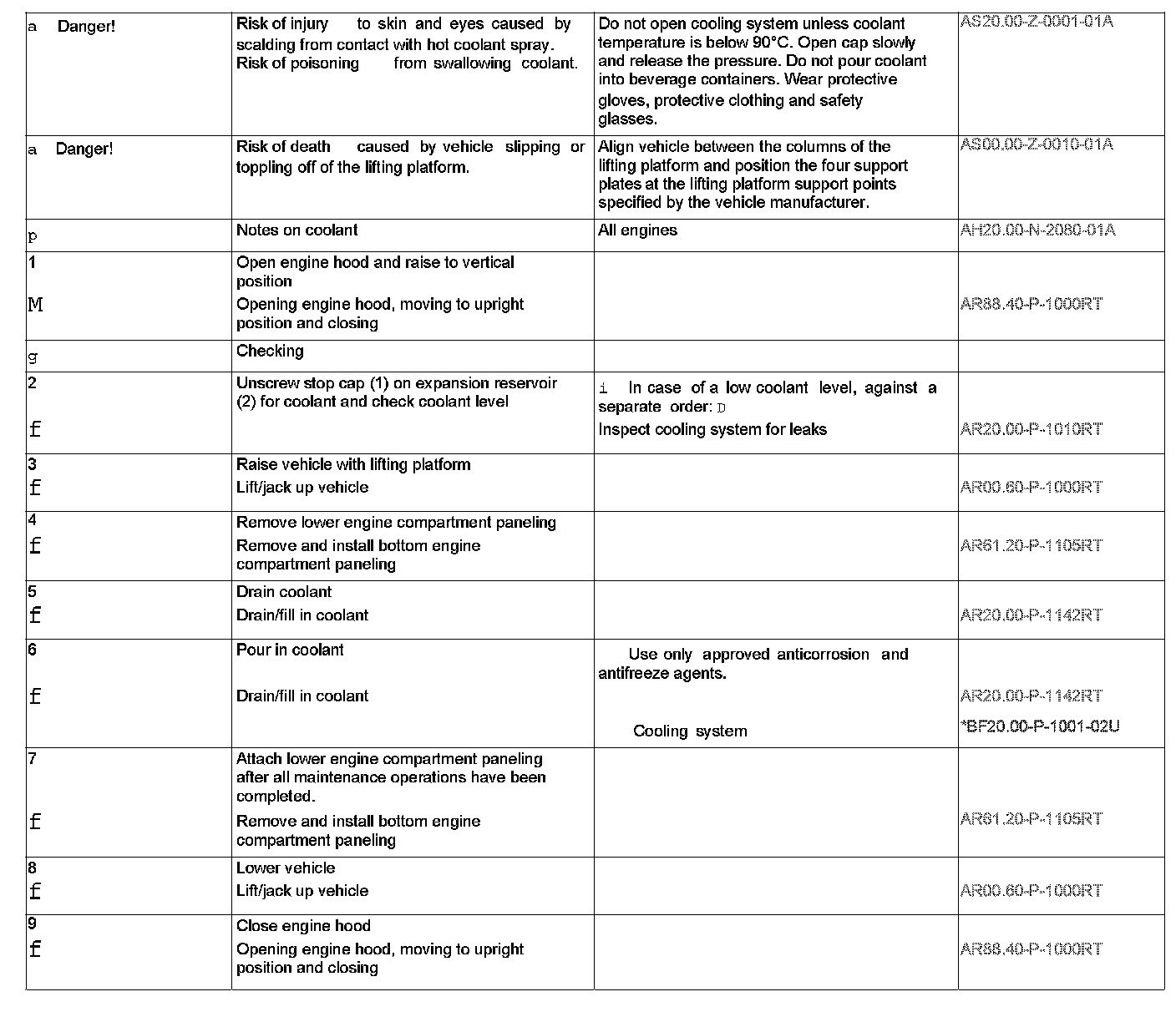

Steps 1 - 9:

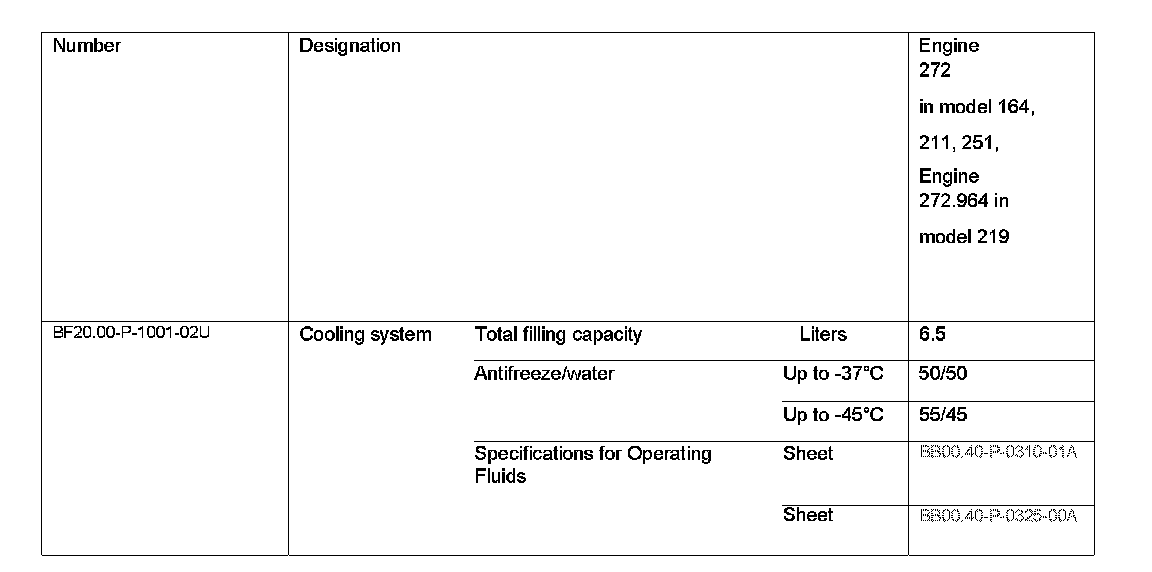

Cooling System:
