PE07.10-U-2719RAC Electrical Function Schematic For Engine Limp-Home Mode

PE07.10-U-2719RAC Electrical Function Schematic For Engine Limp-Home Mode

ENGINES 276 in MODEL 251

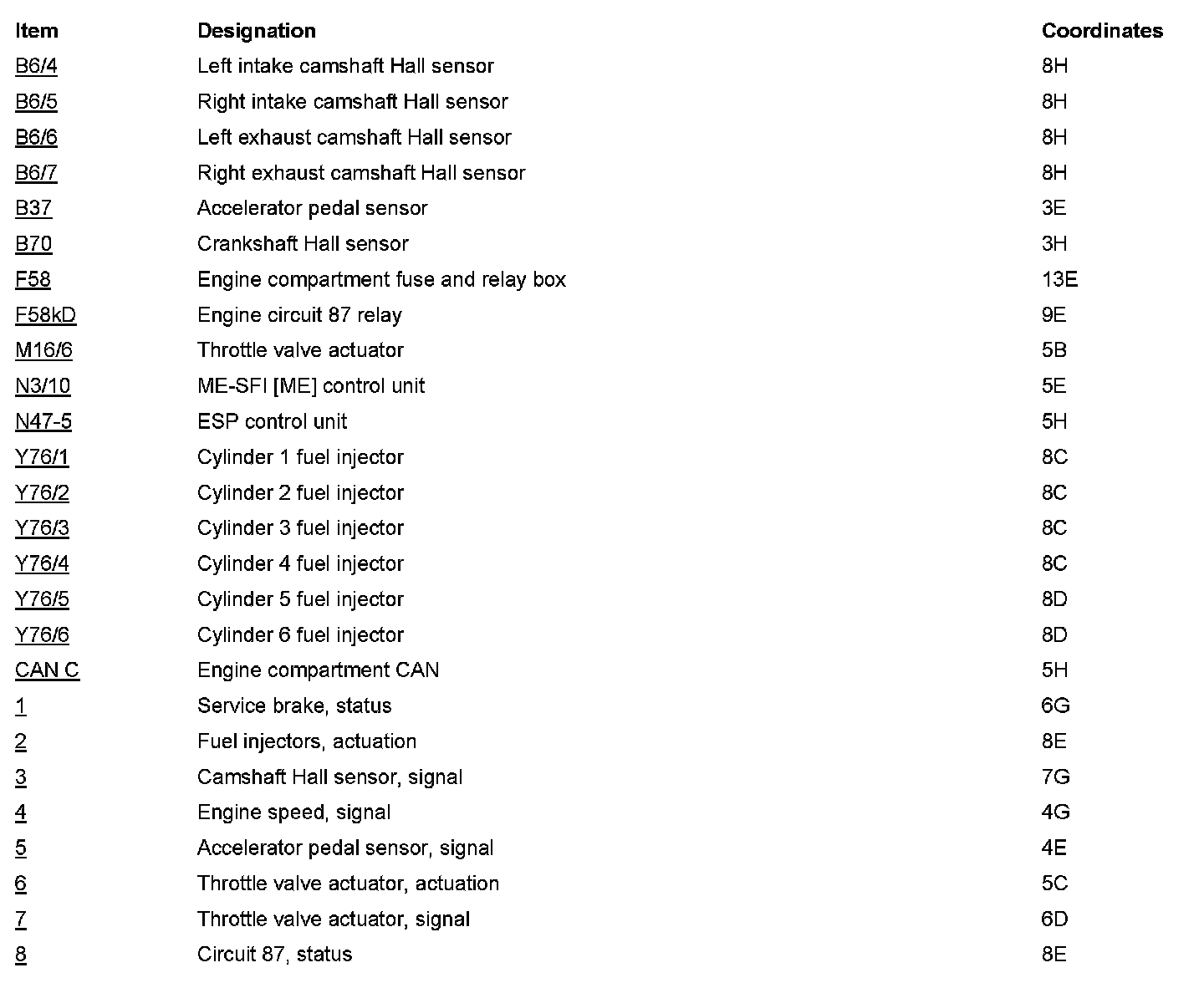

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Components
