PE07.10-U-2717RAC Electrical Function Schematic For Intake Manifold Switchover

PE07.10-U-2717RAC Electrical Function Schematic For Intake Manifold Switchover

ENGINES 276 in MODEL 251

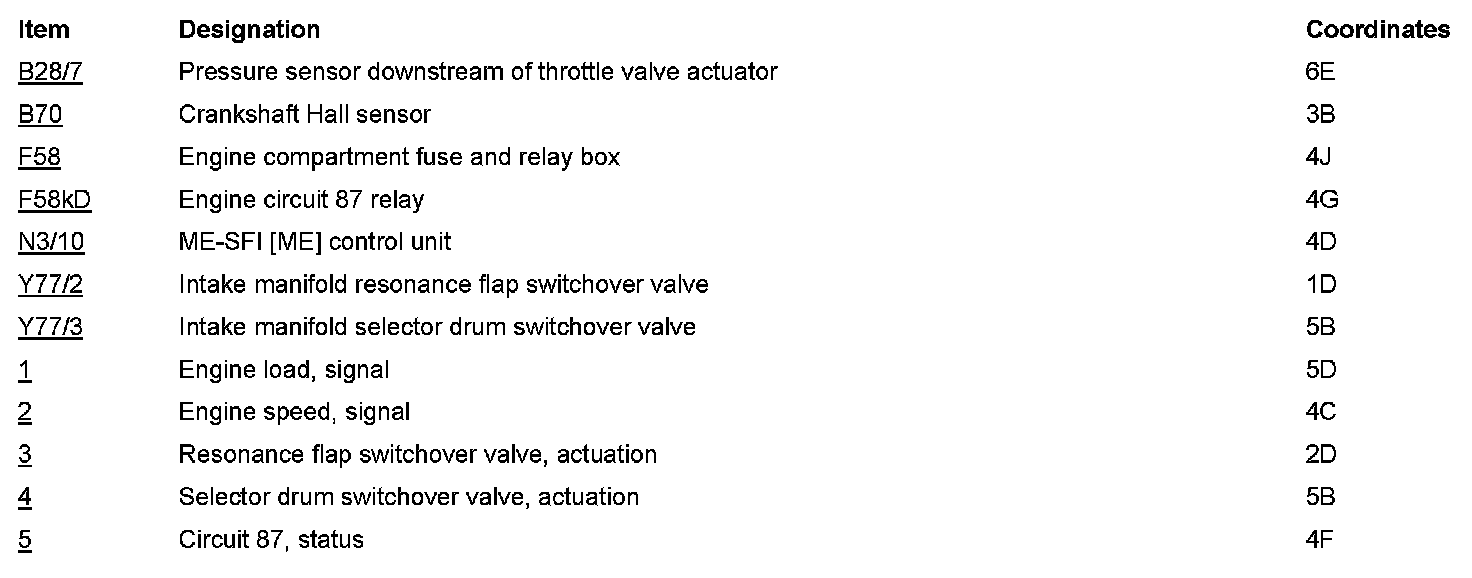

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Components
