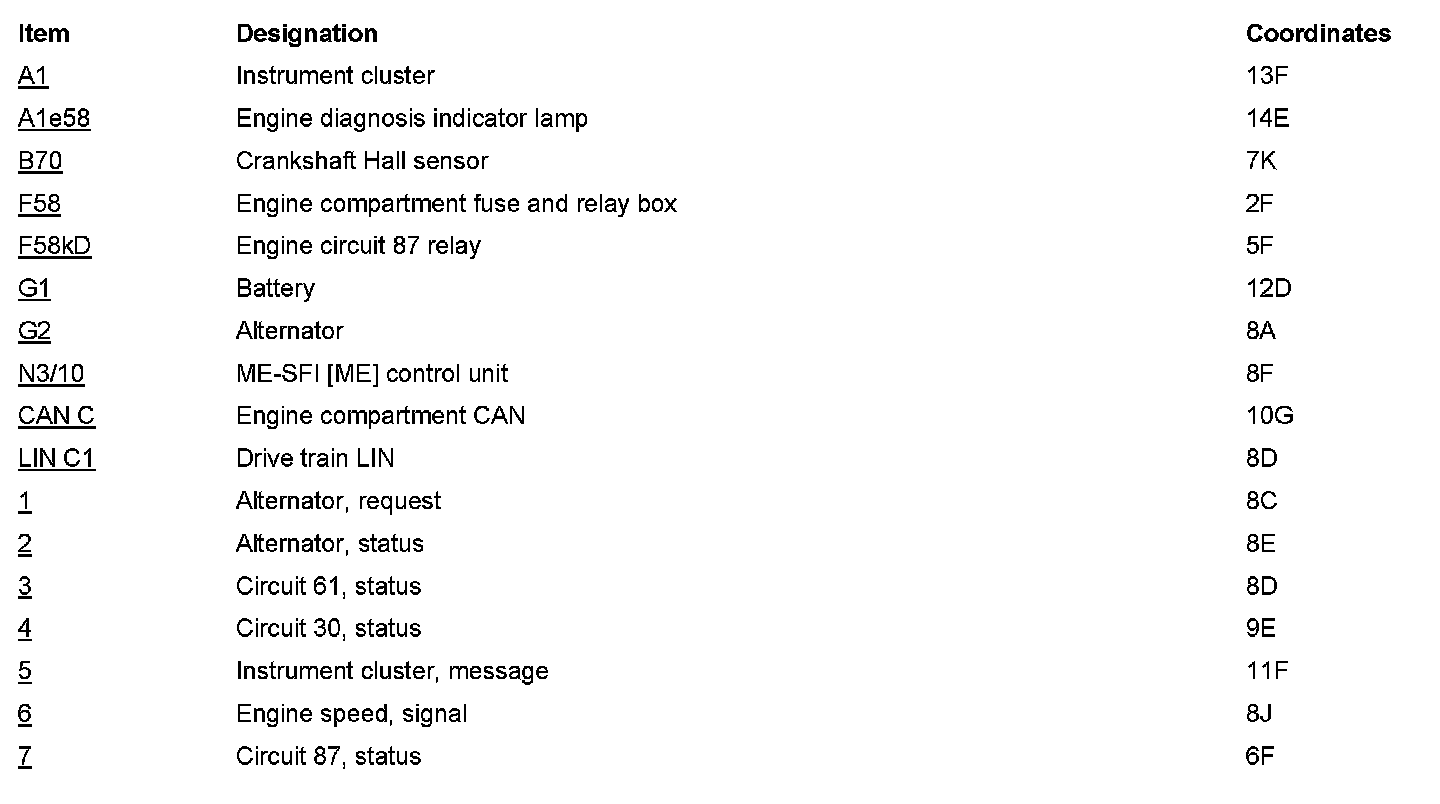

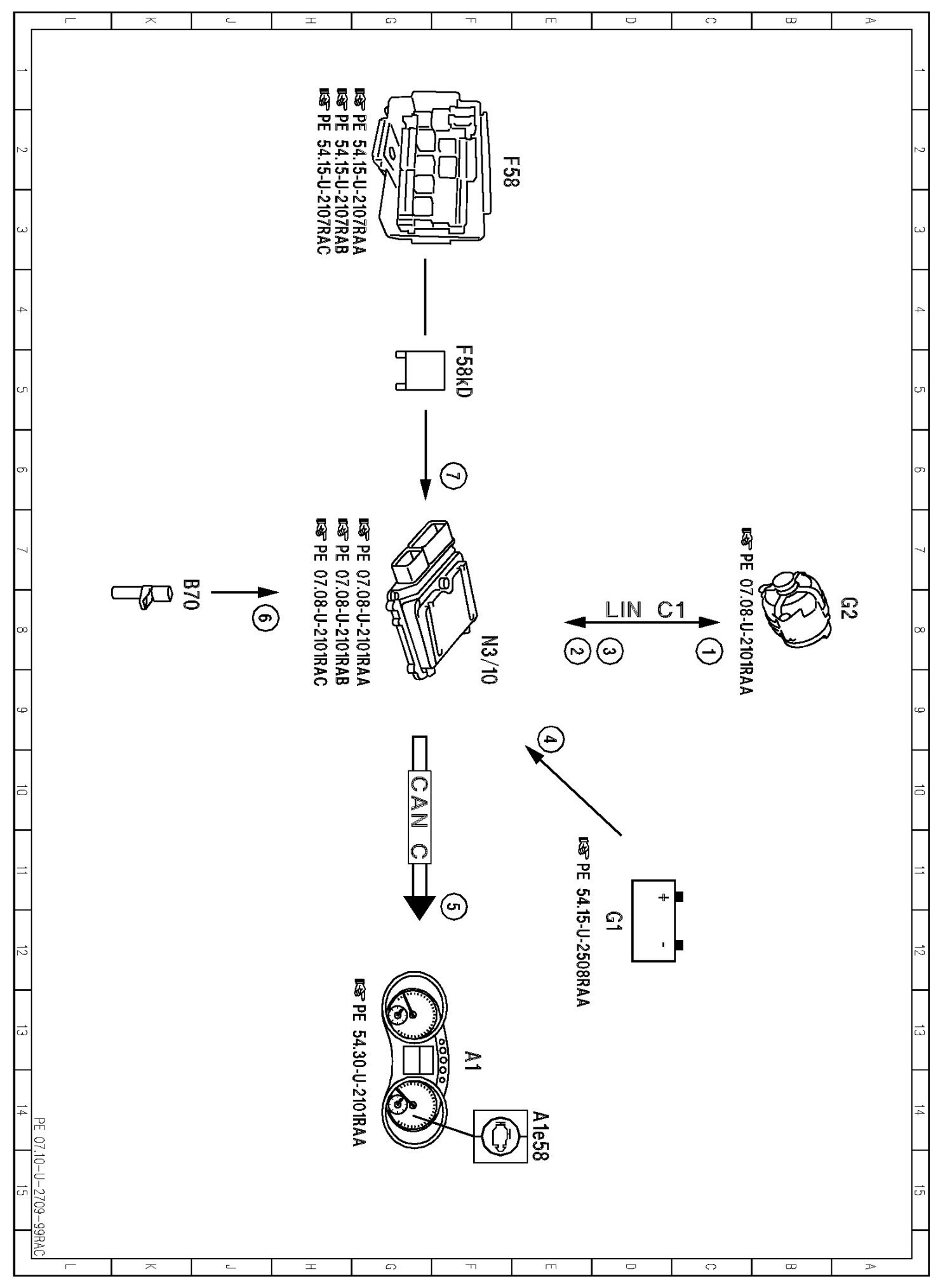

PE07.10-U-2709RAC Electrical Function Schematic For Alternator Interface

PE07.10-U-2709RAC Electrical Function Schematic For Alternator Interface

ENGINES 276 in MODEL 251










Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Components
