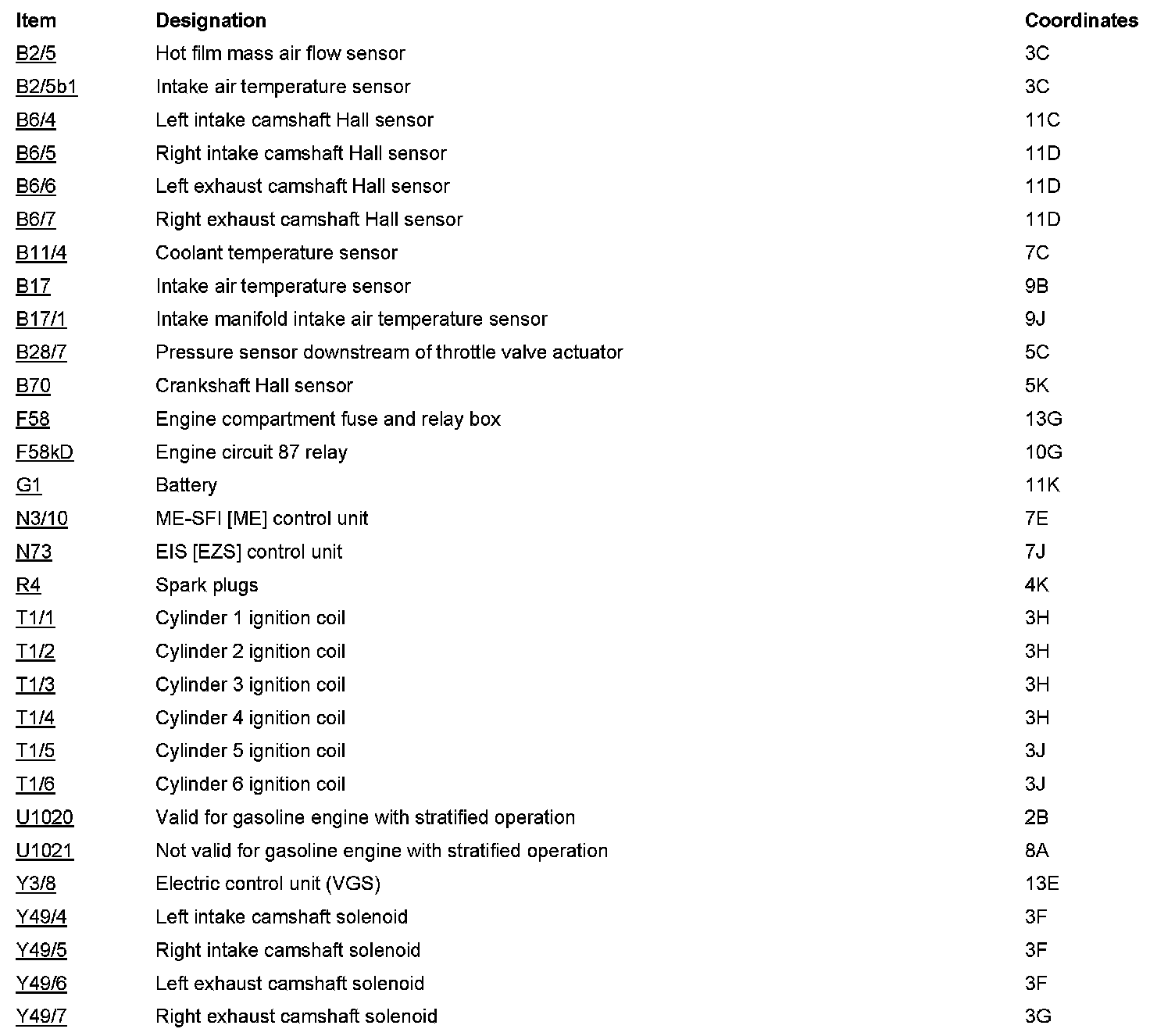

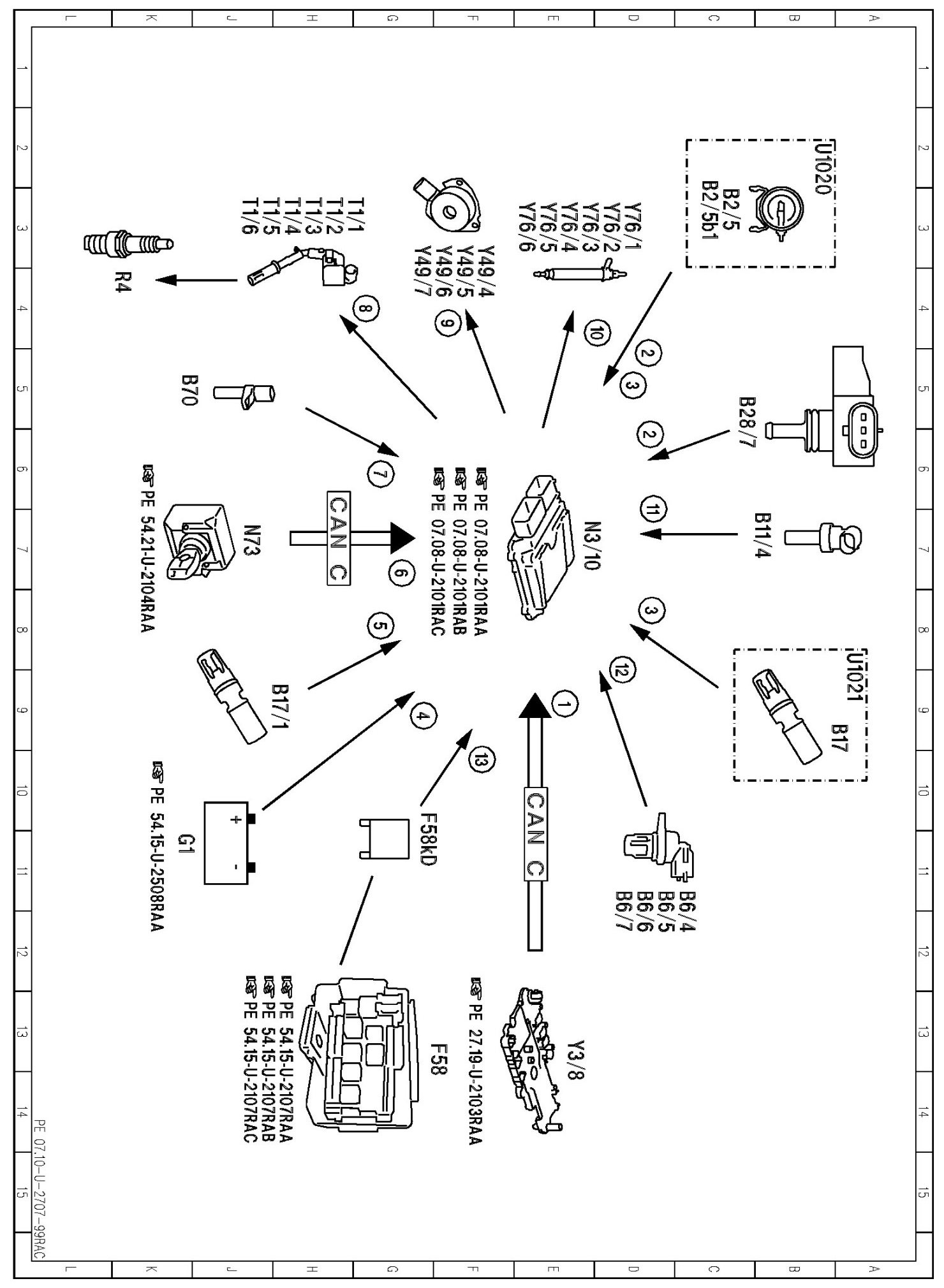

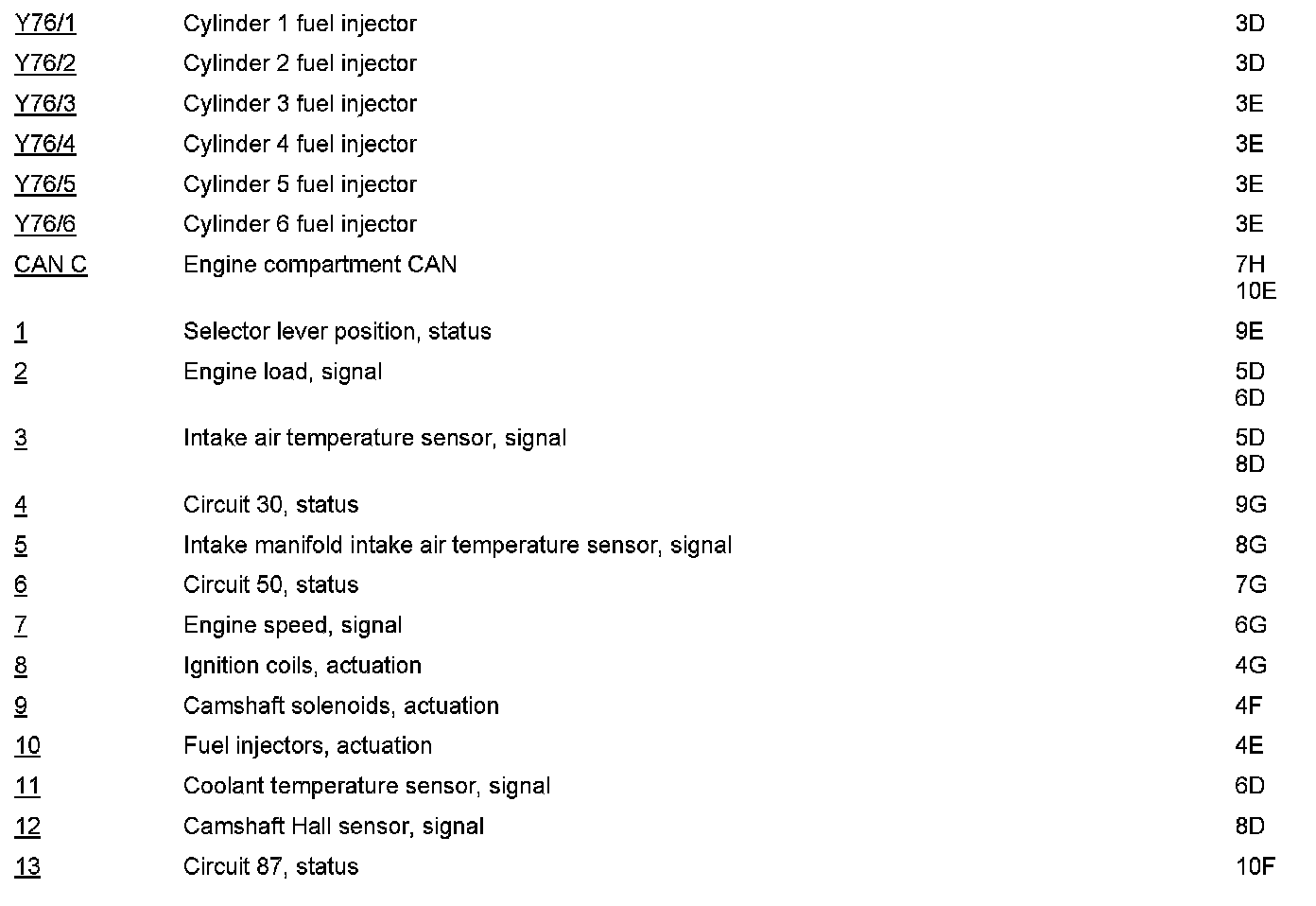

PE07.10-U-2707RAC Electrical Function Schematic For Start Phase, Post-Start Phase And Warm-Up Enrichment

PE07.10-U-2707RAC Electrical Function Schematic For Start Phase, Post-Start Phase And Warm-Up Enrichment

ENGINES 276 in MODEL 251














Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Components
