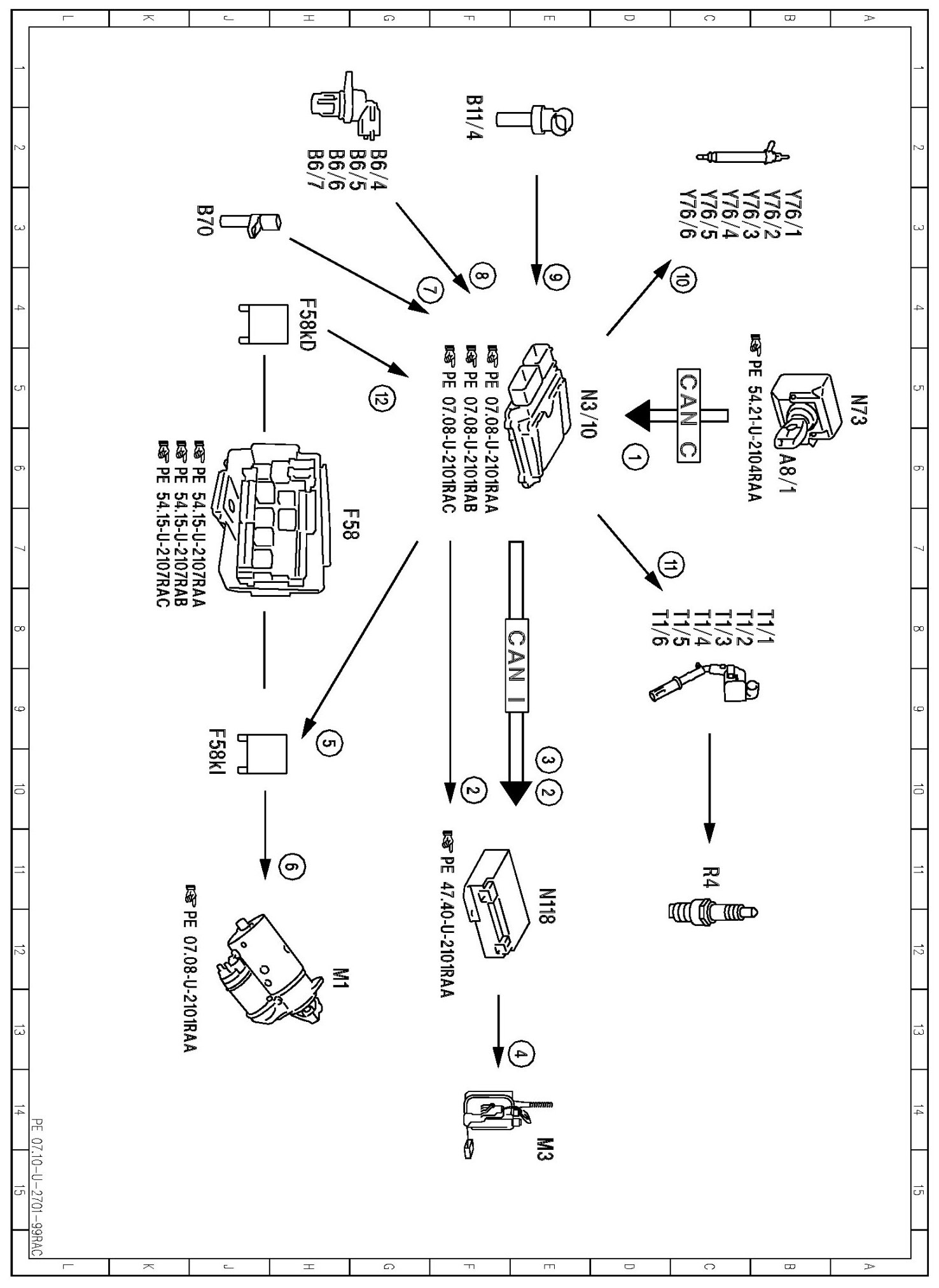

PE07.10-U-2701RAC Electrical Function Schematic For Starting

PE07.10-U-2701RAC Electrical Function Schematic For Starting

ENGINES 276 in MODEL 251

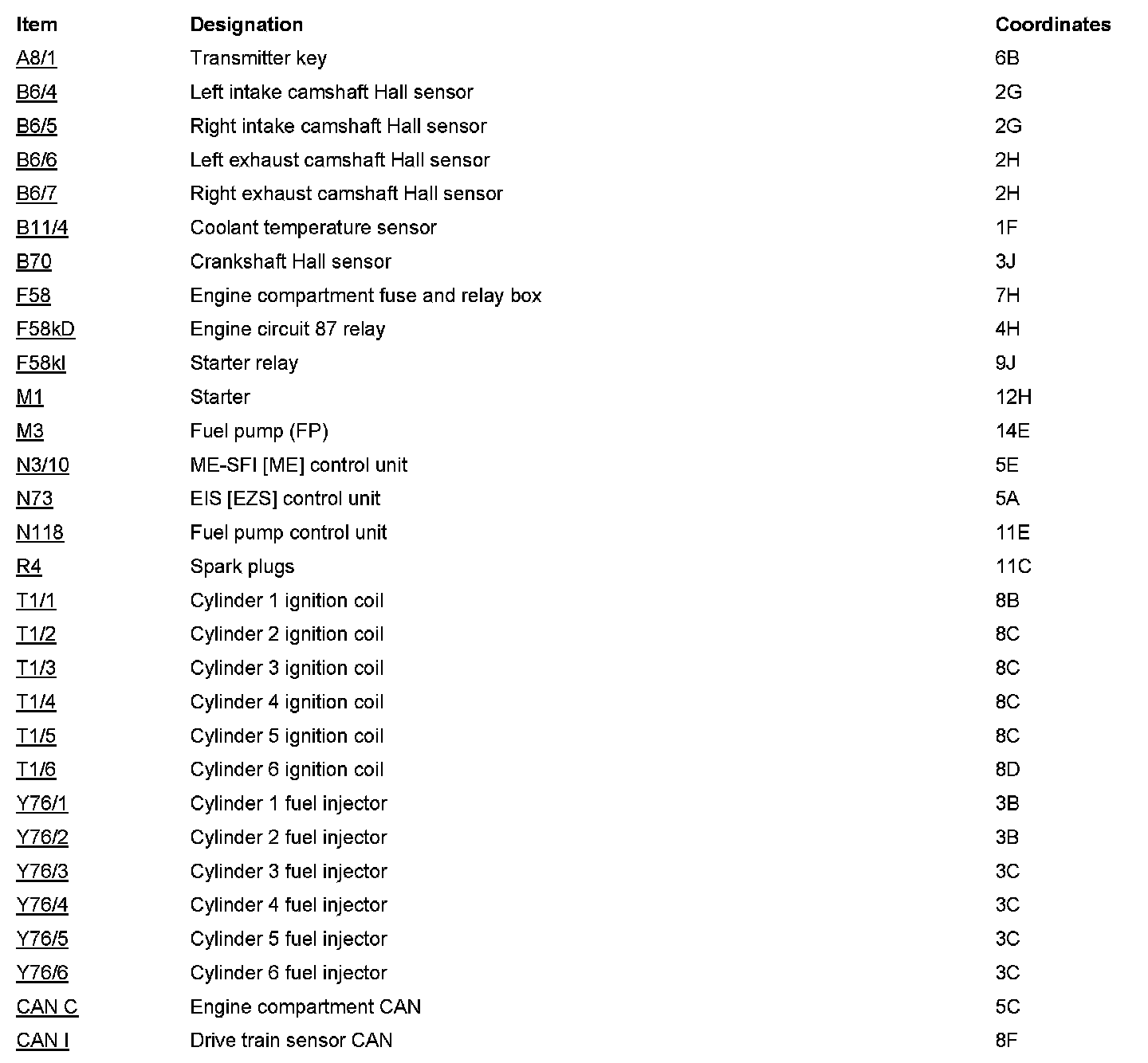

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Components
