AR35.10-P-0040-02RT Remove/Install Front Rubber Mount In Rear Axle Mount

AR35.10-P-0040-02RT Remove/install front rubber mount in rear axle mount

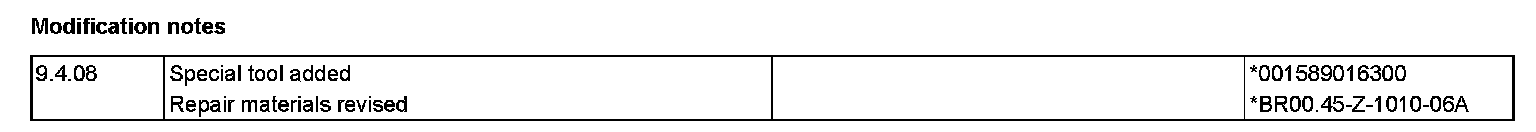

Modification Notes:

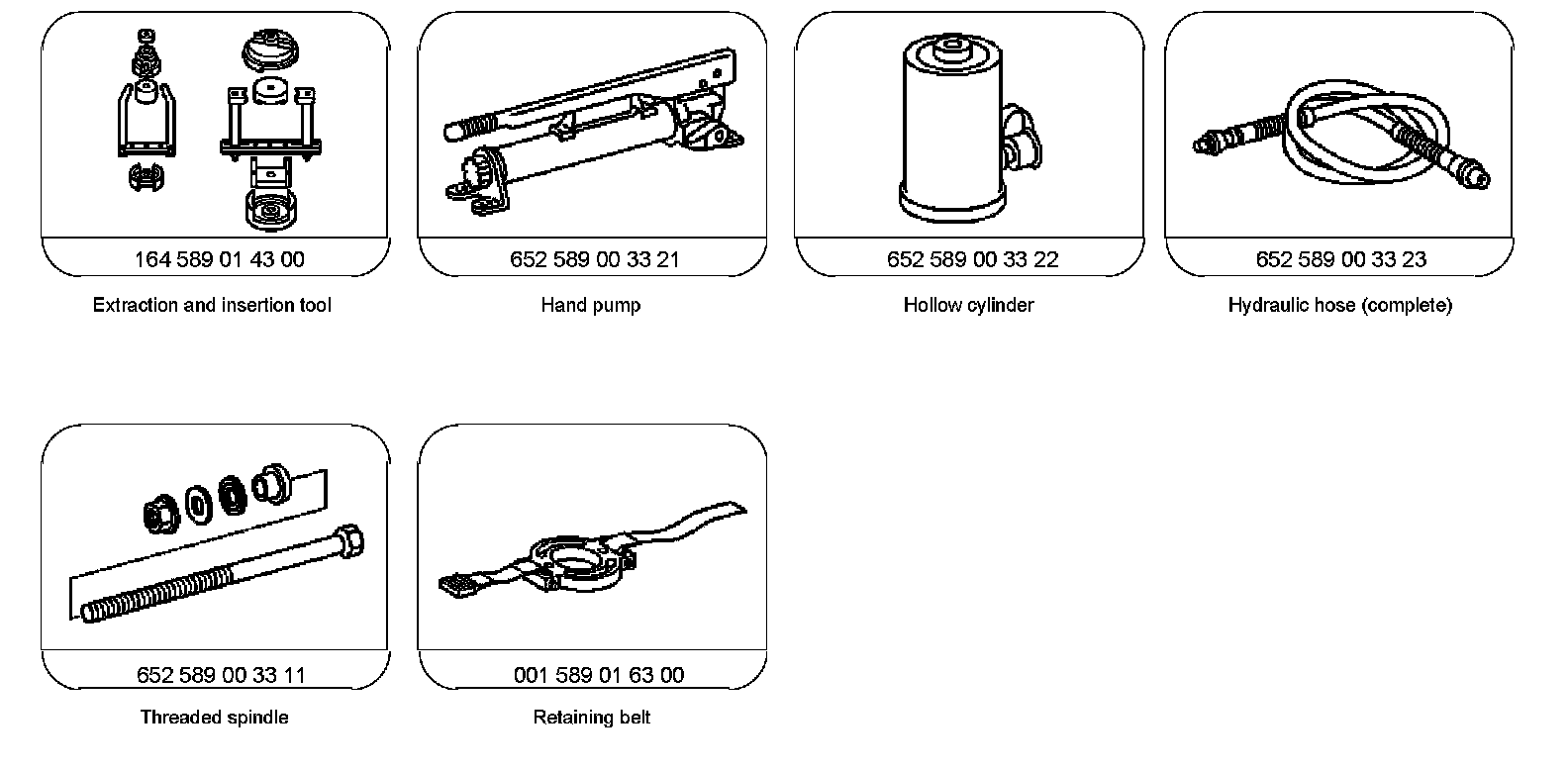

Special Tools:

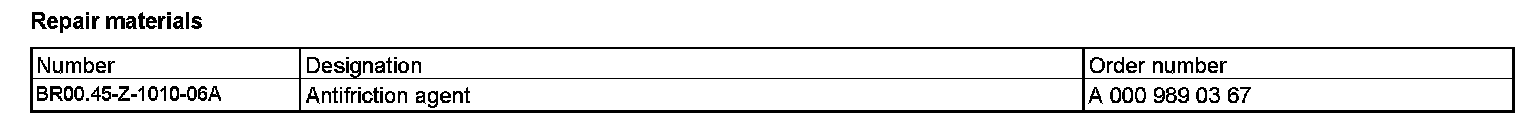

Repair Materials:

Component Identification:

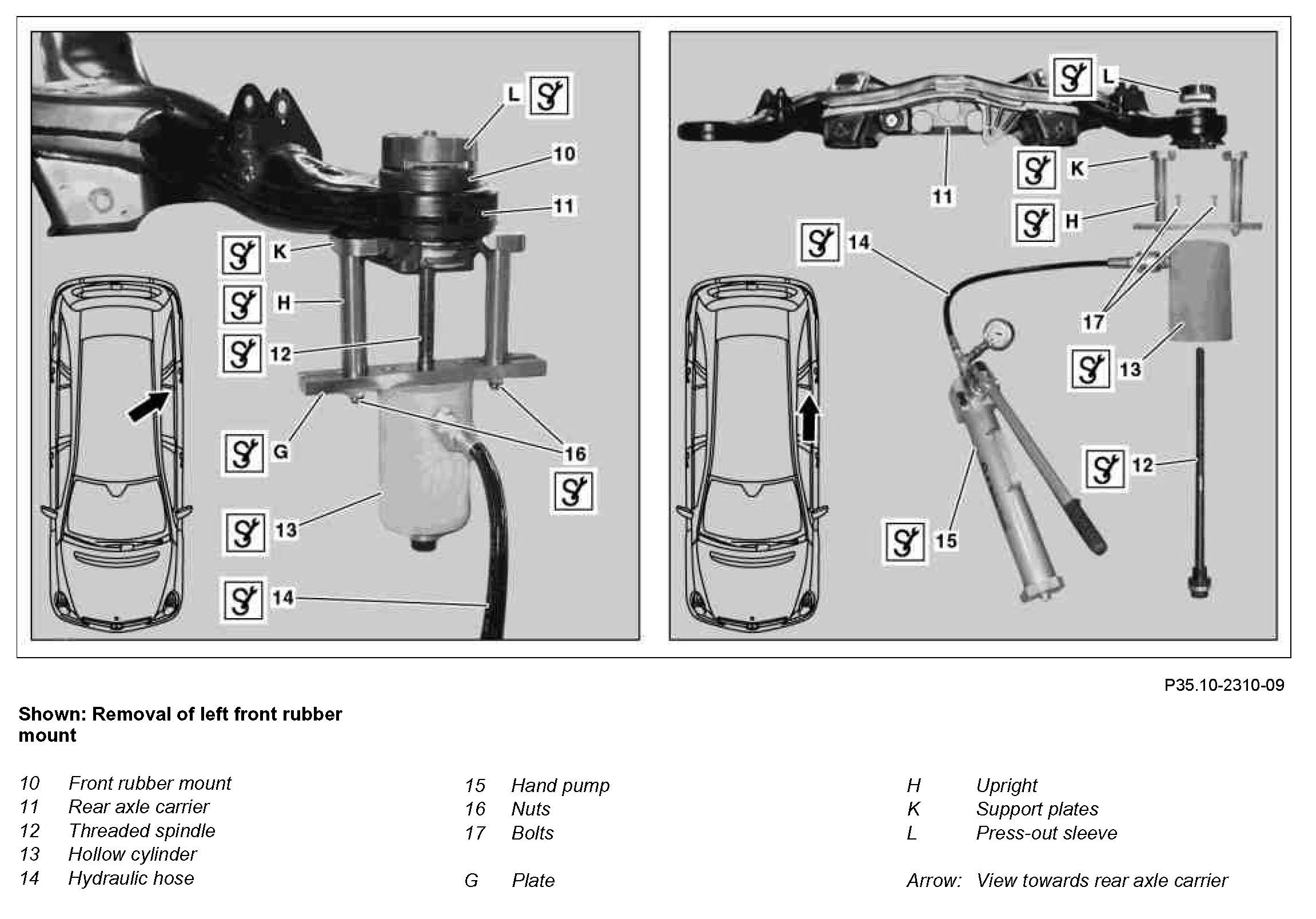

Removing
1 Assemble plate (G), upright (H) and support plates (K) with nut (16) and fasten with bolts (17) to the hollow cylinder (13).
2 Position support plates (K) on front rubber mount (10) and tighten nuts (16).
3 Feed the threaded spindle (12) through the hollow cylinder (13), the plate (G) and the front rubber mount (10) and screw on the press-out sleeve (L).

The notches on the press-out sleeve (L) must sit on the elevations on the front rubber mount (10).

4 Press out the front rubber mount (10).

The extraction tool must be held when pressing out otherwise it can fall.

The pressure in the hand pump (15) must not exceed 140 bar.

Component Identification:

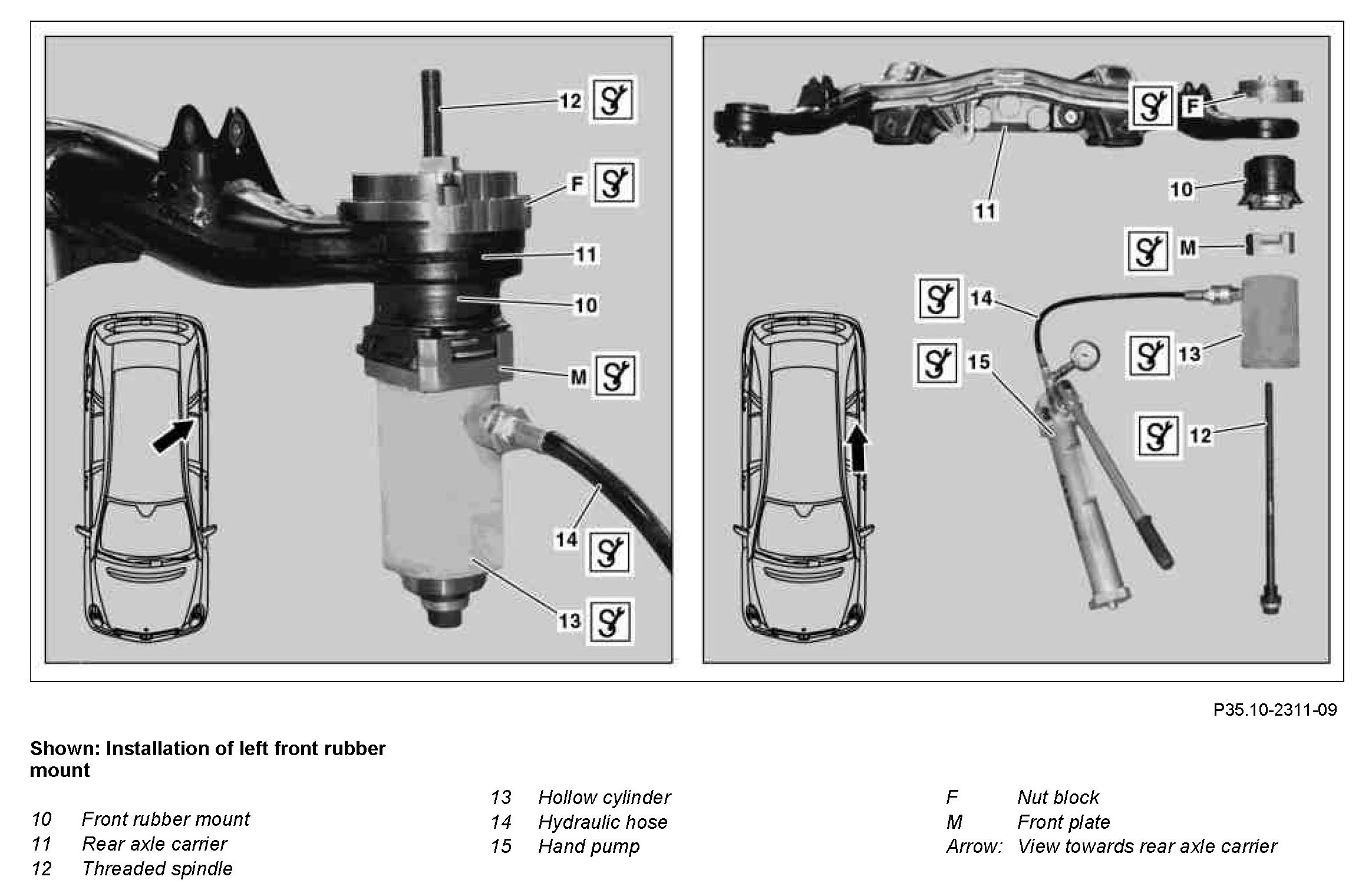

Install
5 Assemble hollow cylinder (13), hydraulic hose (14) and hand pump (15).
6 Fit front plate (M) and front rubber mount (10) on to the hollow cylinder (13).
7 Feed threaded spindle (12) through the hollow cylinder (13), front plate (M), front rubber mount (10) and the rear axle carrier (11), and screw on nut block (F).

Be careful when screwing on the nut block (F). Otherwise the paint work on the rear axle carrier (11) can be damaged.

8 Align front rubber mount (10) with markings and press in.

Use lubricant The pressure in the hand pump (15) must not exceed 140 bar.
