Home >> Mercedes Benz Truck >> 2012 >> R 350 4MATIC (251.157) V6-3.5L (276.958) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Front Door >> Front Door Panel >> Service and Repair

Front Door Panel: Service and Repair



AR72.10-P-1000RT Remove/Install Front Door Lining

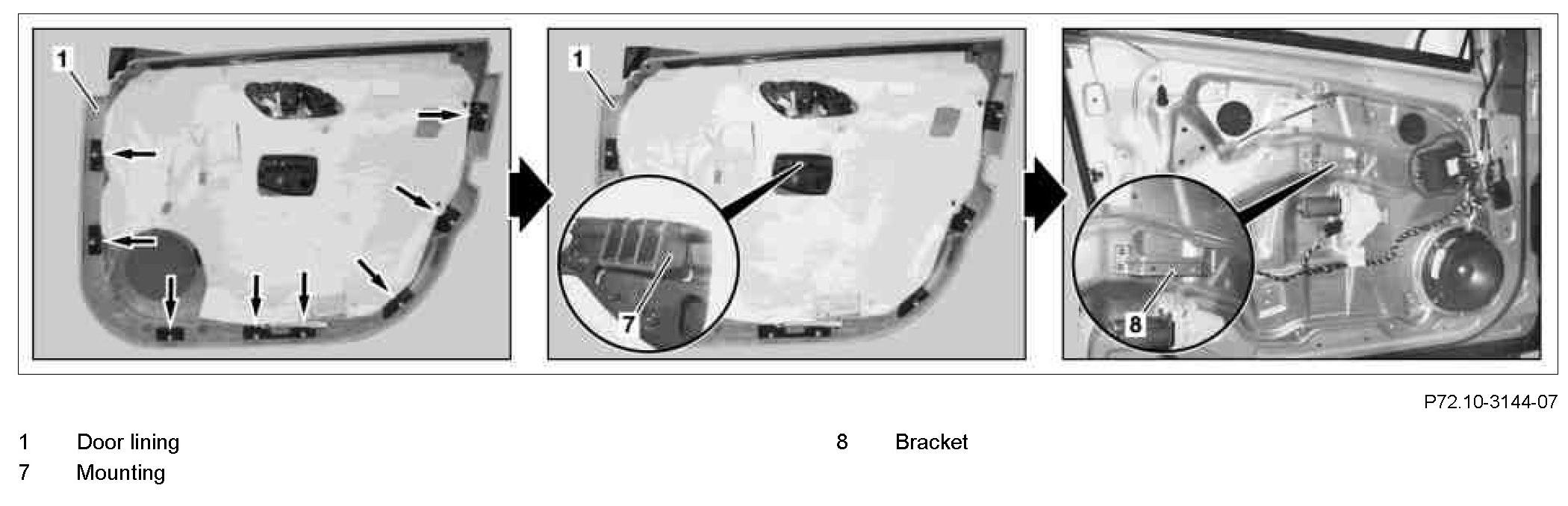

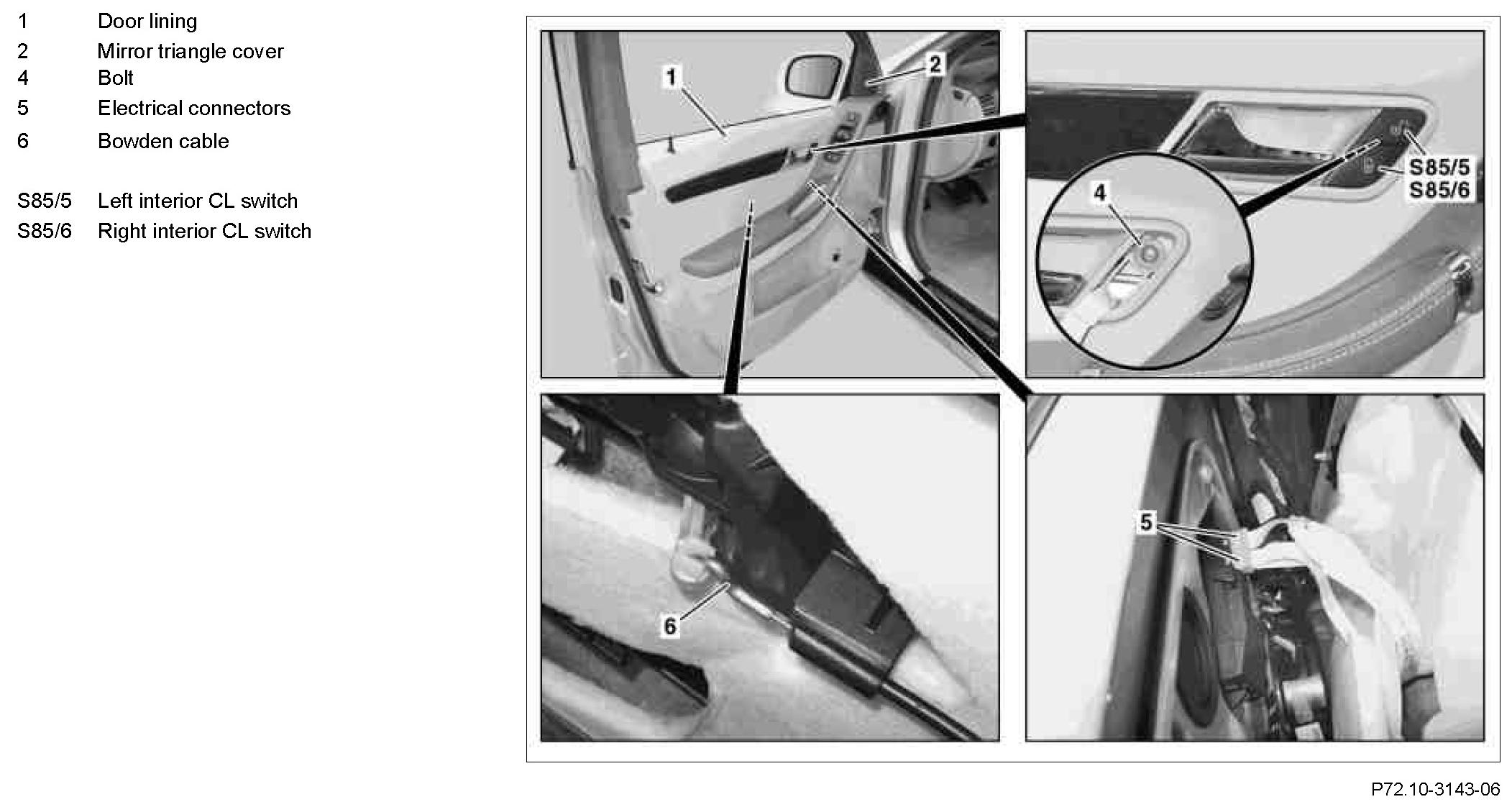

Component Identification:




Component Identification:

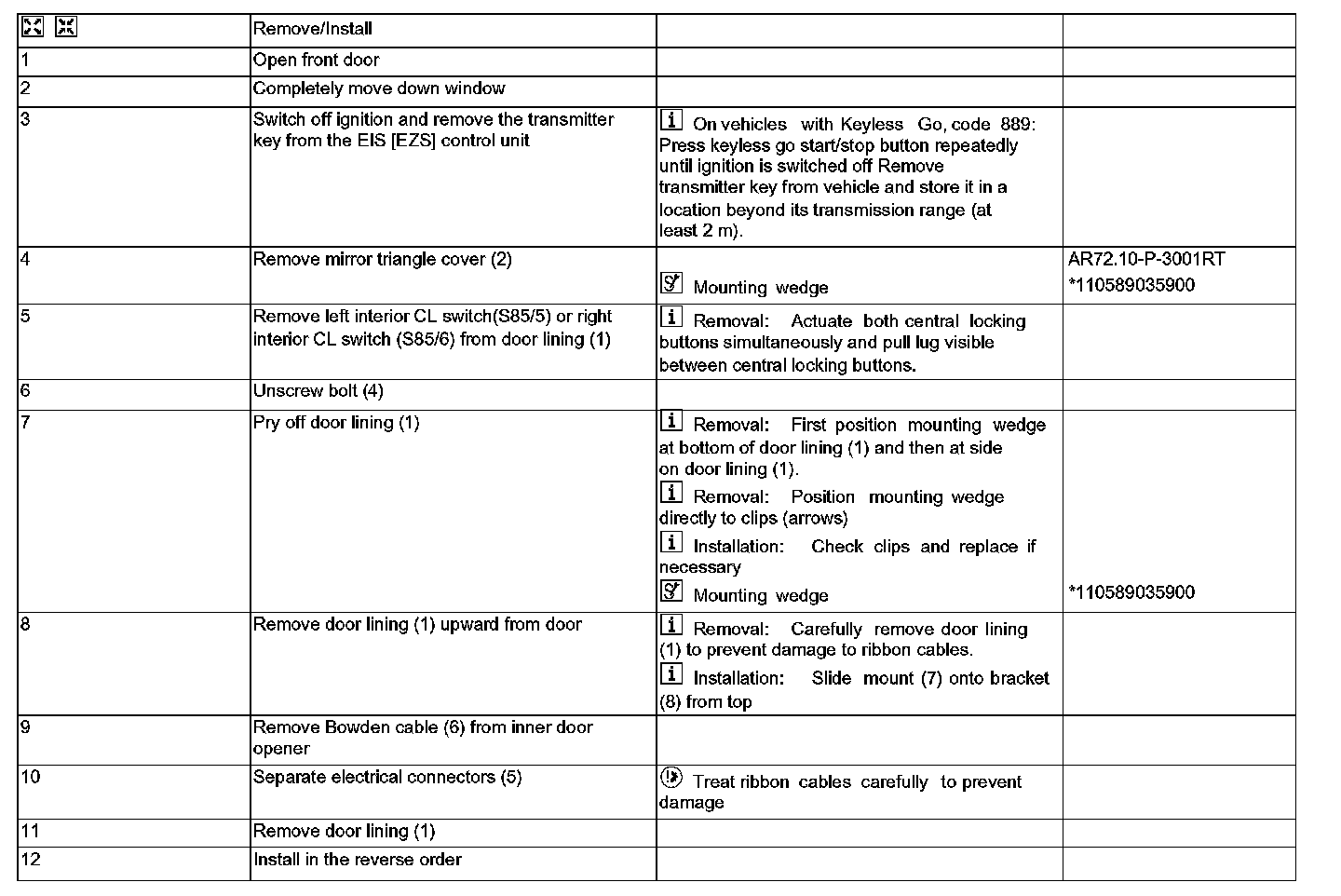

Steps 1 - 12:

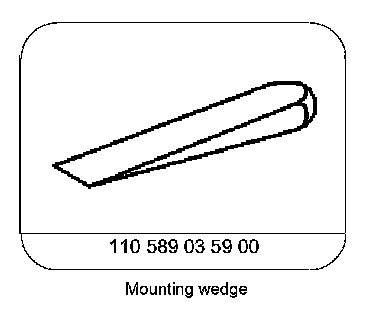

Special Tools:
