AR82.70-P-0010GZ Remove/Install E-Net Compensator



AR82.70-P-0010GZ Remove/Install E-net Compensator
- with CODE (386) Preinstallation for telephone "Cell phone", UPCI [UHI] system

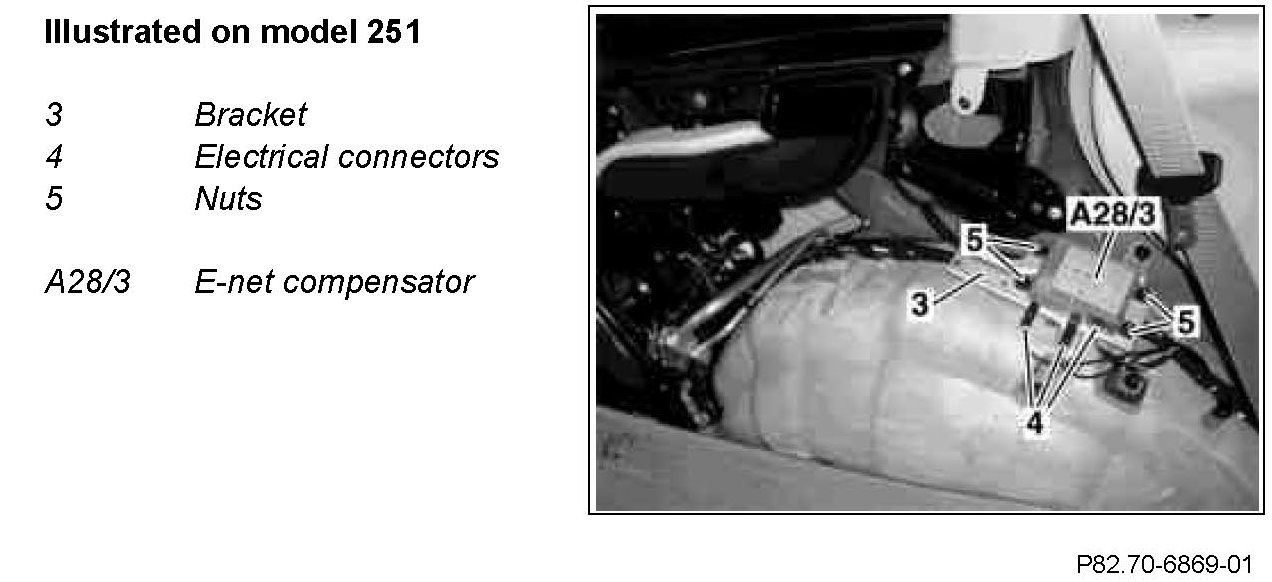

Component Identification:

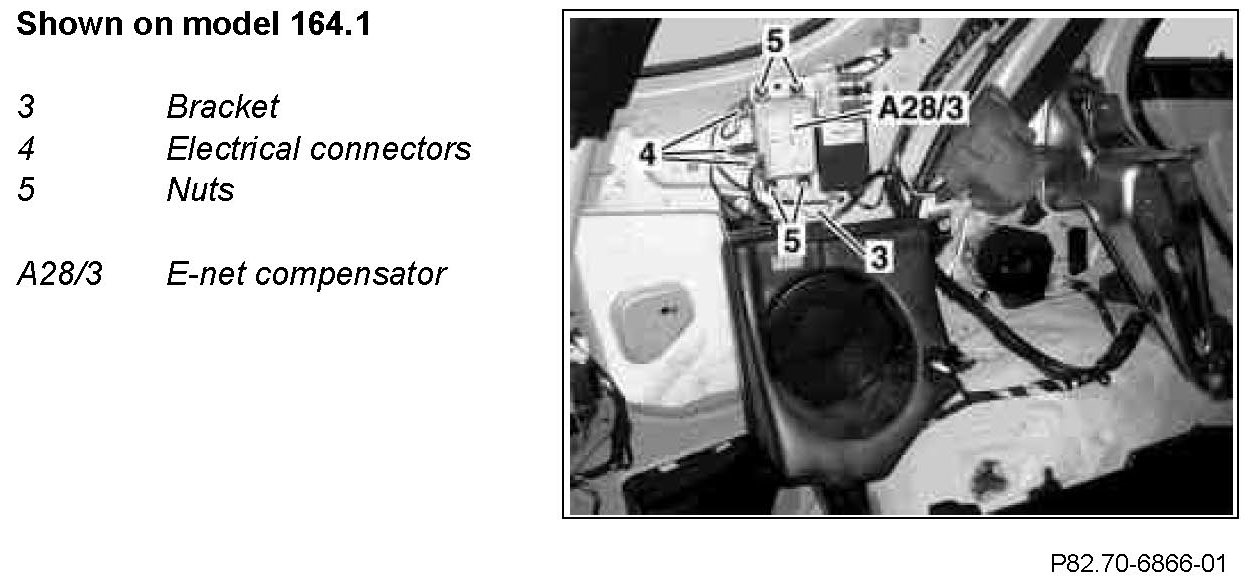

Component Identification:

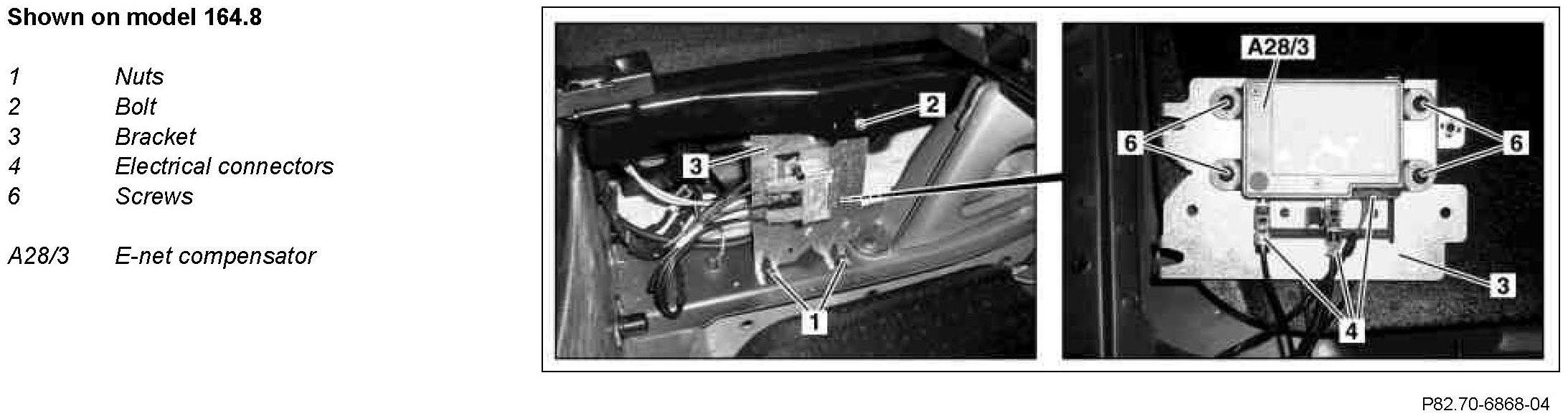

Component Identification:

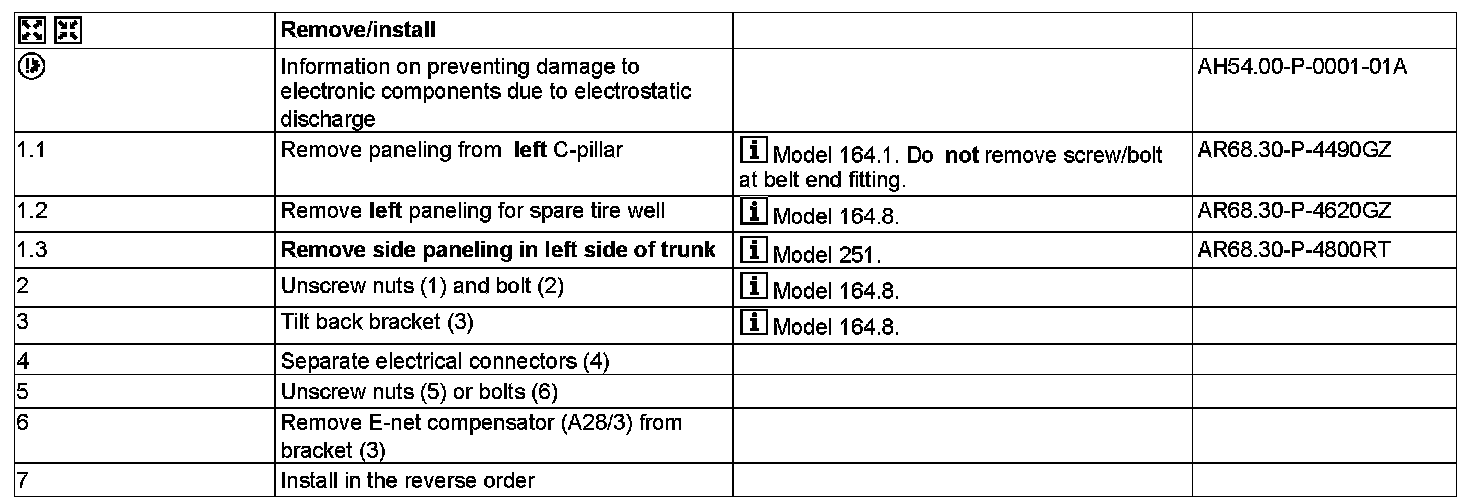

Steps 1.1 - 7:
