FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz Truck
>>
2012
>>
R 350 4MATIC (251.157) V6-3.5L (276.958)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Alarm Horn
>>
Service and Repair
Alarm Horn: Service and Repair
AR80.50-P-9840RT Remove/Install ATA Alarm Signal Siren

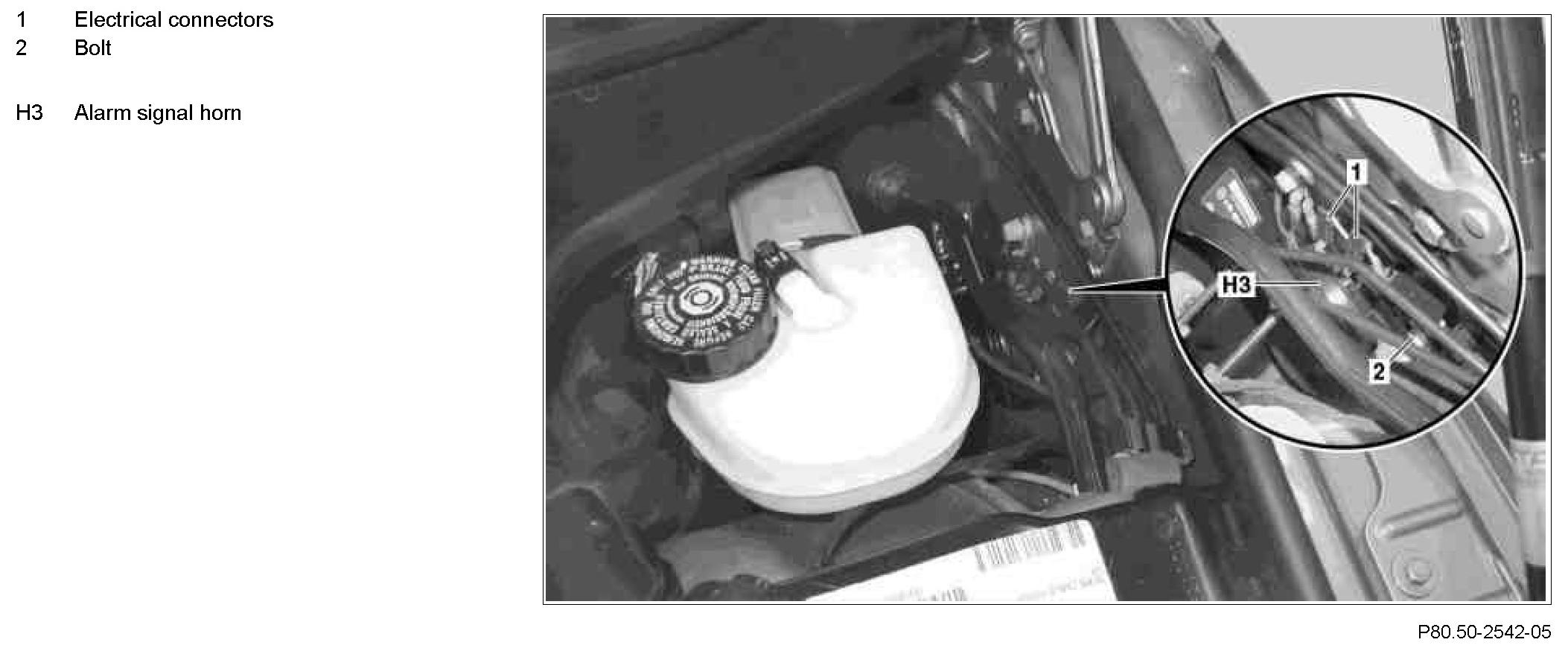

Component Identification:

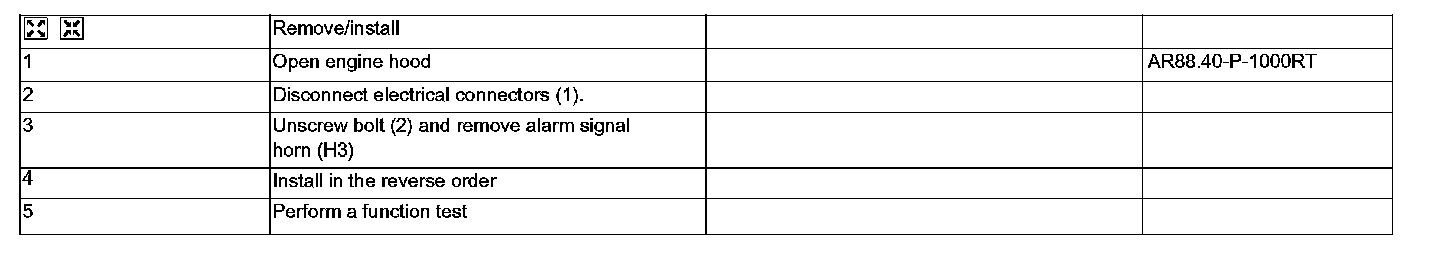

Steps 1 - 5:
