Mercedes Benz Truck
>>
2012
>>
ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Wiper Arm
>>
Service and Repair
>>
AR82.30-P-6910GZ Remove/Install Tailgate Wiper Arm
AR82.30-P-6910GZ Remove/Install Tailgate Wiper Arm
AR82.30-P-6910GZ Remove/Install Tailgate
Wiper Arm

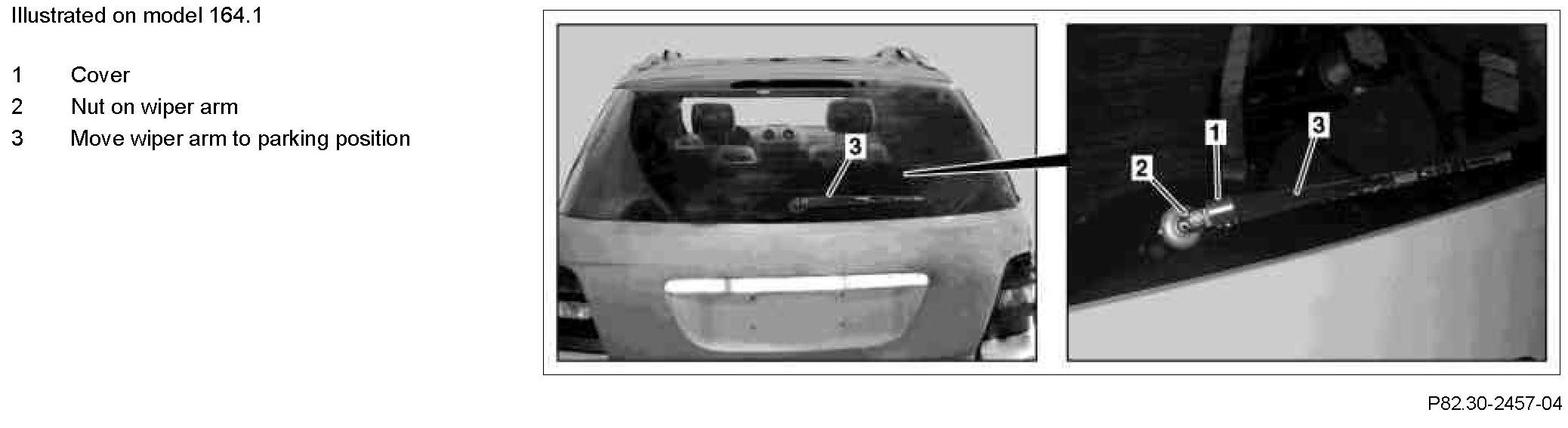

Component Identification:

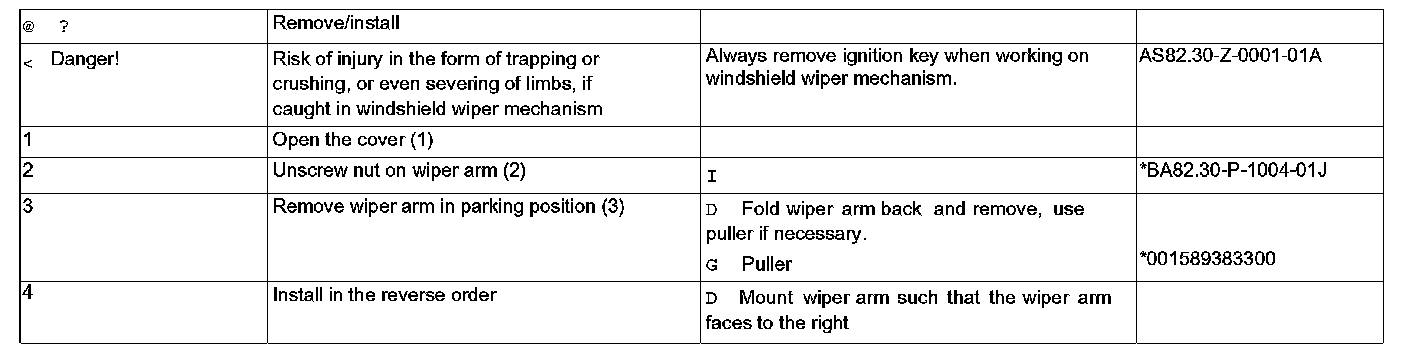

Steps 1 - 4:

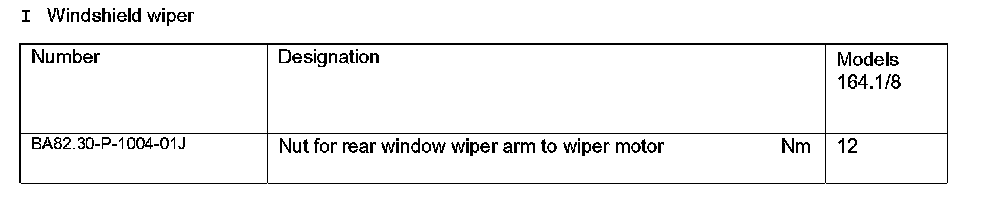

Windshield Wiper:

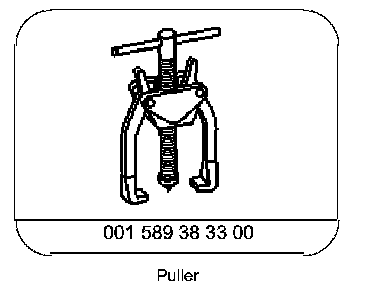

Special Tools:
