AR82.30-P-6000GZ Check Wiper Arms and Adjust



AR82.30-P-6000GZ Check Wiper Arms And Adjust

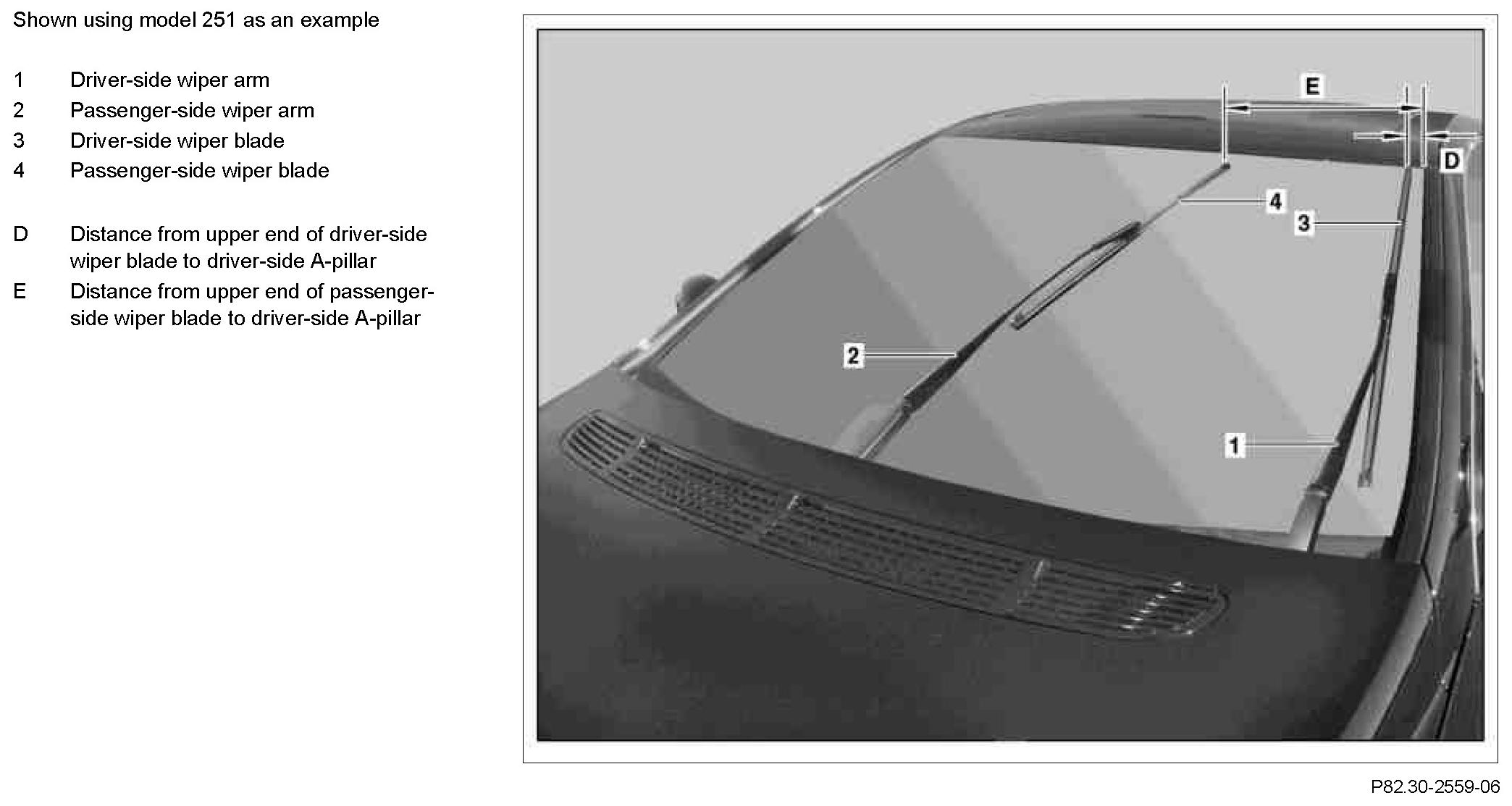

Component Identification:

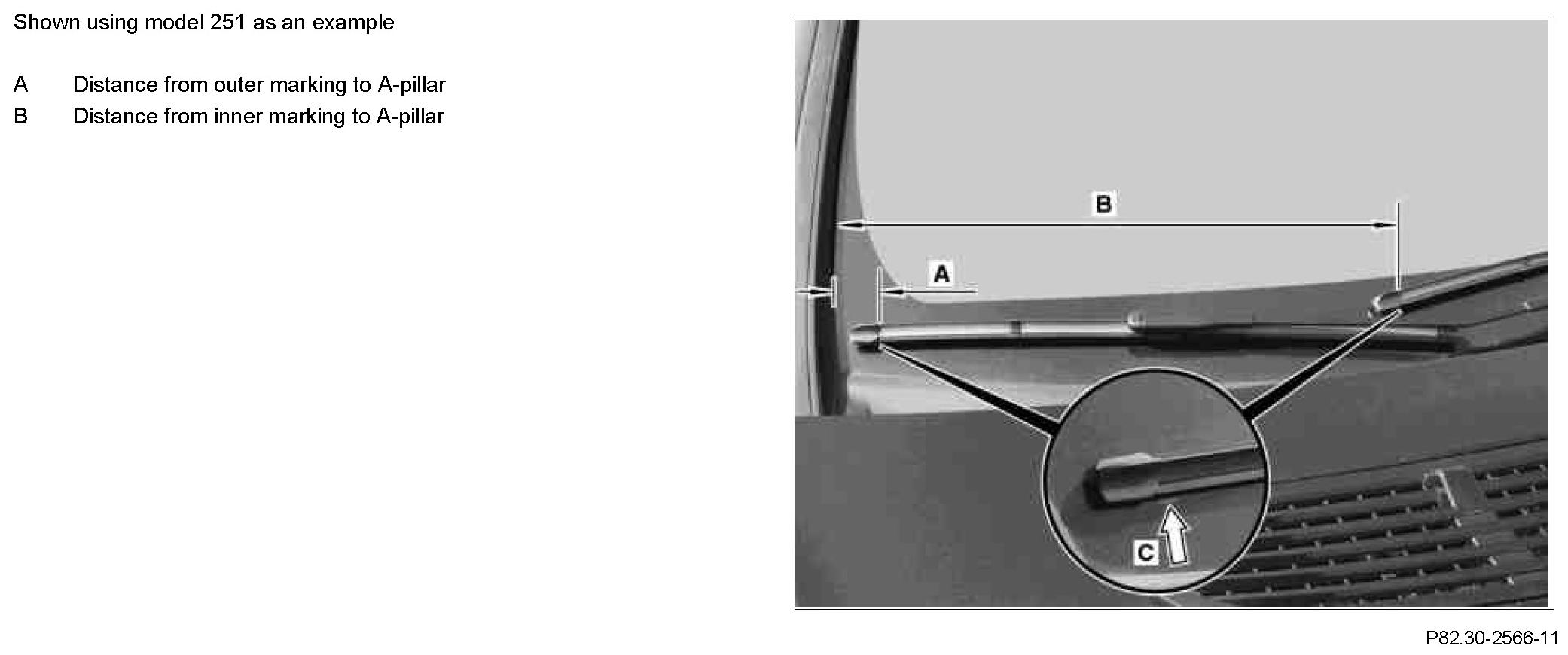

Component Identification:

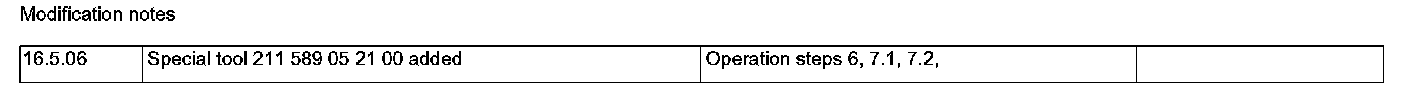

Modification Notes:

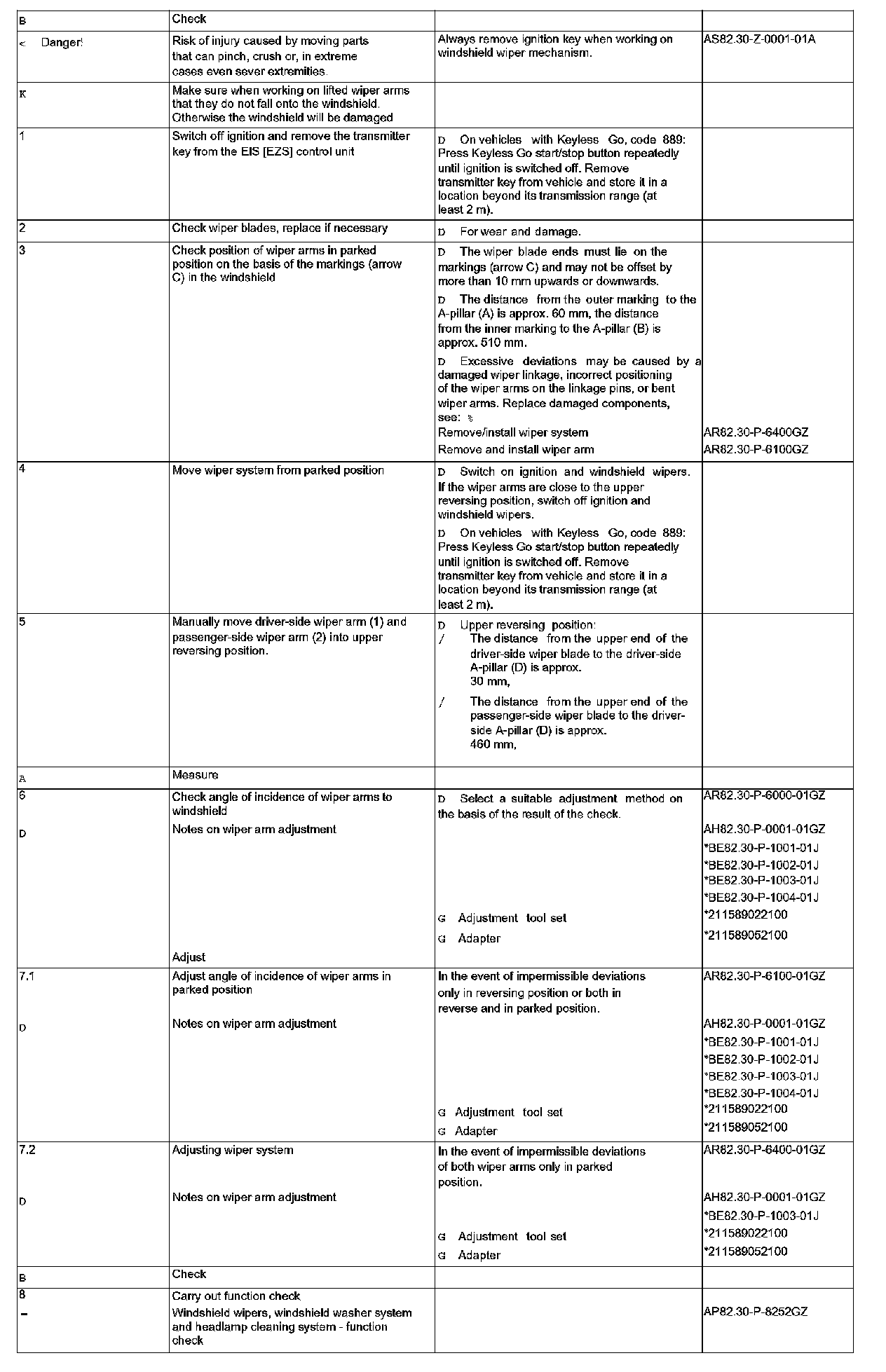

Steps 1 - 8:

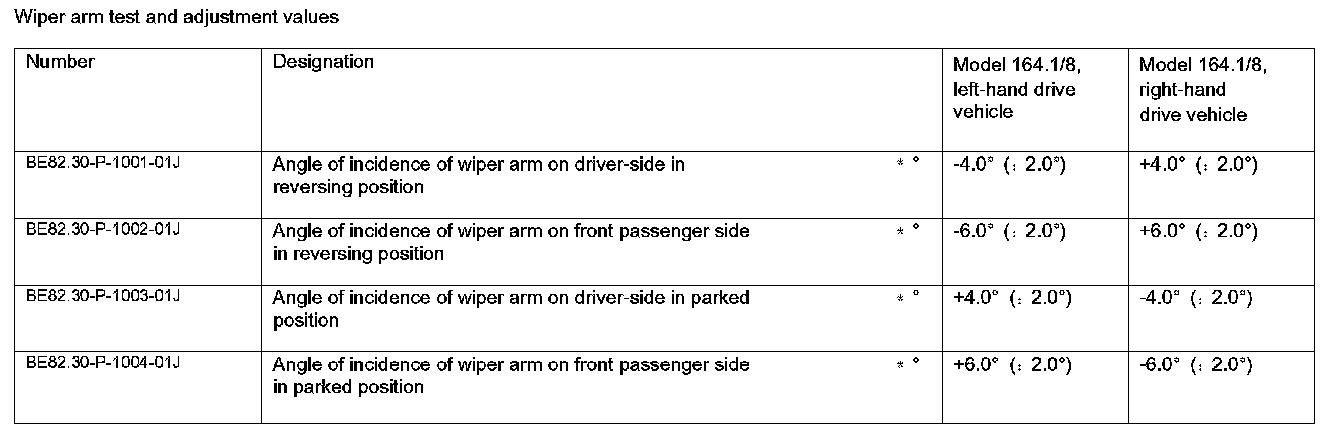

Wiper Arm Test And Adjustment Values:

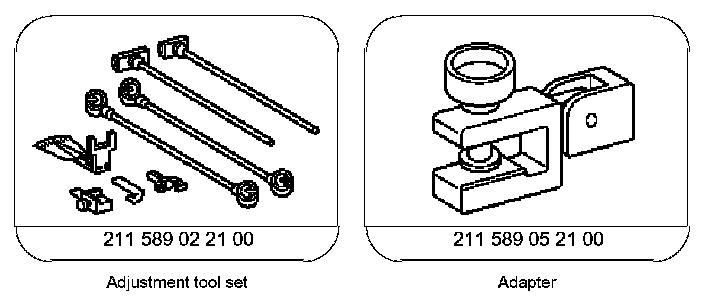

Special Tools:
