Wiper and Washer Systems: Testing and Inspection

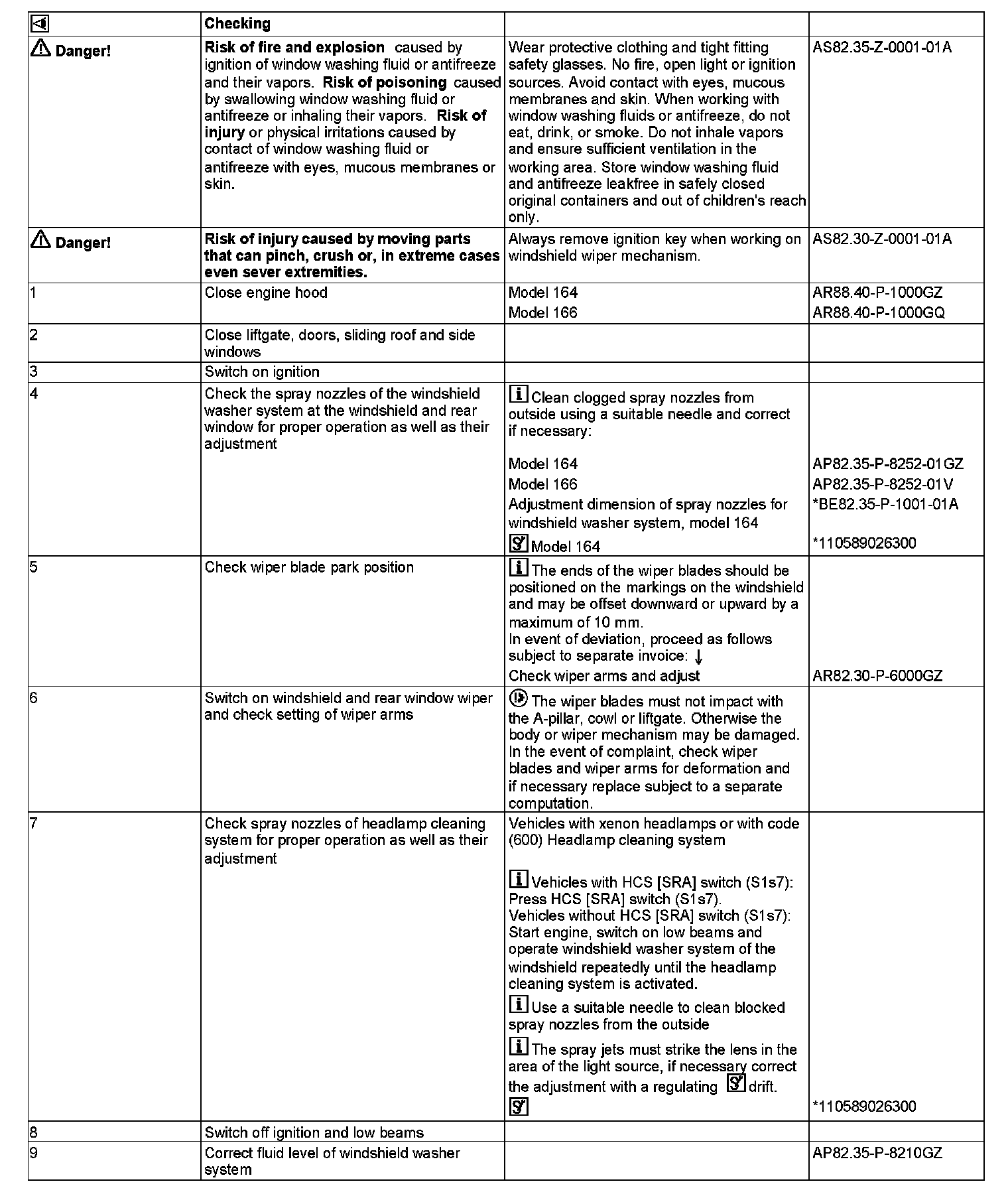

AP82.30-P-8252GZ Windshield Wipers, Windshield Washer System and Headlamp Cleaning System - Function Check
MODEL 164, 166

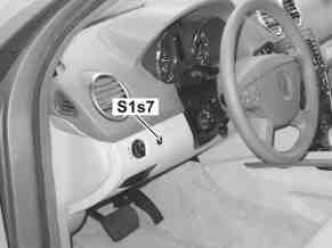

Shown on model 164
S1s7 HCS [SRA] switch











110 589 02 63 00
Adjusting tool
