AR67.10-P-1503-01RT Install Windshield

AR67.10-P-1503-01RT Install Windshield

Workshop Equipment:

Install windshield on adhesive bead within 5 minutes of applying adhesive to body before adhesive force of glue starts decreasing.

Engine hood must be closed.

1. Center windshield above body opening with aid of helper.
2. Check alignment of windshield again and carefully reposition if necessary.

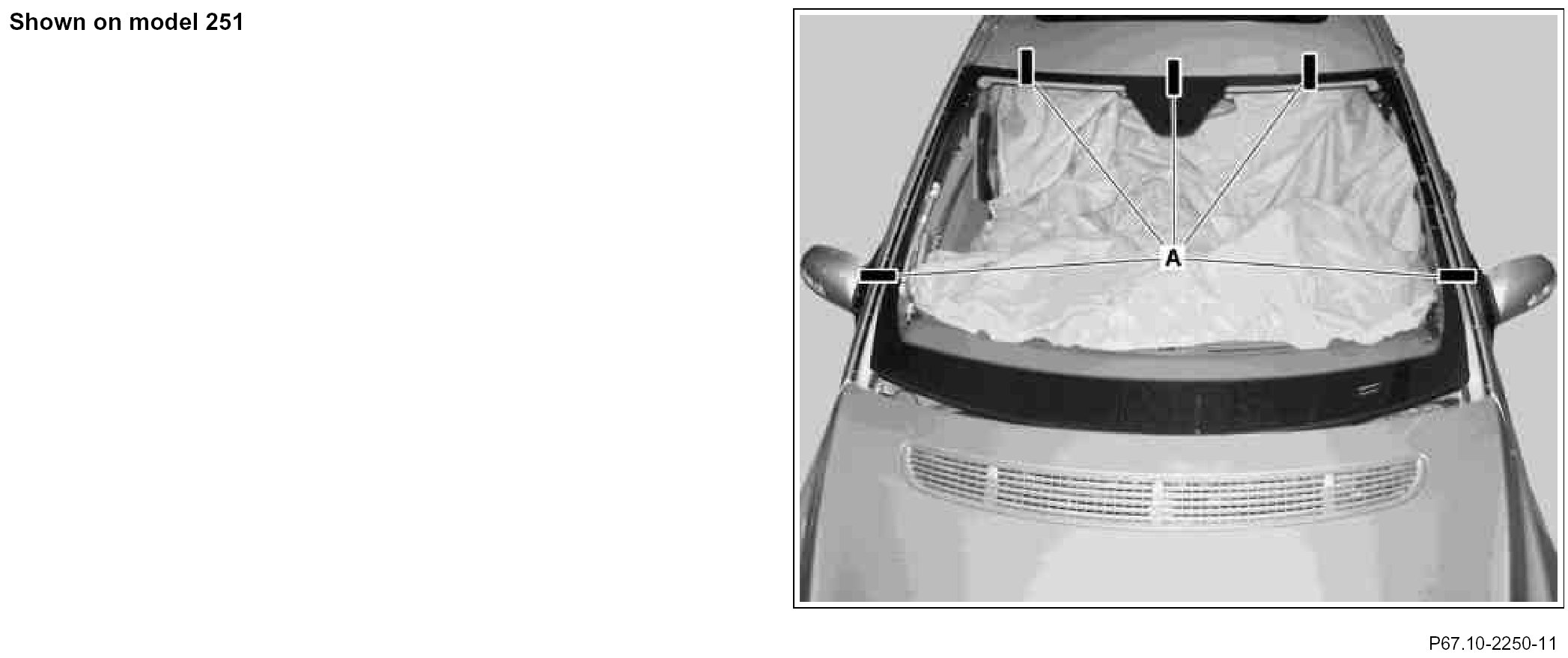

3. Secure windshield against slipping using fabric adhesive tape in area A.
Remove contamination caused by the adhesive immediately.

4. Carefully remove cup suction tool.
