AR67.10-P-1501-01RT Prepare Body Flange For Installation of Window

AR67.10-P-1501-01RT Prepare Body Flange For Installation Of Window

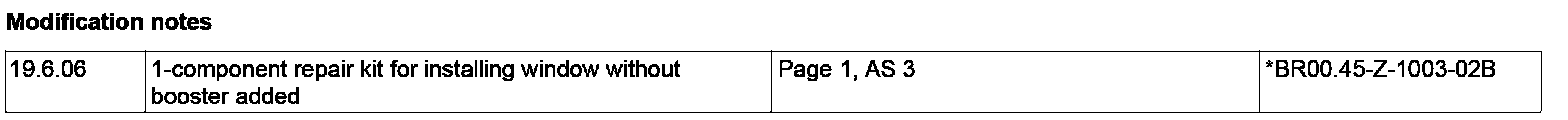

Modification Notes:

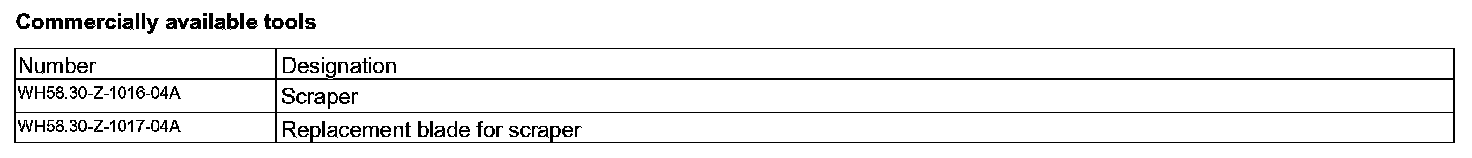

Commercially Available Tools:

Workshop Equipment:

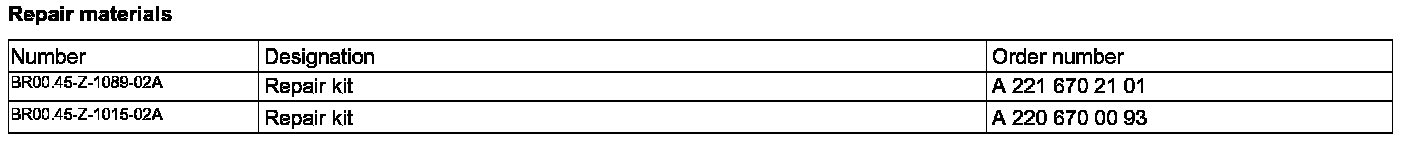

Repair Materials:

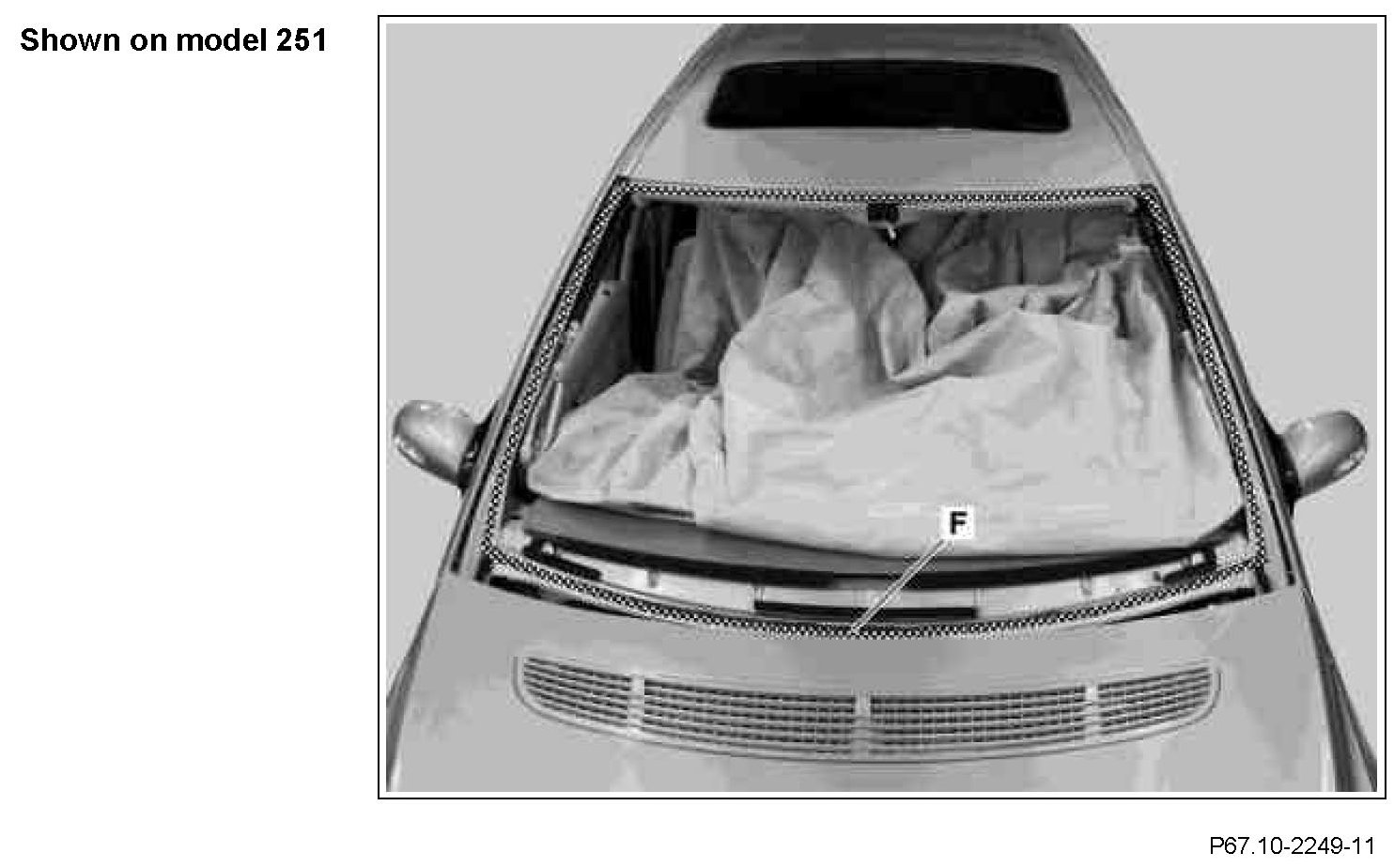

Wear cotton gloves. Ensure that no fingerprints are present in the area of the bonding surface (area F). To prevent adhesion problems when installing the window, keep the bonding surface free of dust, oil, grease, wax, dirt residues and other adhesive substances.

1. Cut down existing glue bead on body flange to a height of approx. 1 to 2 mm.
Do not leave more than 2 mm of the existing glue bead. Pull off loose parts of existing glue bead (remaining pieces which are not completely cut off).

2. Clean repair area with wet/dry vacuum cleaner.
3. Clean bonding surface (area F) on body flange with cleaner from 2-component repair kit or 1-component repair kit for glazing bonded windows and rub dry with rag.
4. If glue bead on body flange is damaged or missing, apply primer in area to be glued using application rod provided. Then allow primer to air-dry completely (min. 10 min.)
5. Repair paint damage at body flange with primer applicator
