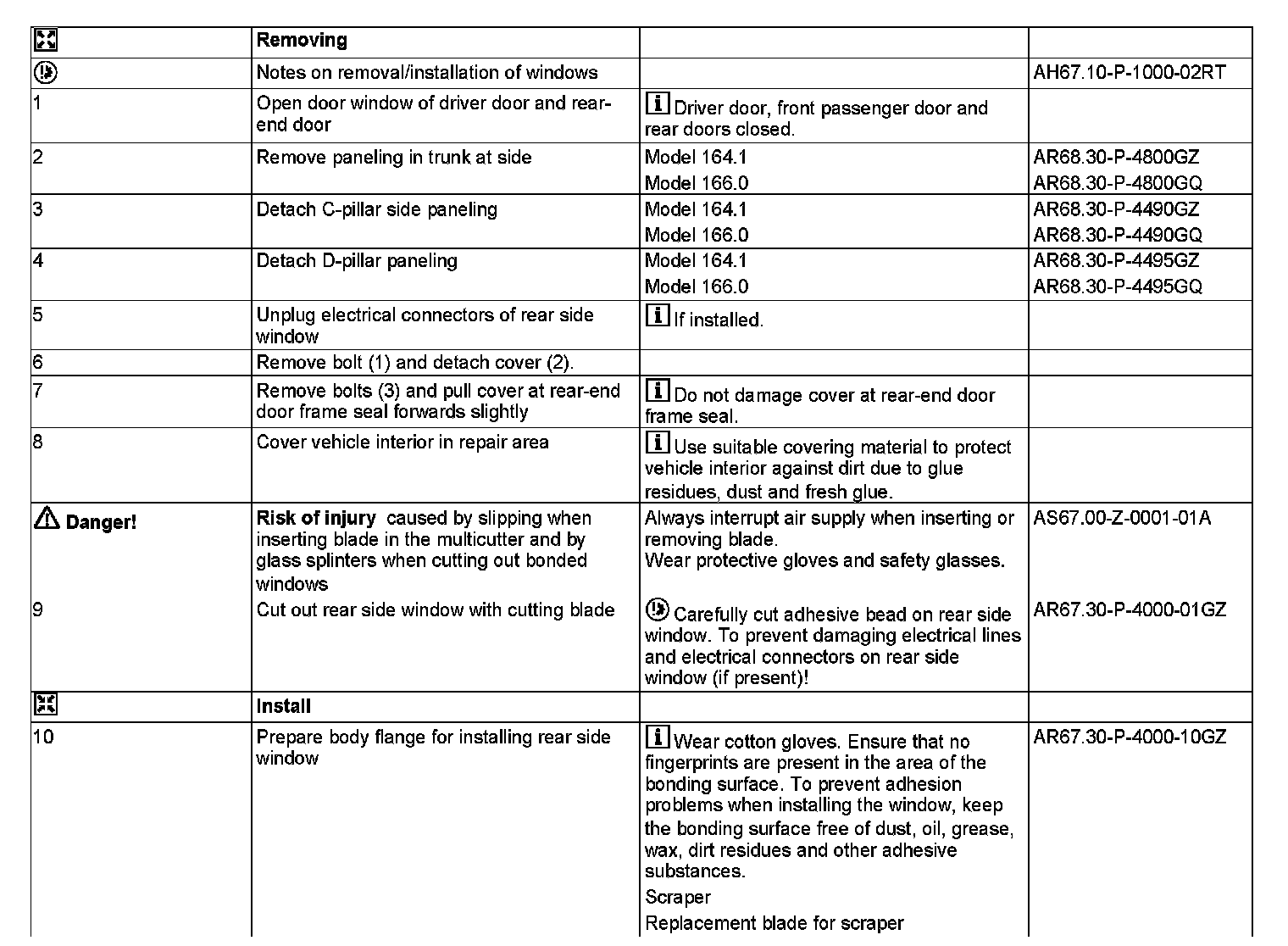

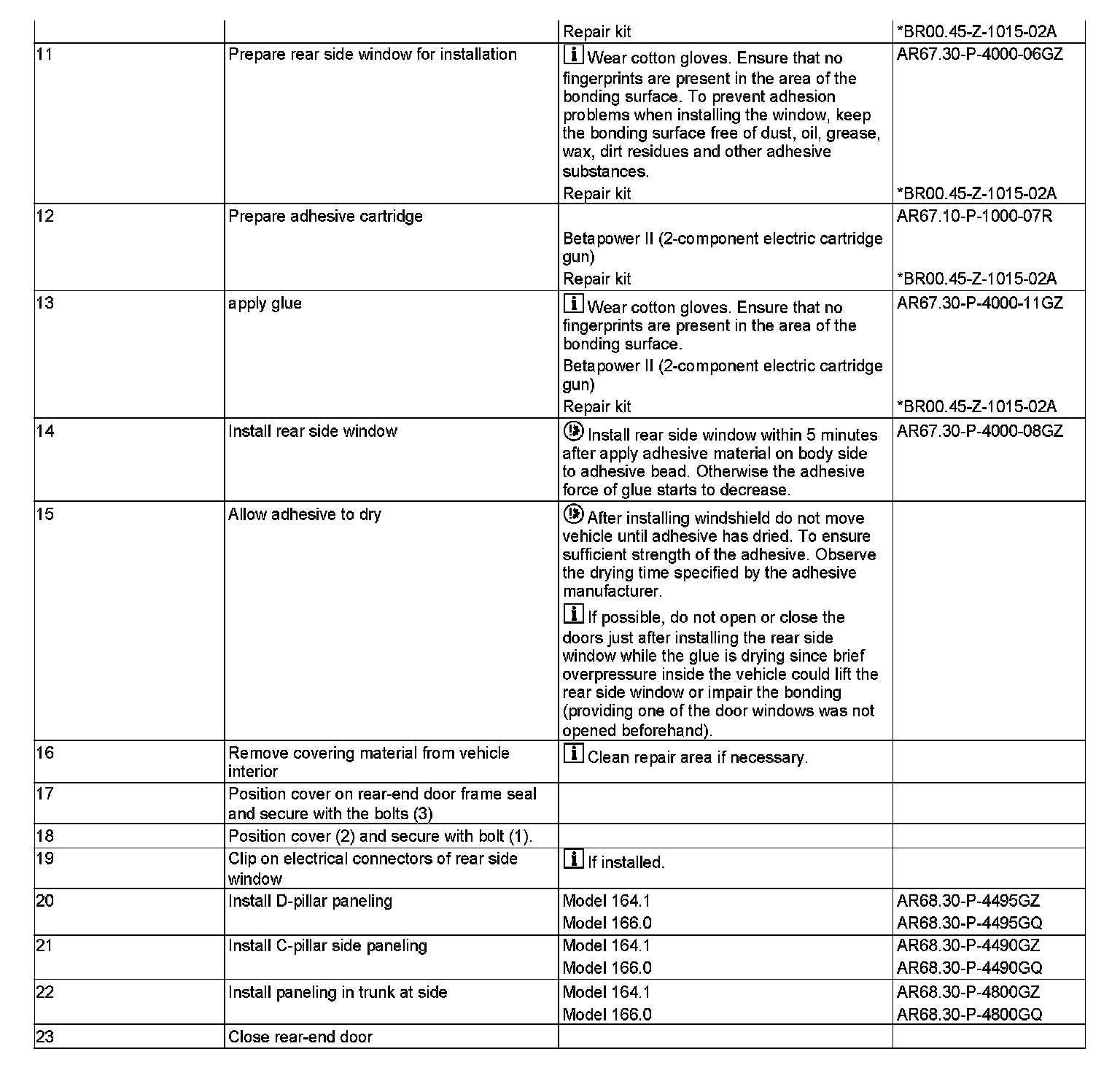

AR67.30-P-4000GZ Remove/Install Rear Side Window




AR67.30-P-4000GZ Remove/Install Rear Side Window
MODEL 164.1, 166.0

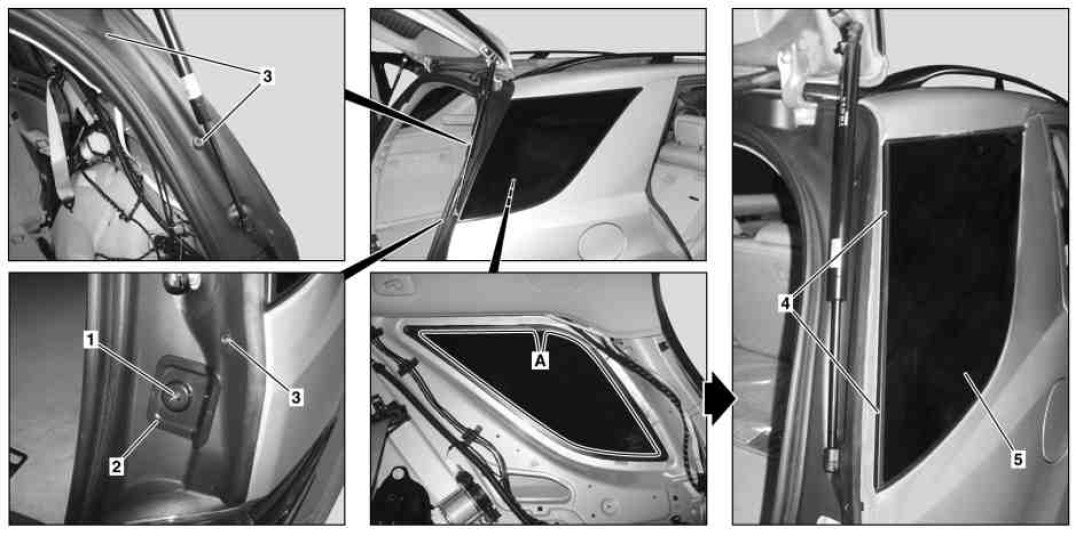

Shown on model 164.1

1 Screw
2 Cover
3 Bolts
4 Clips
5 Rear side window
