AR67.30-P-4000-11GZ Apply Glue

AR67.30-P-4000-11GZ Apply Glue

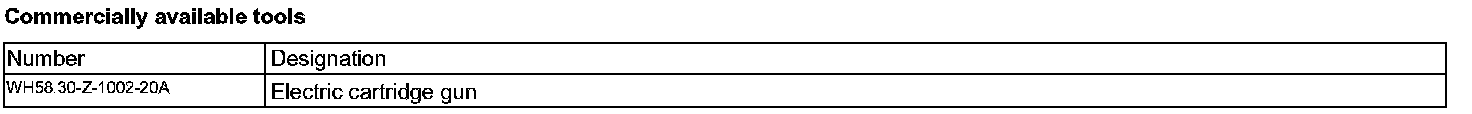

Commercially Available Tools:

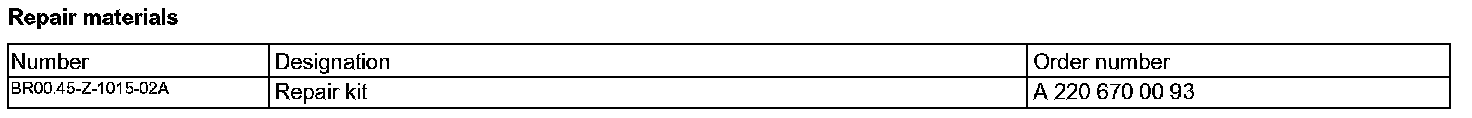

Repair Materials:

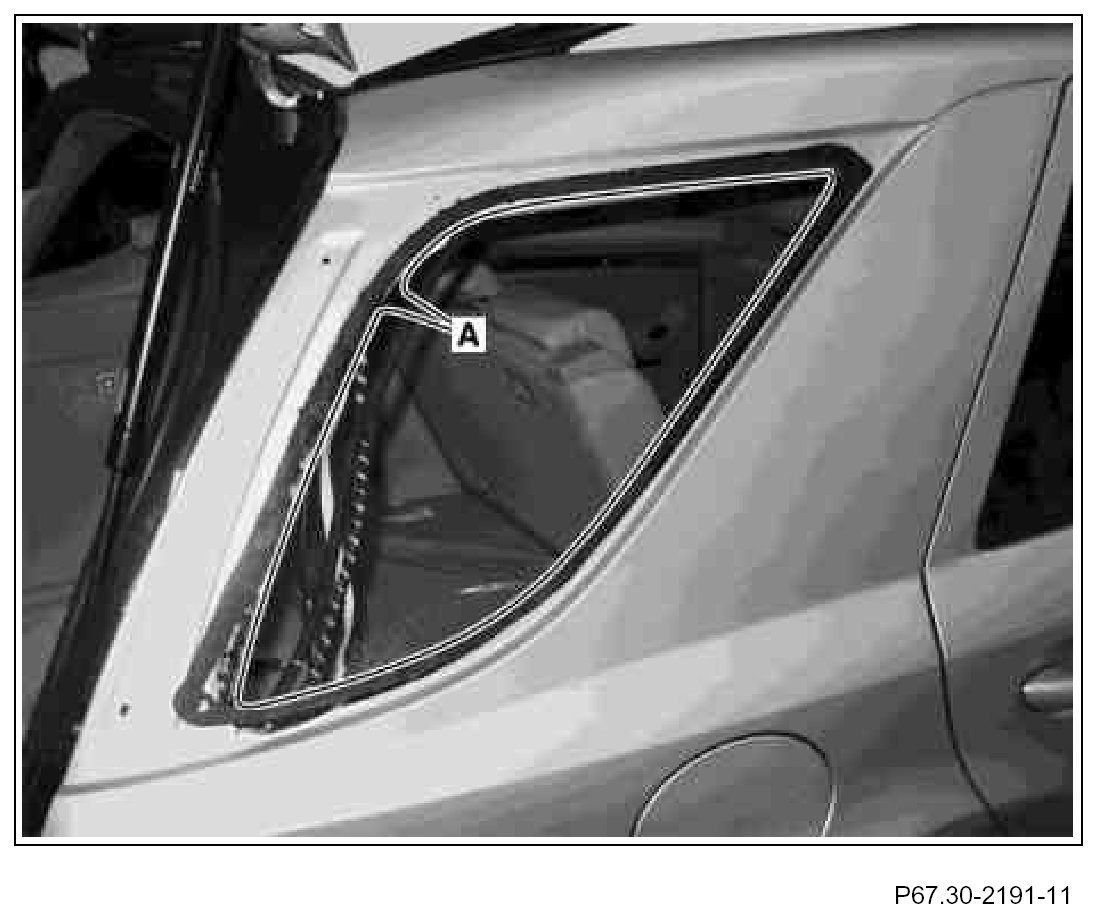

Wear cotton gloves. Ensure that no fingerprints are present in the area of the gluing surface (area A).

1. Cut triangular opening of cartridge tip so that glue can be applied with a height of approx 14 mm and a width of approx. 8 mm.
2. Guide cartridge tip along body flange in area A and simultaneously press out glue uniformly.
Remove contamination caused by the adhesive immediately. Completely remove excess glue from cartridges immediately after applying glue and dispose of glue as per local regulations.
