AR67.20-P-3550-05GZ Install Window

AR67.20-P-3550-05GZ Install Window

Workshop Equipment:

1. Center rear-end door window above window cutout with aid of second mechanic and position so that window and window cutout overlap.
2. Fit rear-end door window at top on glue bead and align, lower window, position on glue, center and press on until rear-end door window makes firm contact.

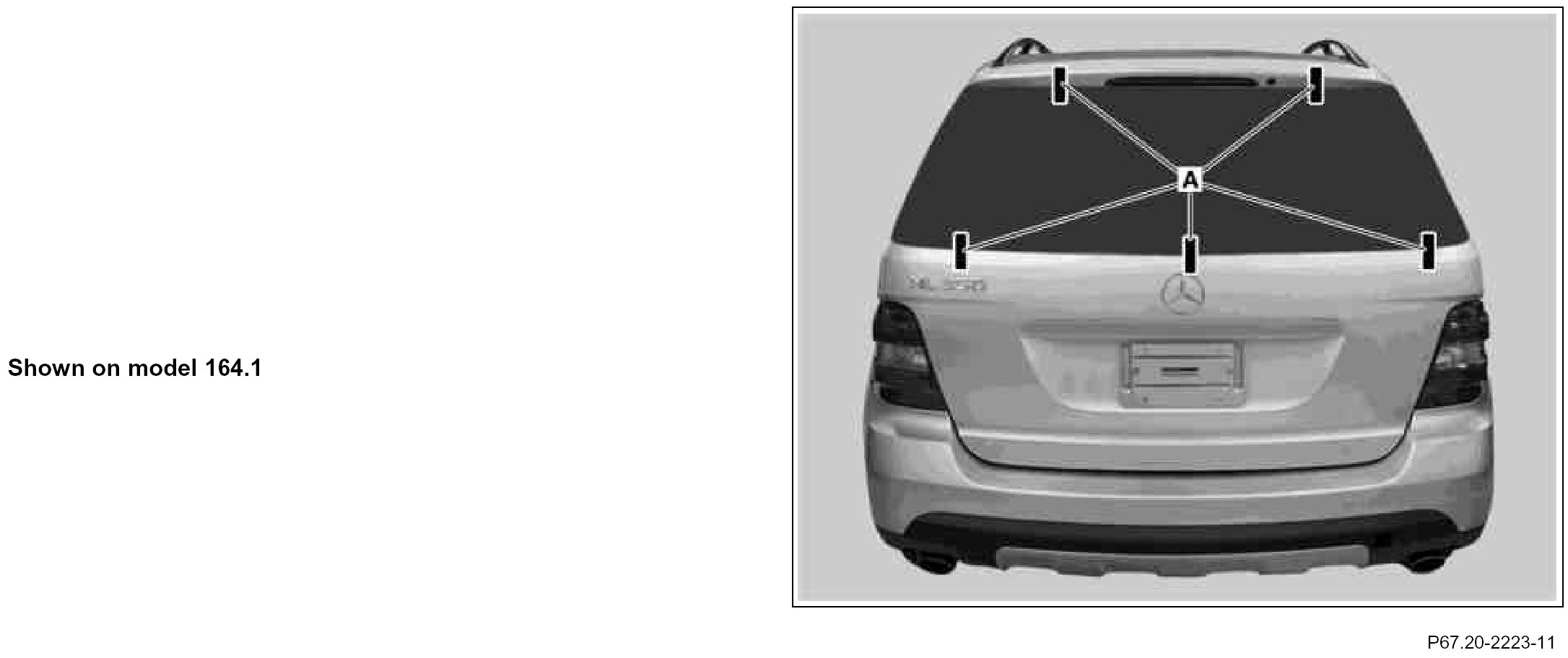

3. Secure rear-end door window against slipping using fabric tape in area A.
Install rear-end door window within 5 minutes of applying glue bead before adhesive force of glue starts decreasing.
The curing time (waiting time) is approx. 1 hour from the time the rear-end door window is installed.
