AR67.20-P-2000-09GZ Prepare Body Flange on Rear Window For Installation

AR67.20-P-2000-09GZ Prepare Body Flange On Rear Window For Installation

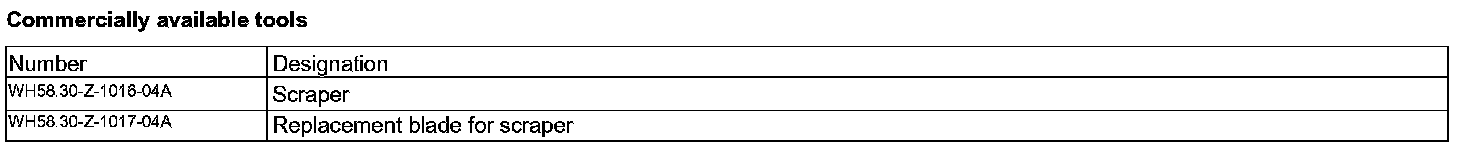

Commercially Available Tools:

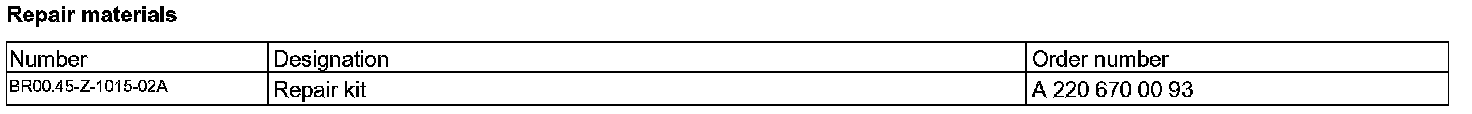

Repair Materials:

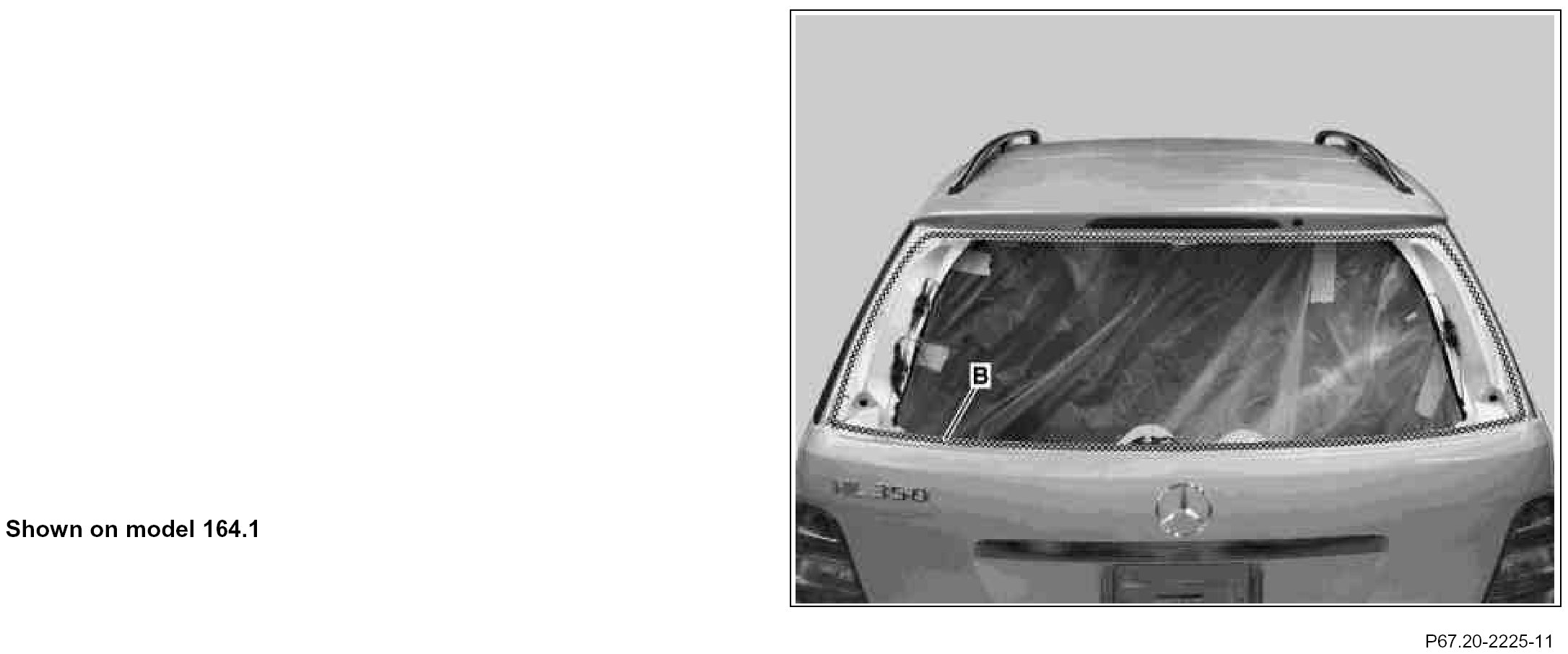

Wear cotton gloves. Ensure that no fingerprints are present in the area of the adhesive surface (area B).

1. Cut glue residues on body flange down to a height of approx. 1 mm to 2 mm.
A maximum of 2 mm of glue residue may be left. Pull off loose adhesive material (remaining pieces which are not completely cut off).

2. Clean painted adhesive surface (area B) on body flange of rear-end door with cleaner from 2-component repair kit for installing glued windows and dry with drying cloth.
3. Remove loose glue residues from body flange.
If glue residues are damaged or missing on the body flange, apply primer in area to be glued. Then allow primer to air-dry completely (min. 10 min.)

4. Repair paint damages on body flange not covered by glue with primer pin.
To avoid poor adhesion when installing window, adhesive surfaces of body flange of rear-end door must be free of dust, oil, grease, wax, dirt residues and other anti-adhesive components.
