AR67.20-P-2000-08GZ Apply Glue to Rear Window

AR67.20-P-2000-08GZ Apply Glue To Rear Window

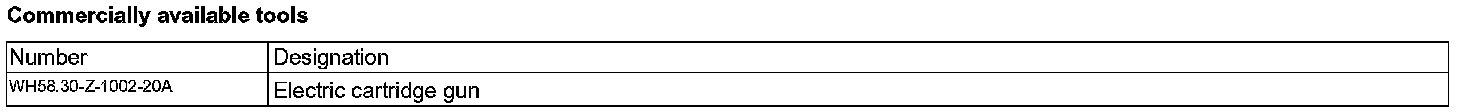

Commercially Available Tools:

Repair Materials:

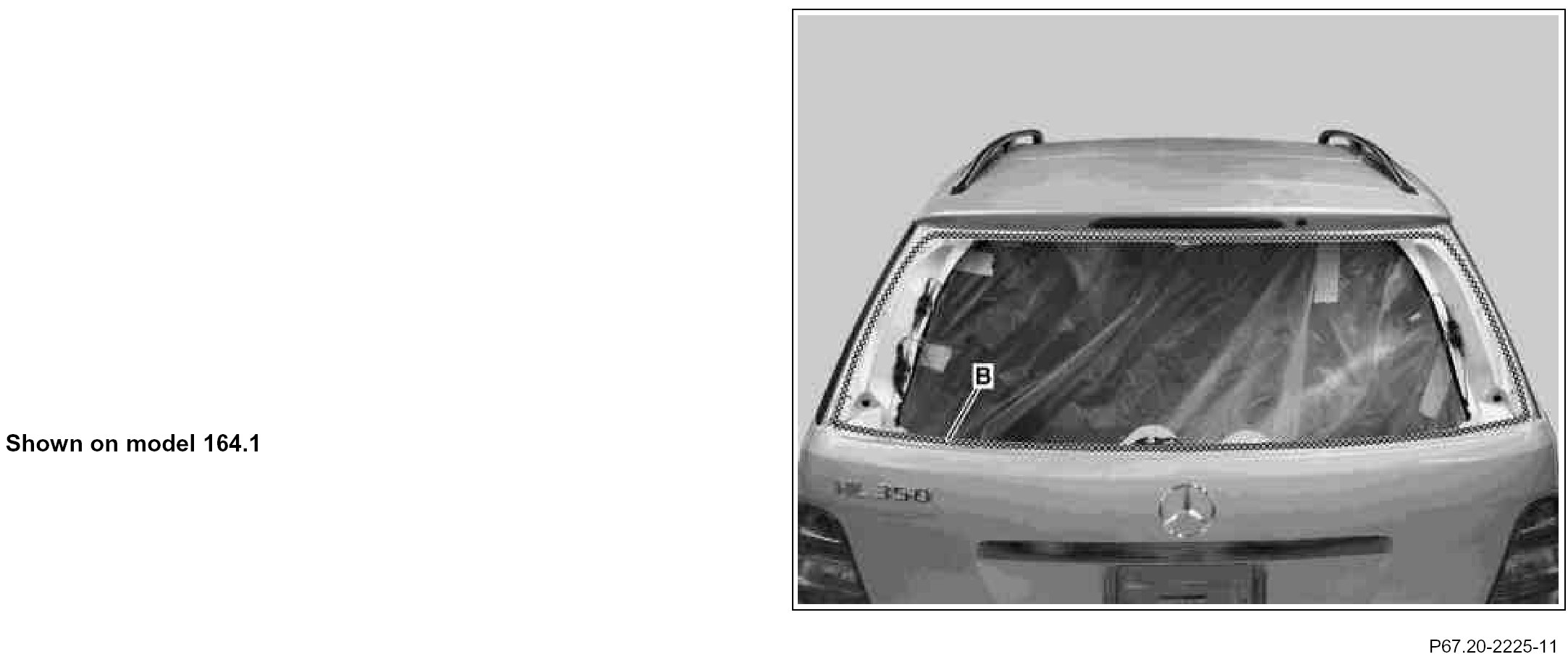

Wear cotton gloves. Ensure that no fingerprints are present in the area of the adhesive surface (area B).

1. Cut triangular opening of cartridge tip so that glue can be applied with a height of approx. 14 mm and a width of approx. 8 mm.
2. Guide cartridge tip along body flange and simultaneously press out glue uniformly.
Completely press out glue not required immediately following application (disposal).
