Rear Door Window Motor: Service and Repair



AR72.29-P-1880GZ Remove/Install Power Window Motor In Rear Door

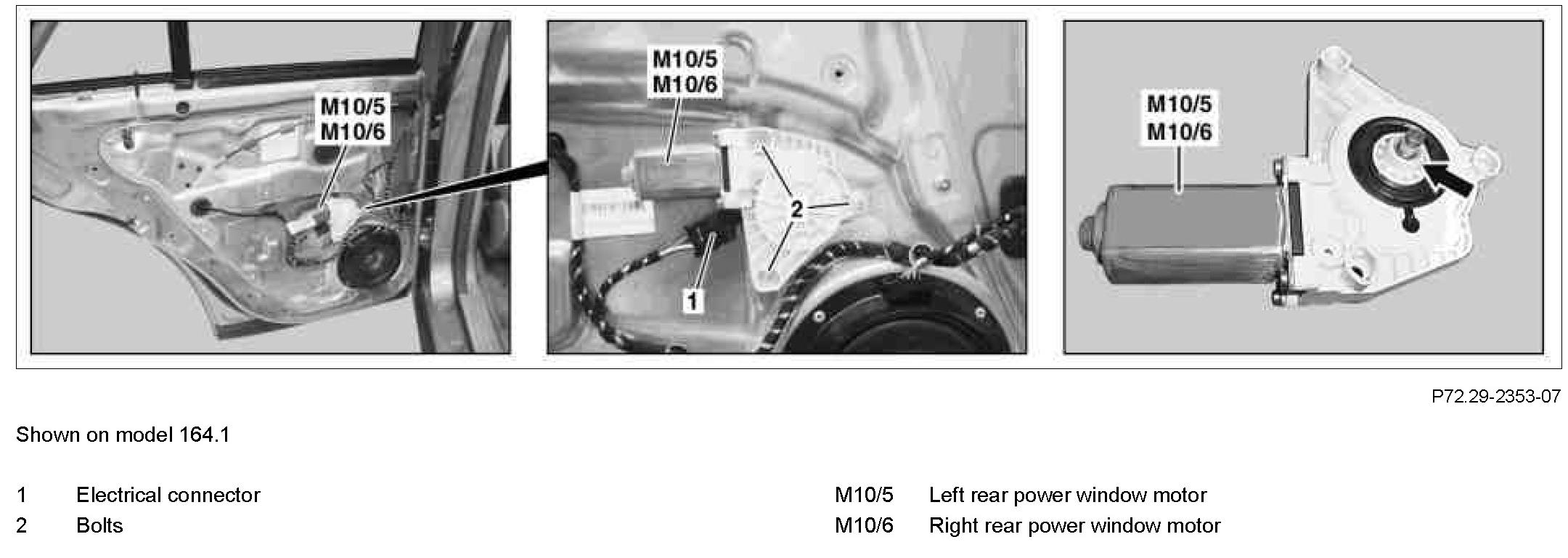

Component Identification:

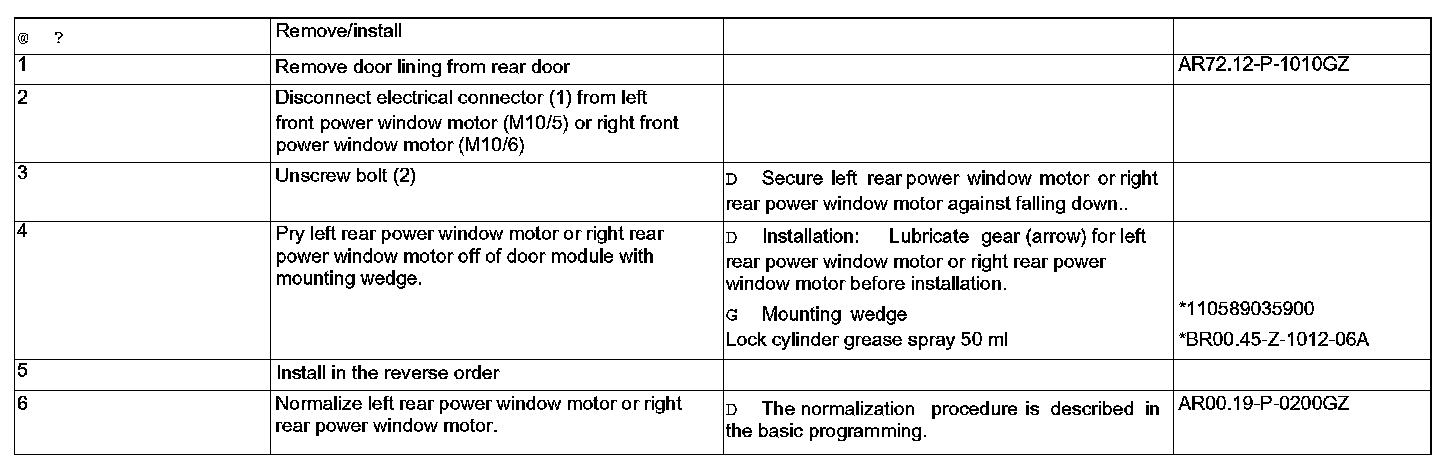

Steps 1 - 6:

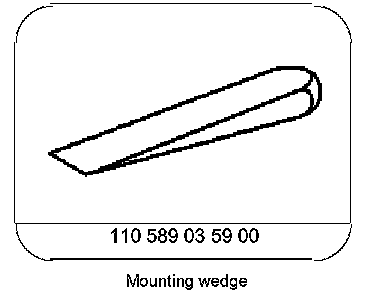

Special Tools:

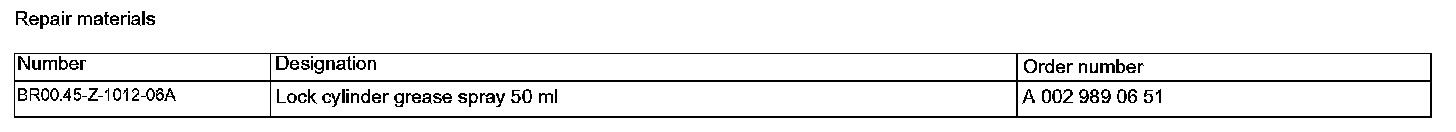

Repair Materials:
