Transfer Case: Service and Repair

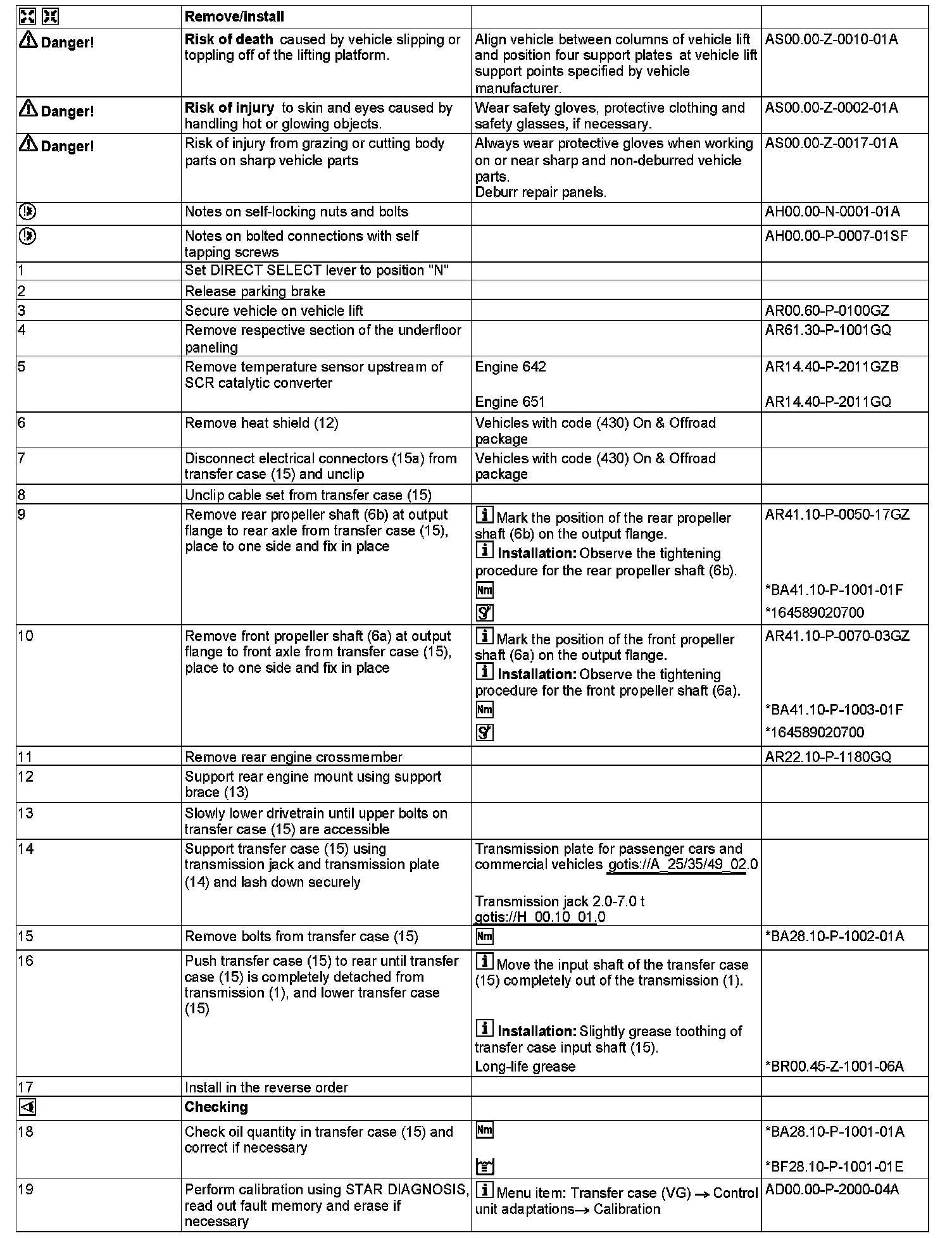

AR28.10-P-0100GQ Remove/Install Transfer Case
MODEL 166.0 with TRANSMISSION 722.9





Shown on transfer case with code (430) On & off-road package

6b Rear propeller shaft
12 Heat shield

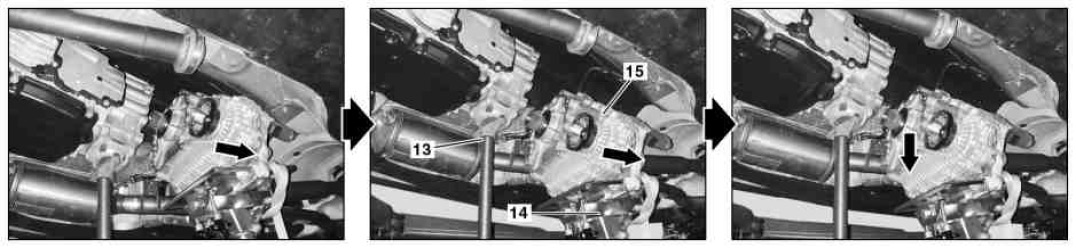

15 Transfer case
15a Electrical connector





13 Support brace
14 Transmission platform
15 Transfer case

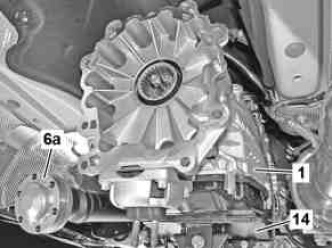

1 Transmission
6a Front propeller shaft
14 Transmission platform

















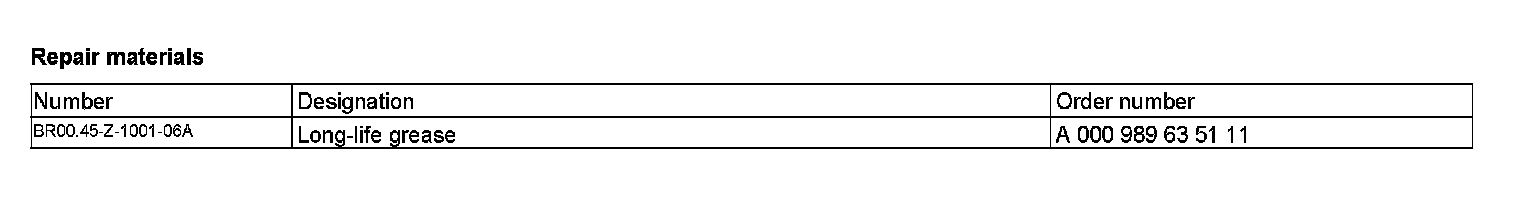

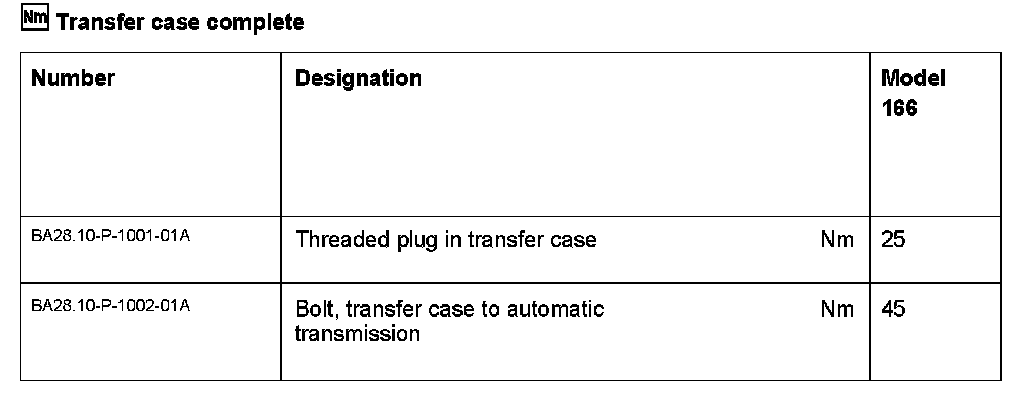

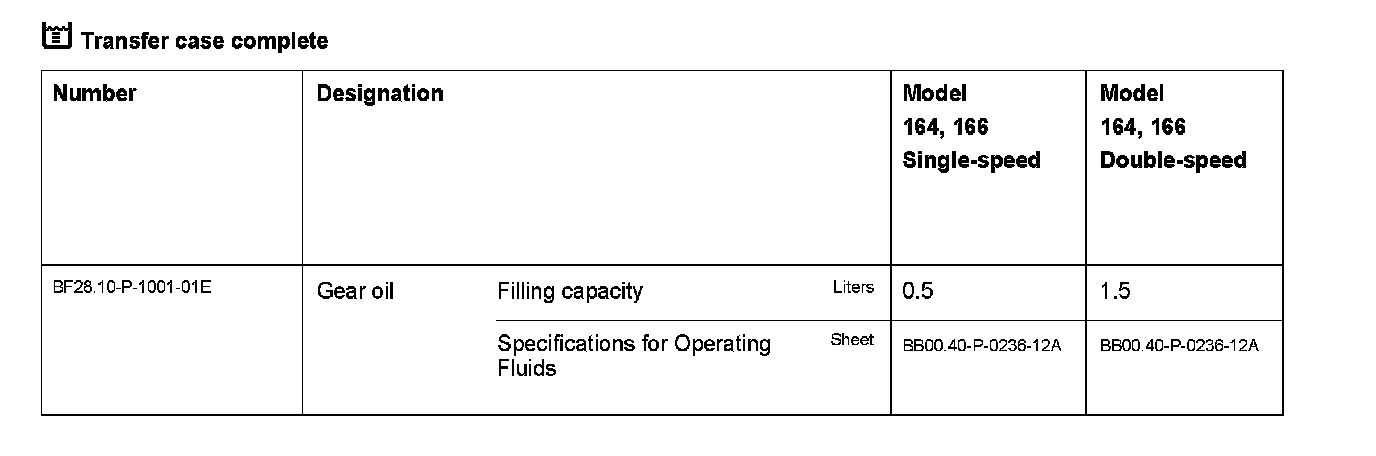

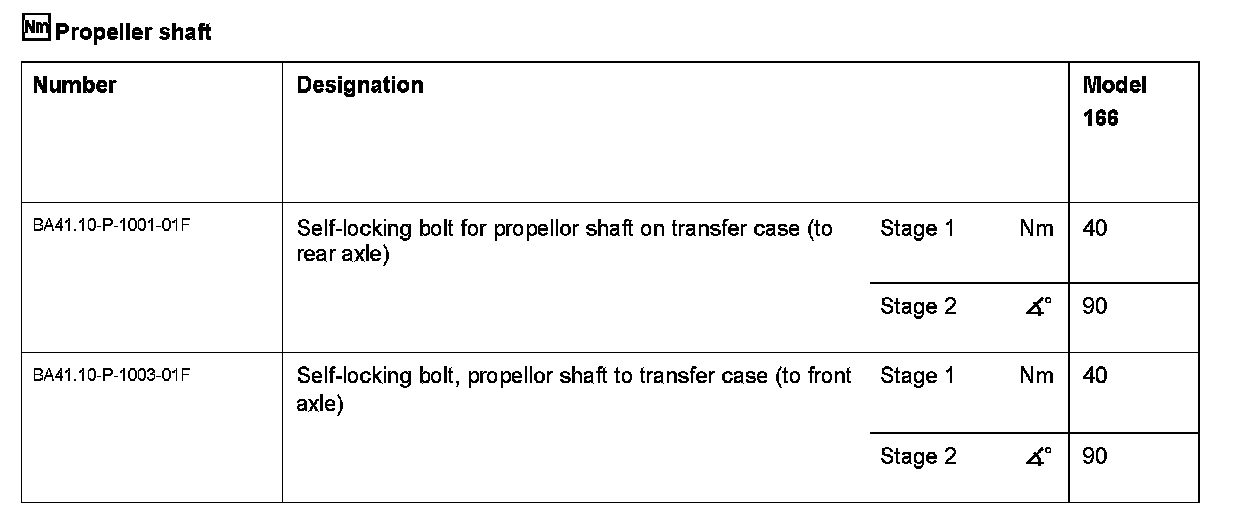

164 589 02 07 00
Retainer wrench
