AR28.10-P-4200GQ Remove/Install Radial Shaft Seal at Transfer Case Input Shaft

AR28.10-P-4200GQ Remove/Install Radial Shaft Seal At Transfer Case Input Shaft
MODEL 166.0 with TRANSMISSION 722.9

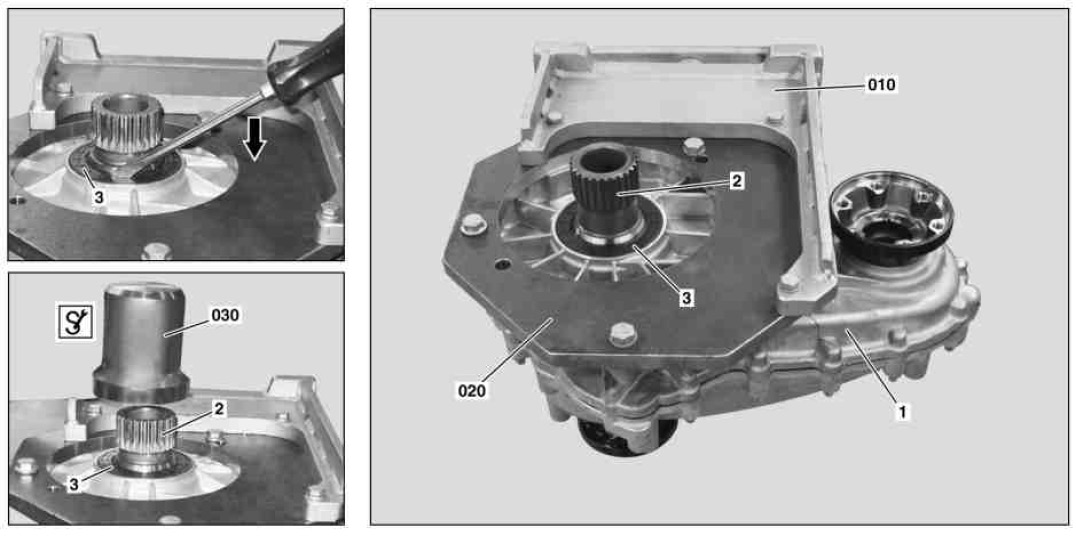

Shown on transfer case with code (430) On & off-road package

010 Assembly stand
020 Support plate
030 Drift
1 Transfer case
2 Input shaft
3 Radial shaft seal











164 589 04 15 00
Drift





164 589 00 63 00
Support plate





116 589 06 59 00
Assembly stand
