AR28.10-P-4150GQB Remove/Install Radial Shaft Sealing Ring at Output Flange to Rear Axle

AR28.10-P-4150GQB Remove/Install Radial Shaft Sealing Ring At Output Flange to Rear Axle
MODEL 166.0 with TRANSMISSION 722.9
- with CODE (430) On & off-road package





010 Assembly stand
020 Support plate
030 Adaptation
1 Transfer case
2 Holes
3 Bolts
4 Front housing half
5 Rear housing half
6 Front axle output flange
12 Rear axle output flange

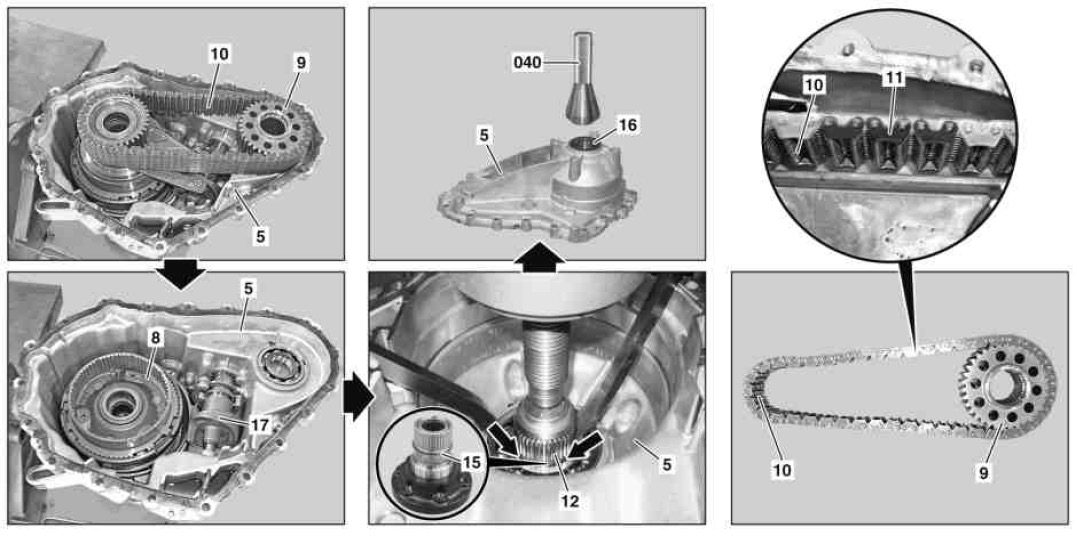

040 Drift

5 Rear housing half
8 Planetary gear set
9 Sprocket
10 Chain
11 Outer lugs
12 Rear axle output flange
15 Retaining ring
16 Radial shaft seal
17 Worm

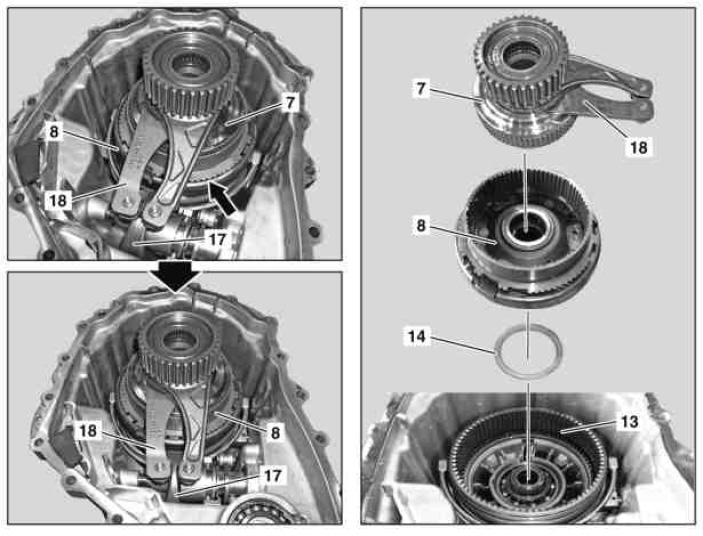

7 Locking unit with sprocket
8 Planetary gear set
13 Ring gear
14 Thrust plate
17 Worm
18 Shift fork














164 589 00 15 00
Drift





164 589 00 63 00
Support plate





116 589 06 59 00
Assembly stand





164 589 00 40 00
Adaptation
