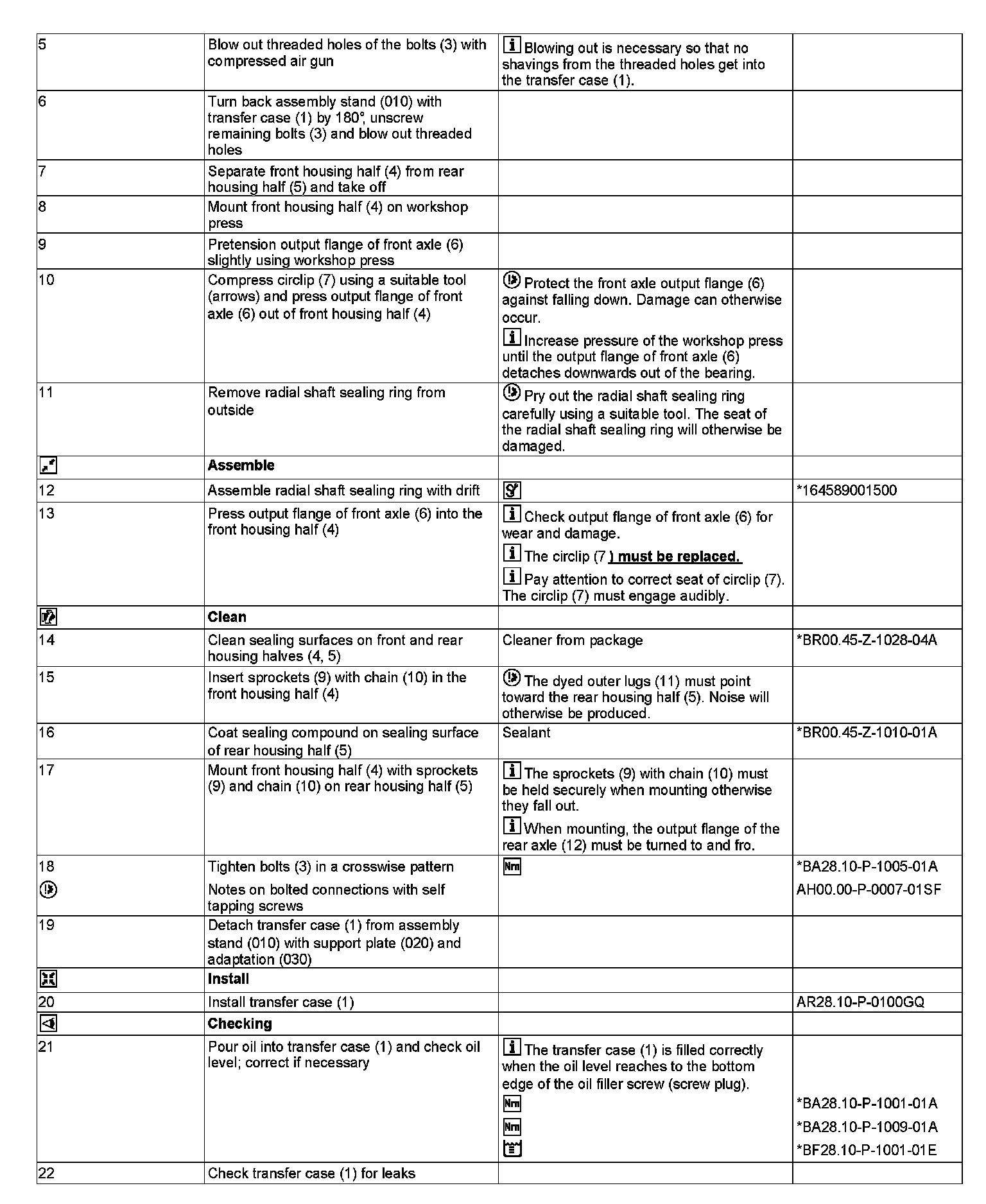

AR28.10-P-4075GQB Remove/Installing Radial Shaft Seal at Output Flange to Front Axle

AR28.10-P-4075GQB Remove/Installing Radial Shaft Seal At Output Flange to Front Axle
MODEL 166.0 with TRANSMISSION 722.9
- with CODE (430) On & off-road package

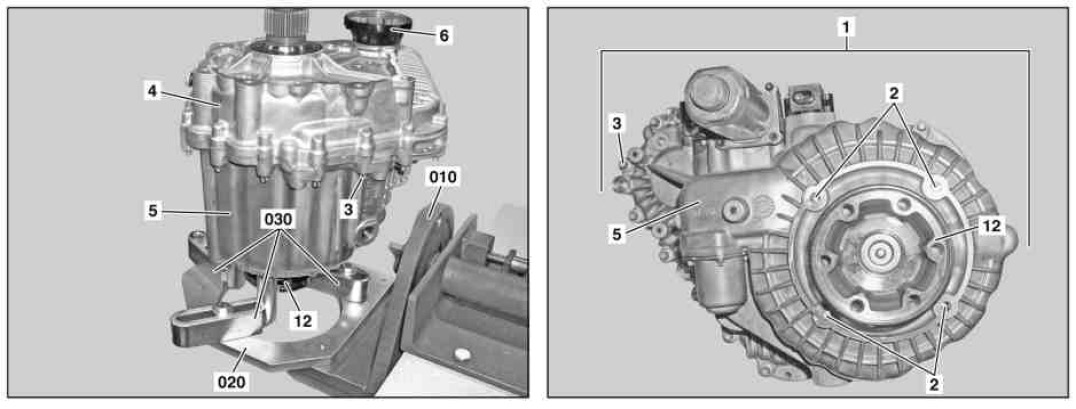

010 Assembly stand
020 Support plate
030 Adaptation
1 Transfer case
2 Holes
3 Bolts
4 Front housing half
5 Rear housing half
6 Front axle output flange
12 Rear axle output flange





4 Front housing half
6 Front axle output flange
7 Retaining ring
9 Sprockets
10 Chain
11 Outer lugs














164 589 00 15 00
Drift





164 589 00 63 00
Support plate





116 589 06 59 00
Assembly stand





164 589 00 40 00
Adaptation
