Electrical Diagrams

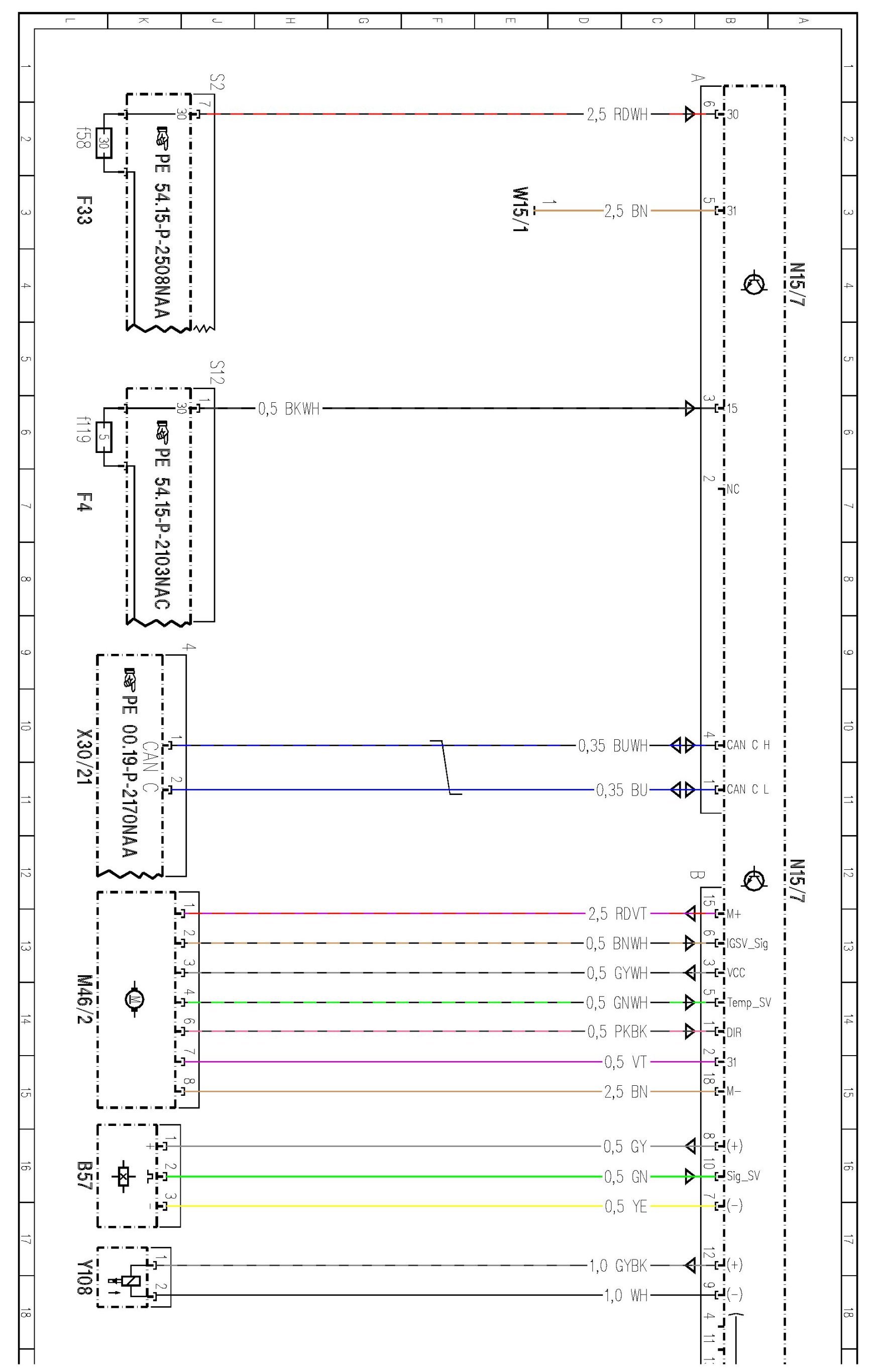

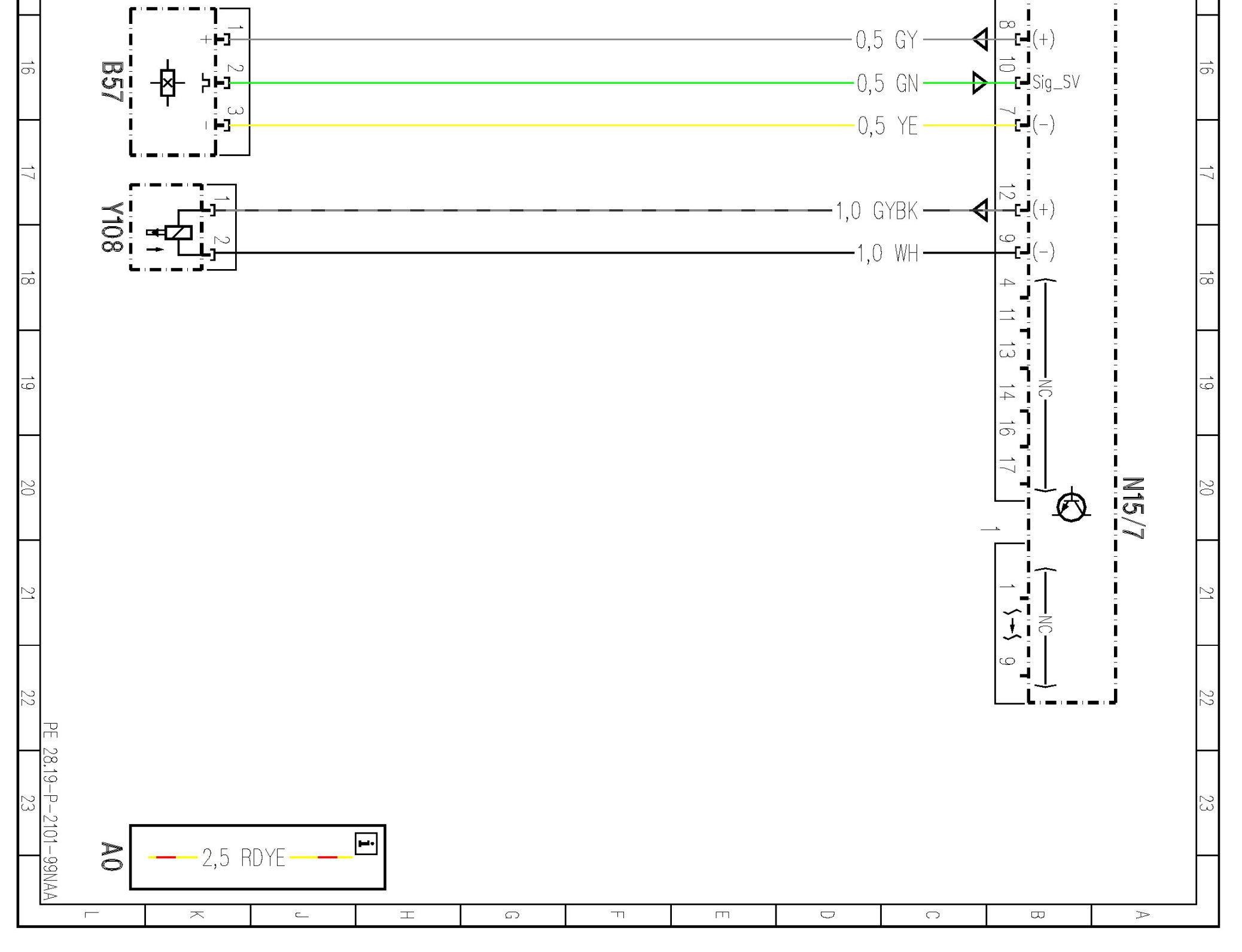

PE28.19-P-2101NAA Transfer Case Control Unit
MODEL 166 with TRANSMISSION 722.9
- with CODE (430) On & Off-Road Package
- with CODE (489) AIRmatic (Air Suspension With Level Adjustment And Adaptive Damping System (ADS))

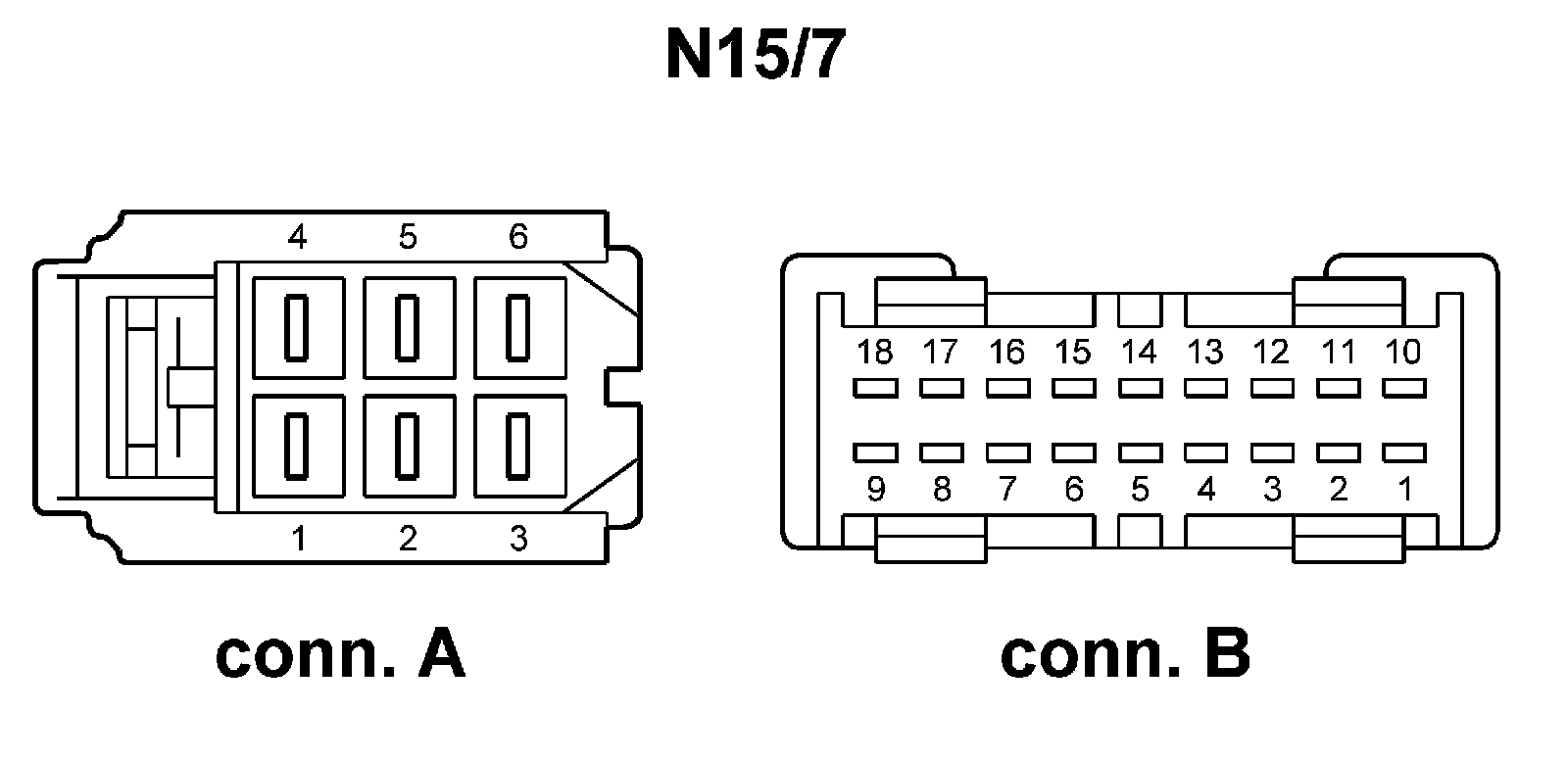

- Control Unit N15/7










































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
