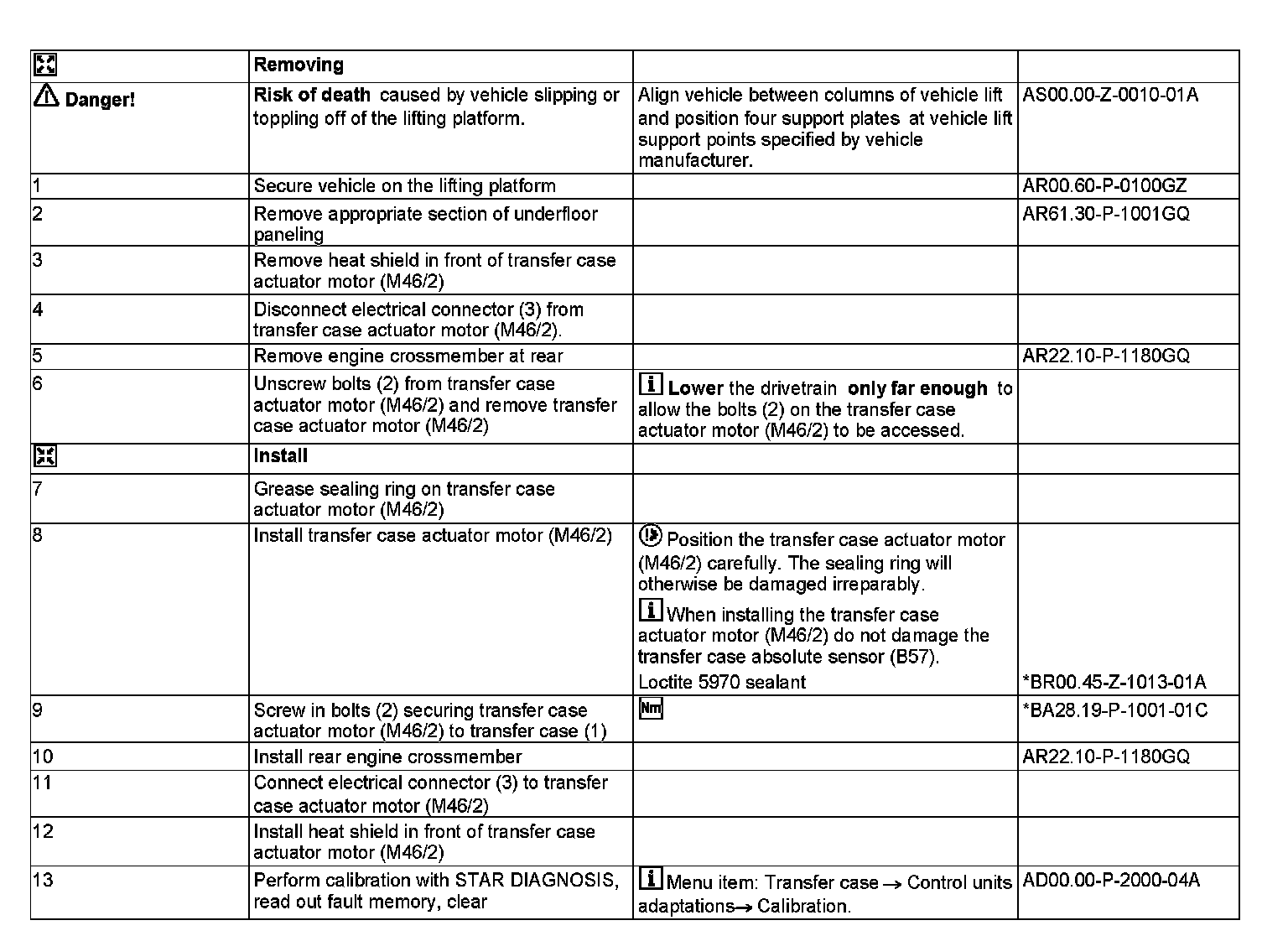

AR28.19-P-1004GQ Remove/Install Transfer Case Actuator Motor




AR28.19-P-1004GQ Remove/Install Transfer Case Actuator Motor
MODEL 166.0 with TRANSMISSION 722.9
- with CODE (430) On & off-road package





Transfer case removed to simplify presentation

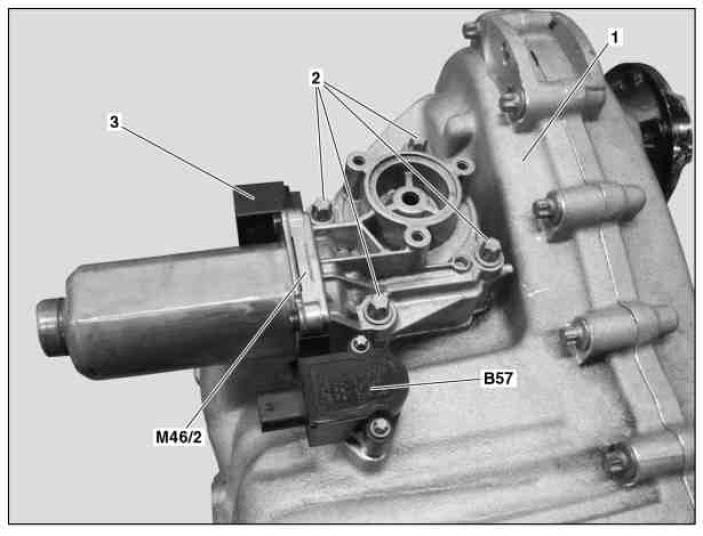

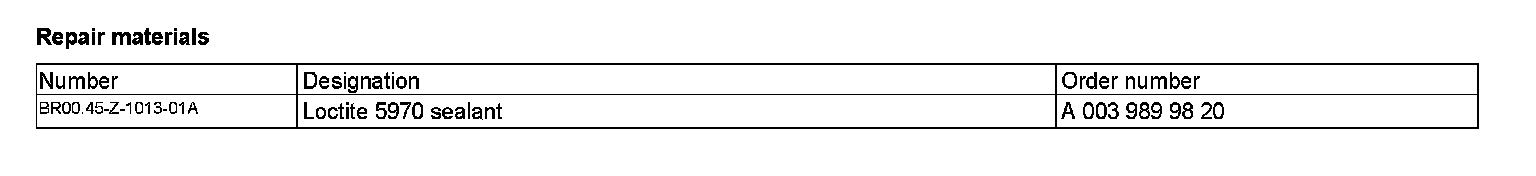

1 Transfer case

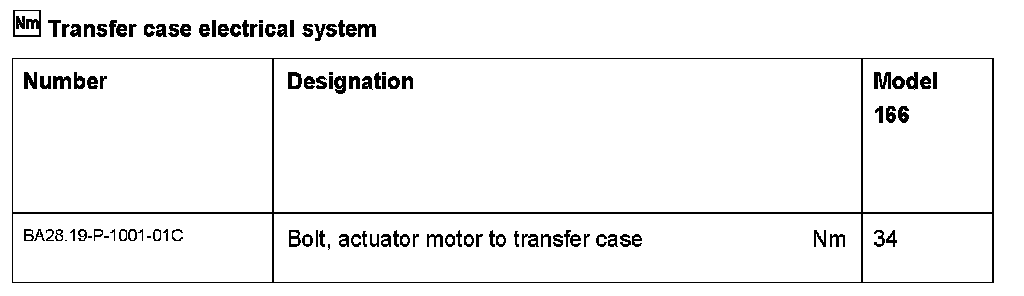

2 Bolts
3 Electrical connector

B57 Transfer case absolute sensor
M46/2 Transfer case actuator motor
