AR41.10-P-0050GQ Remove/Install Propeller Shaft

AR41.10-P-0050GQ Remove/Install Propeller Shaft
MODEL 166

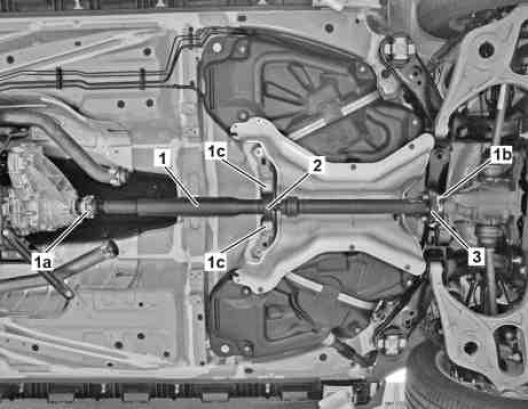

Shows model 166.057

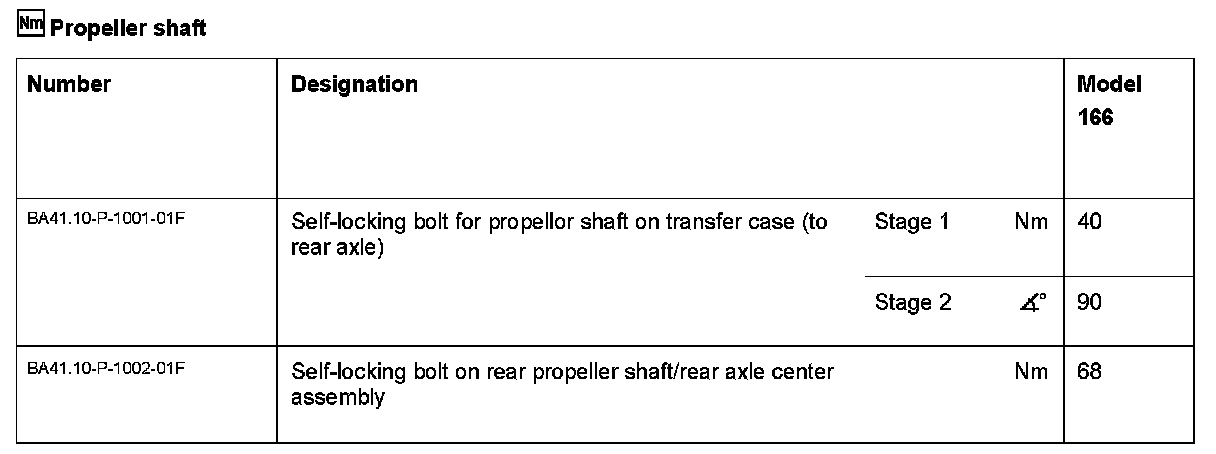

1 Propeller shaft
1a Screw
1b Screw
1c Screw

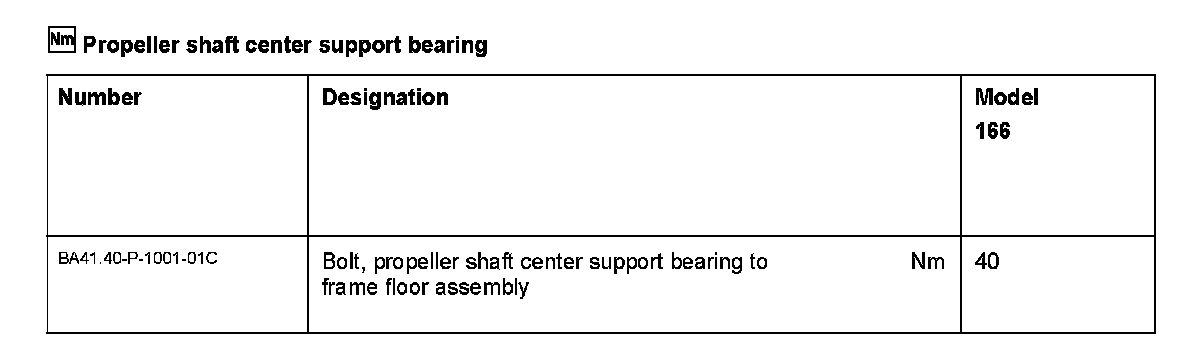

2 Propeller shaft center support bearing
3 Flex disk














164 589 02 07 00
Retainer wrench
