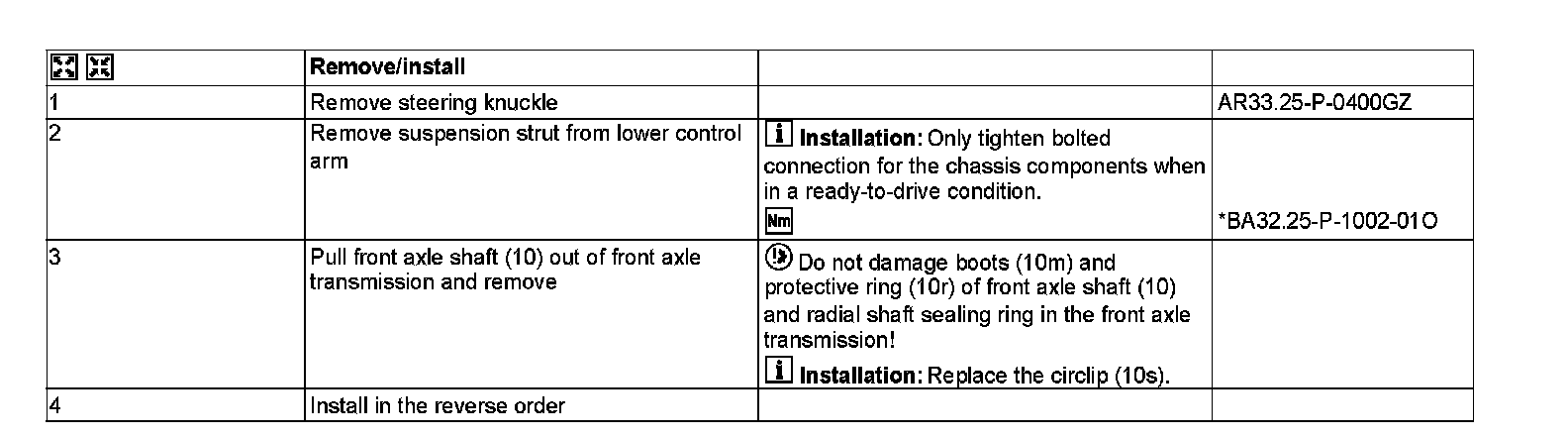

AR33.30-P-0620GQ Remove/Install Front Axle Shafts




AR33.30-P-0620GQ Remove/Install Front Axle Shafts
MODEL 166

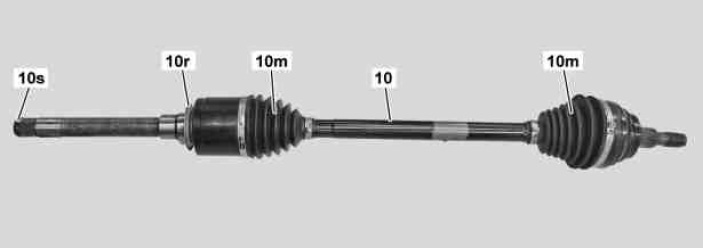

10 Front axle shaft
10m Boot
10r Protective ring
10 s Retaining ring
