AR33.30-P-0660GZ Replace Rubber Boots on Front Axle Shaft

AR33.30-P-0660GZ Replace Rubber Boots On Front Axle Shaft
MODEL 164, 166

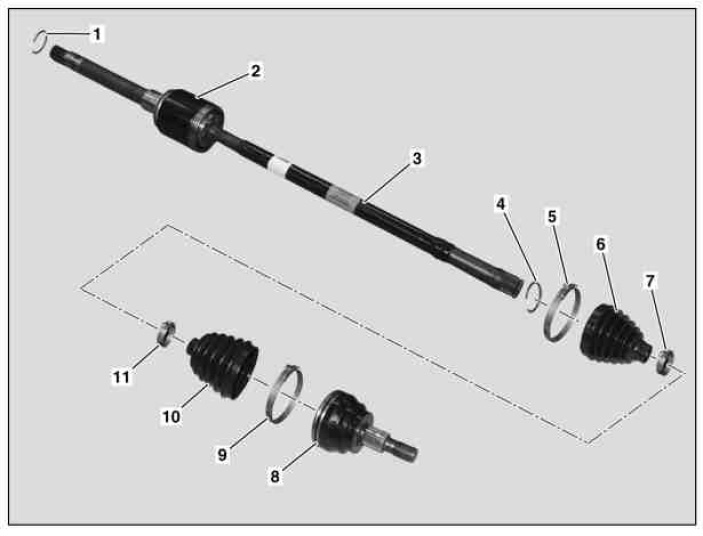

Shown on model 164

1 Retaining ring
2 Inner joint
3 Front axle shaft
4 Retaining ring
5 Large hose clamp
6 Rubber boot (inner)
7 Small hose clamp
8 Outer joint
9 Large hose clamp
10 Outer rubber boot
11 Small hose clamp
