Home >> Mercedes Benz Truck >> 2012 >> ML 550 4MATIC (166.073) V8-4.6L Turbo (278.928) >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Seals and Gaskets >> Service and Repair >> AR33.30-P-0545GQ Remove/Install Radial Shaft Seal at Front Axle Gear of Front Axle Shaft

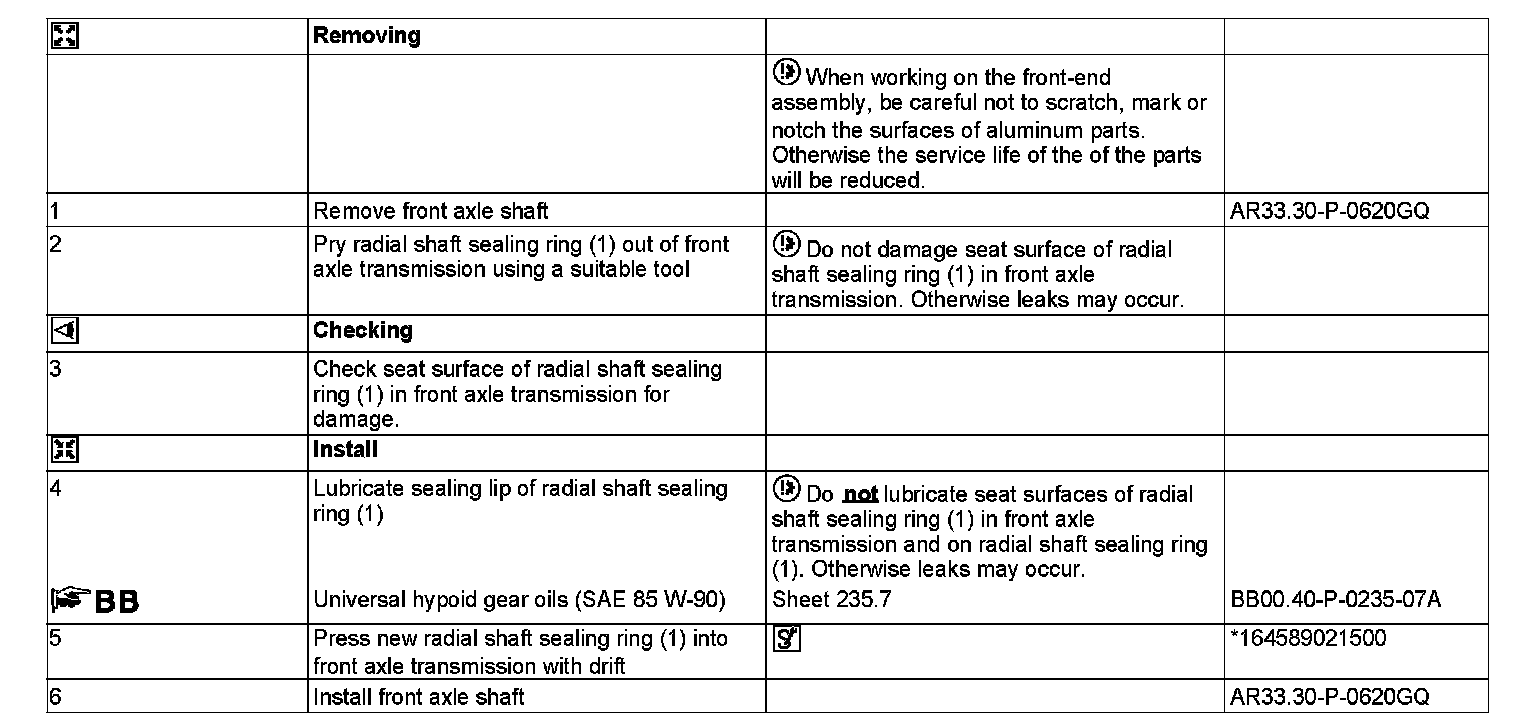

AR33.30-P-0545GQ Remove/Install Radial Shaft Seal at Front Axle Gear of Front Axle Shaft




AR33.30-P-0545GQ Remove/Install Radial Shaft Seal At Front Axle Gear Of Front Axle Shaft
MODEL 166

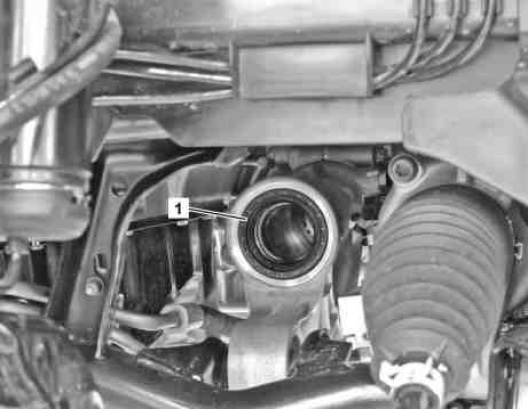

1 Radial shaft sealing ring








164 589 02 15 00
Drift
