AR35.30-P-5000GZ Remove/Install Rear Axle Center Assembly Rubber Mount



AR35.30-P-5000GZ Remove/install rear axle center assembly rubber mount

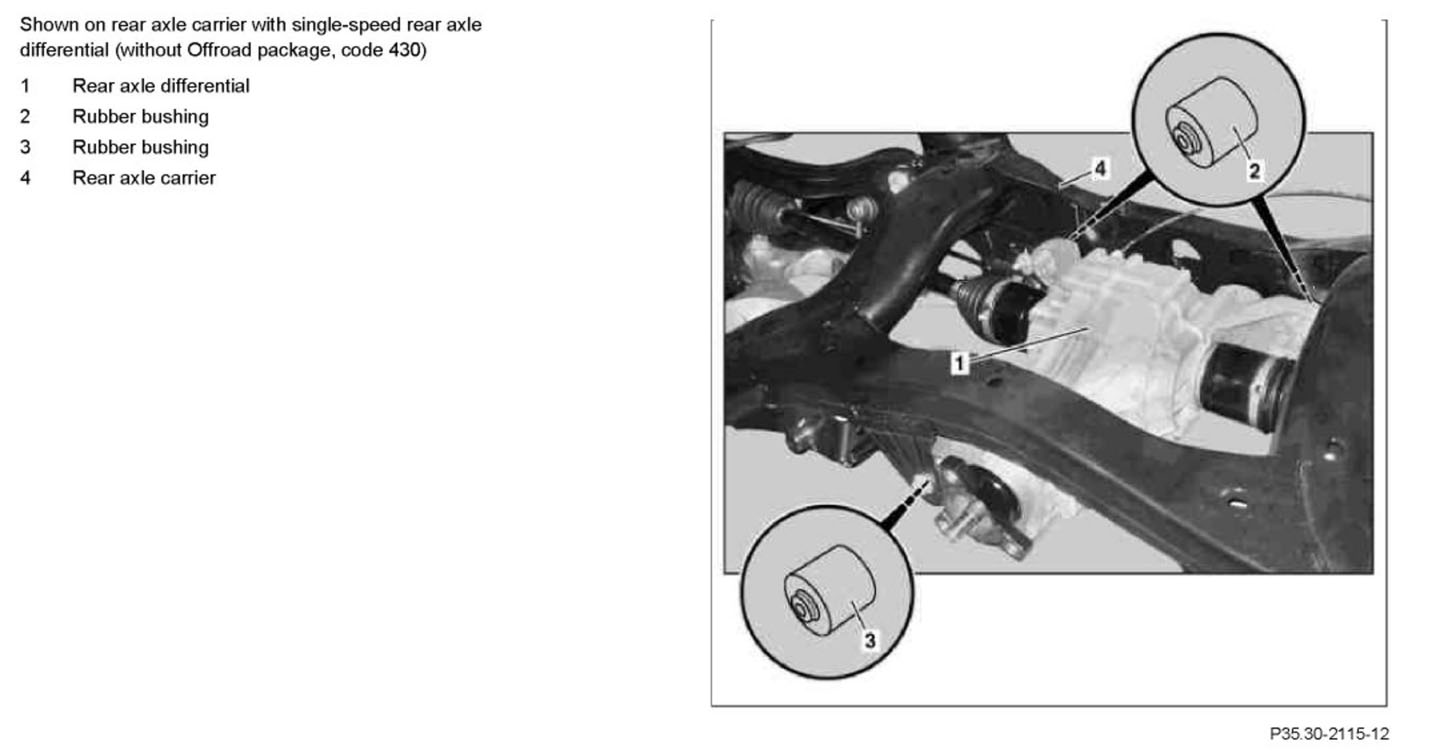

Component Identification:

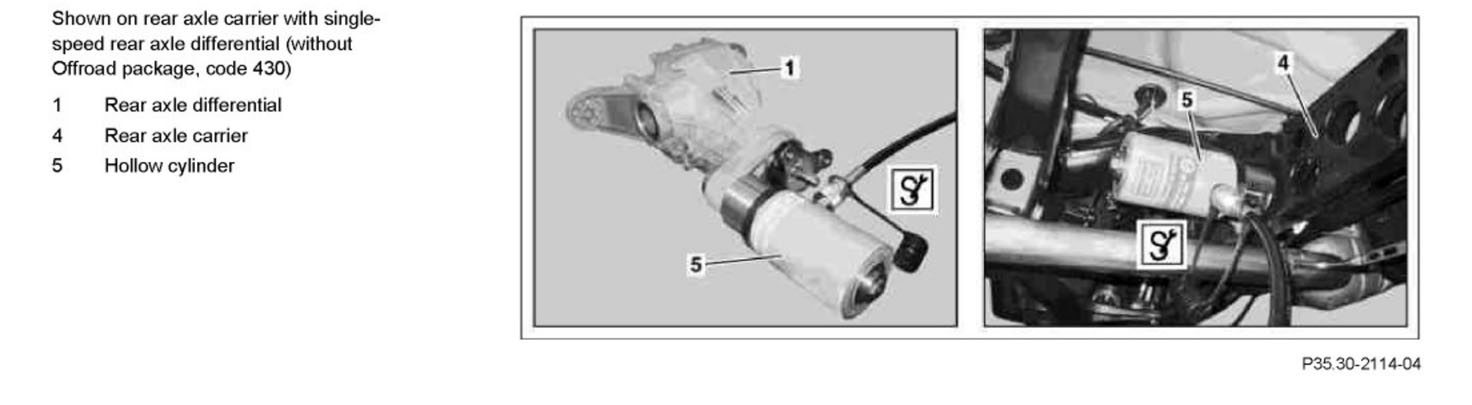

Component Identification:

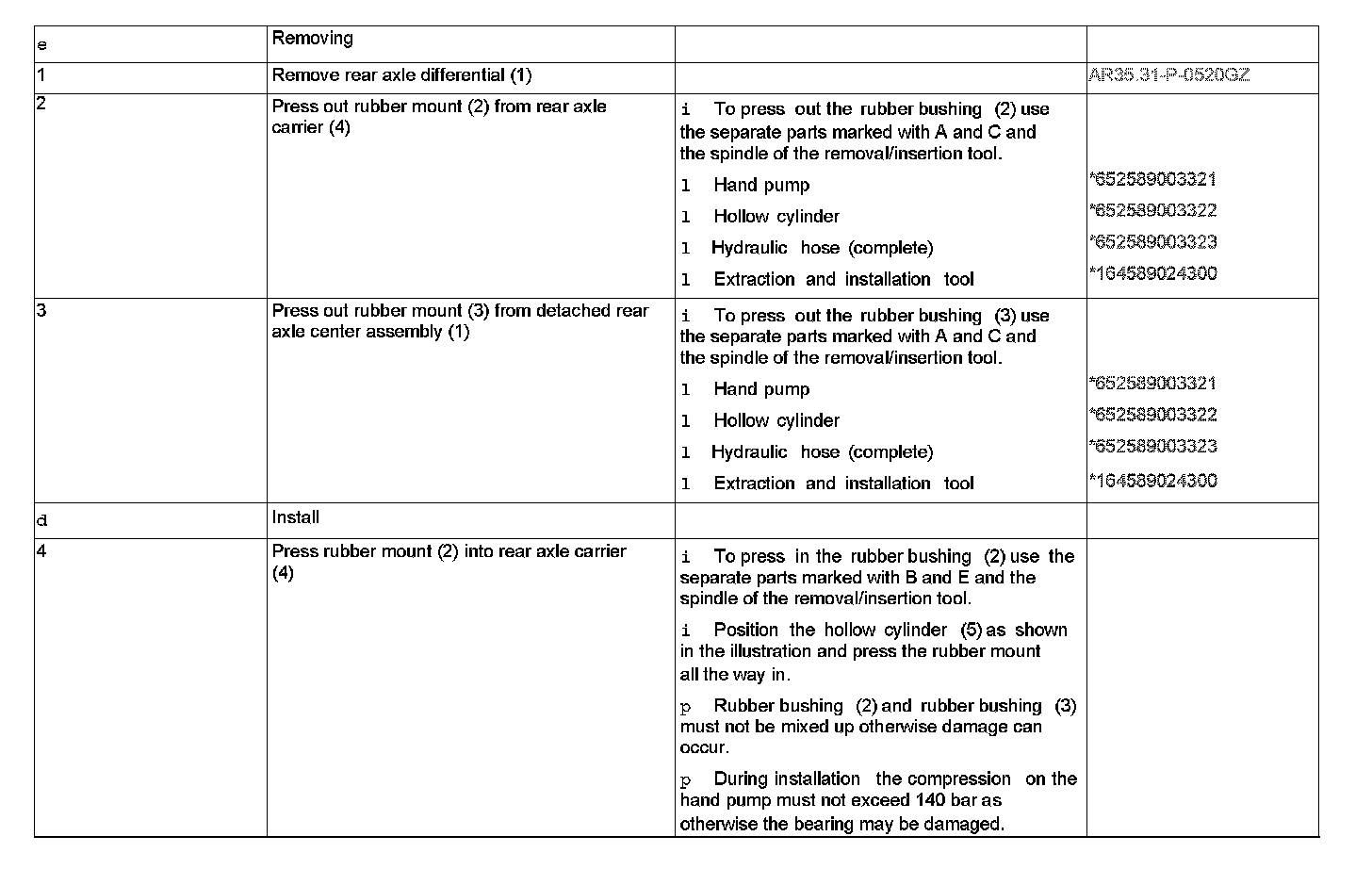

Steps 1-4:

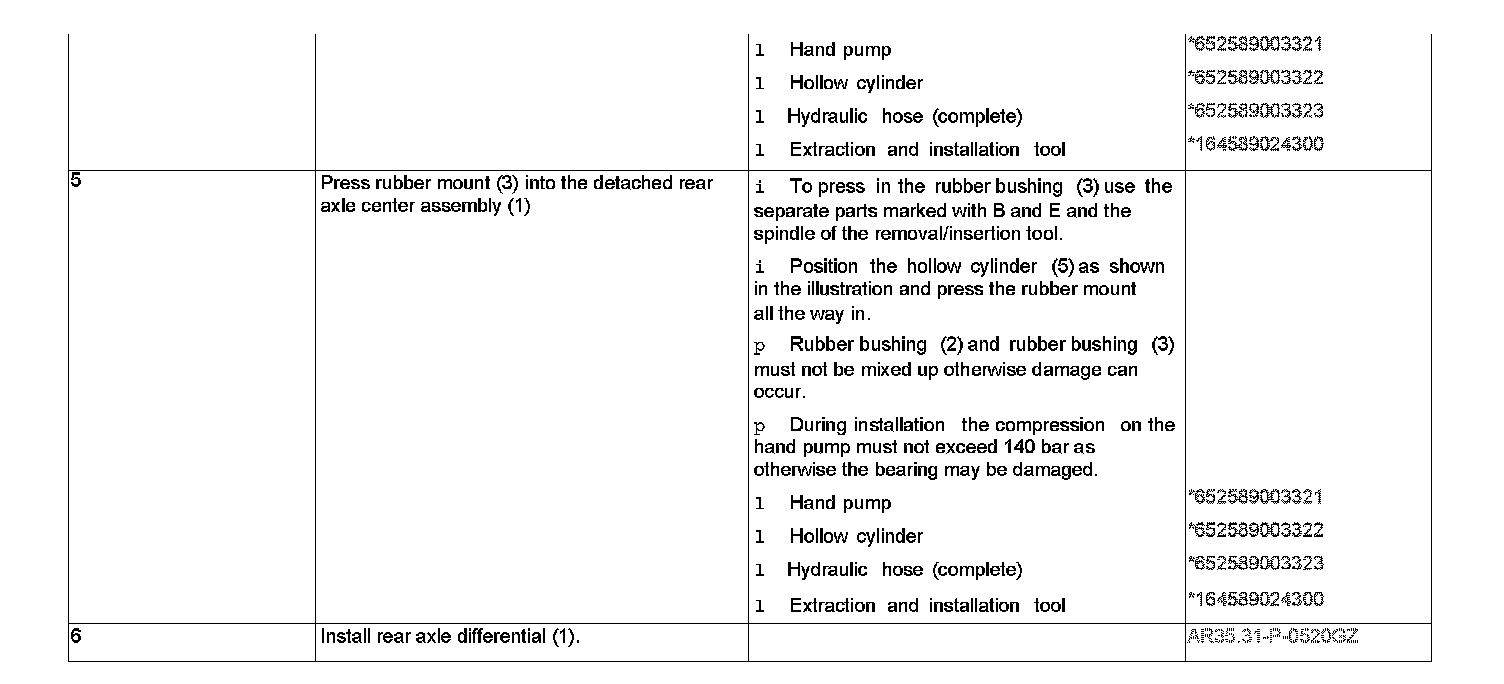

Remove/install Steps 5-6:

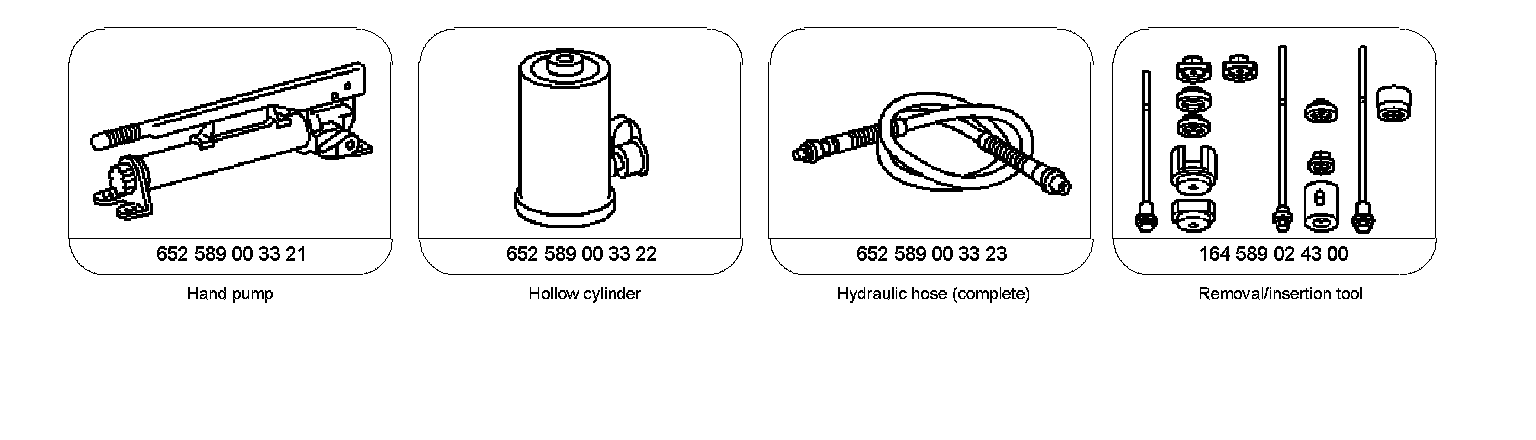

Special Tools:
