AR35.10-P-0050EW Remove/Install Rear Rubber Mounts For Differential Mount In Rear Axle Carrier



AR35.10-P-0050EW Remove/install rear rubber mounts for differential mount in rear axle carrier

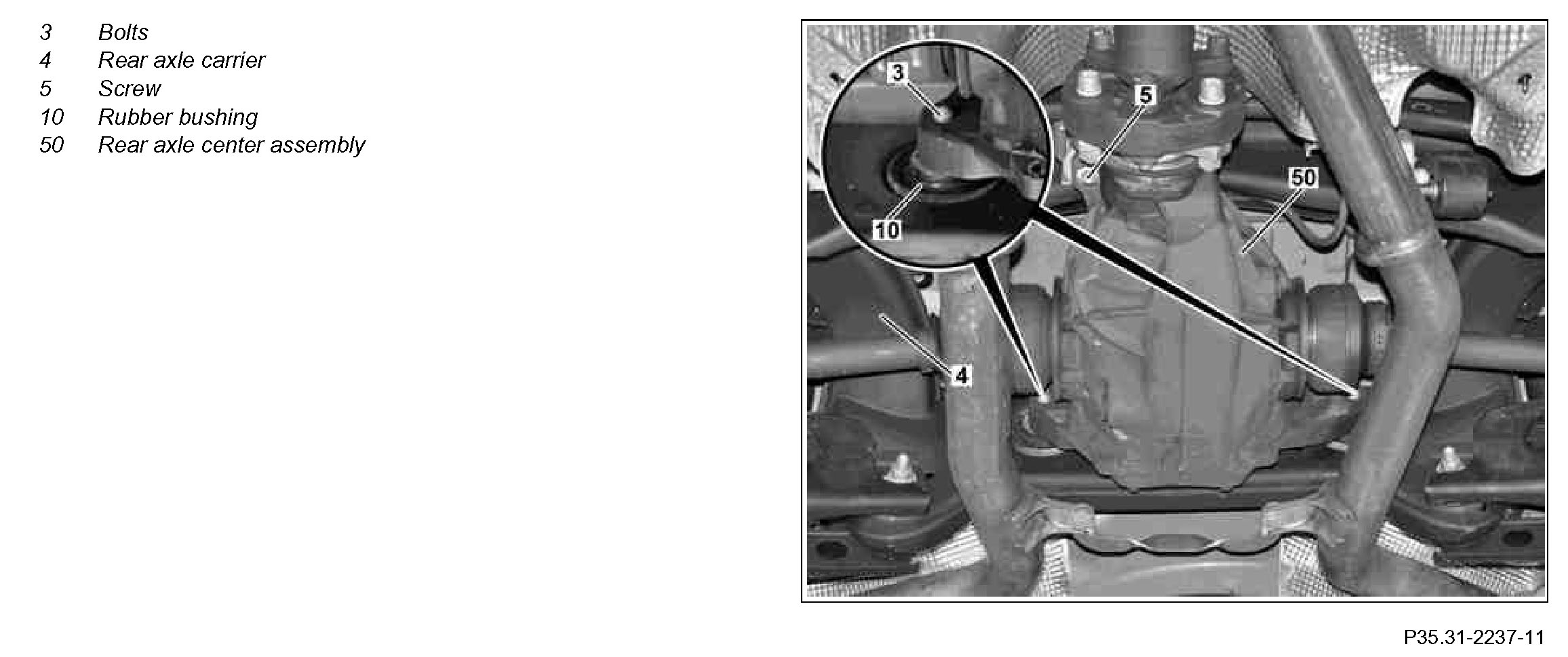

Component Identification:

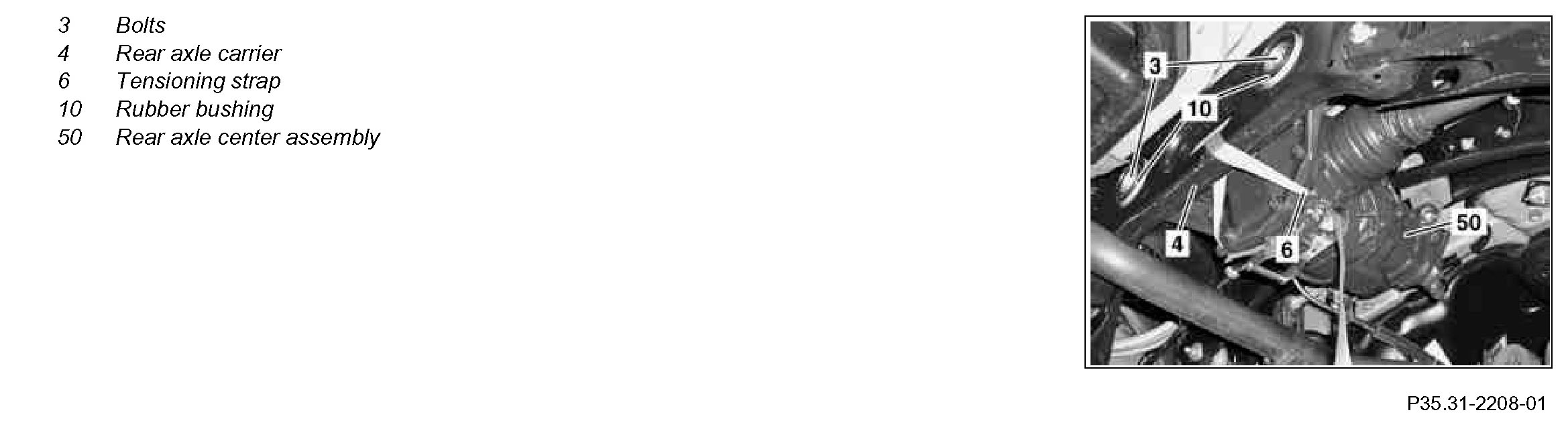

Component Identification:

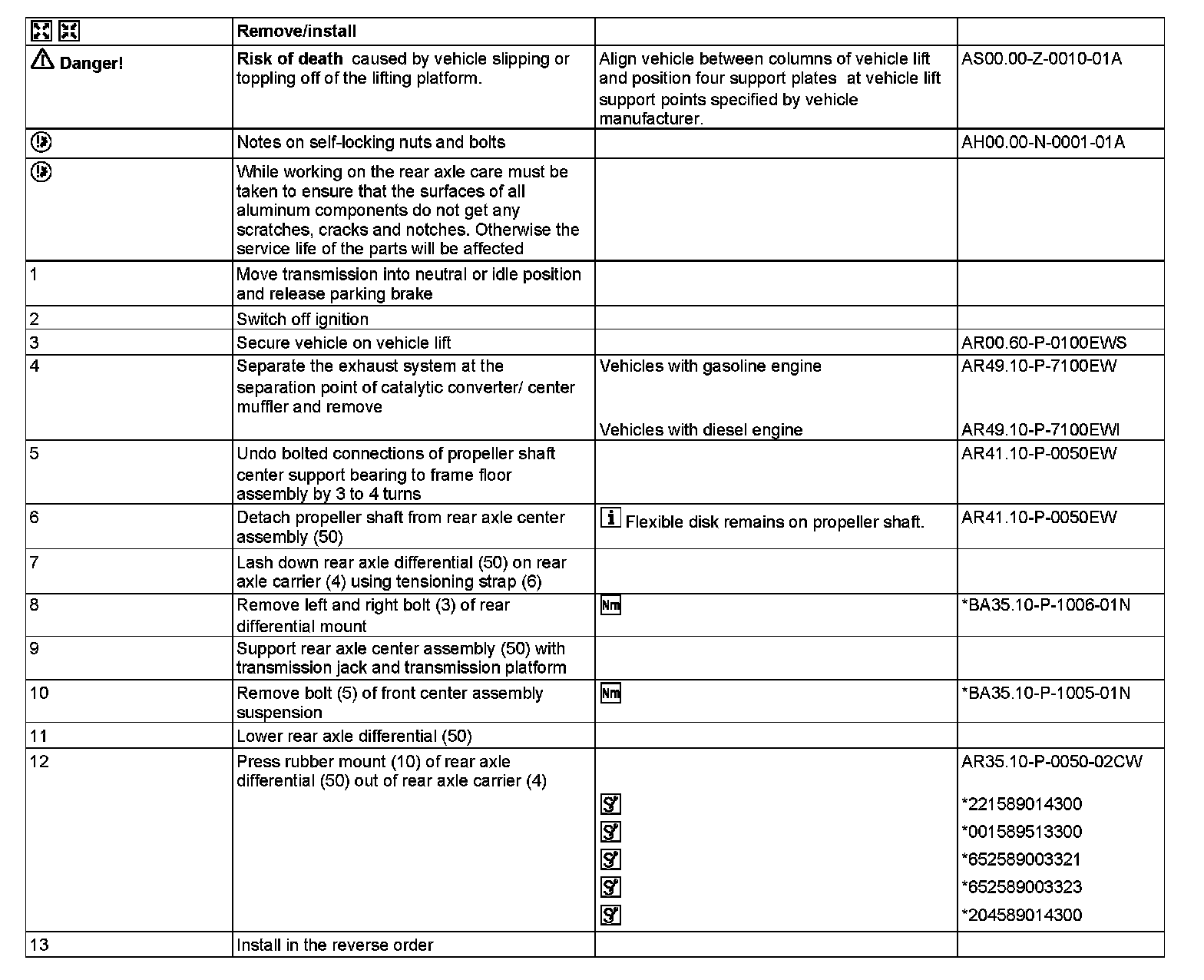

Steps 1-13:

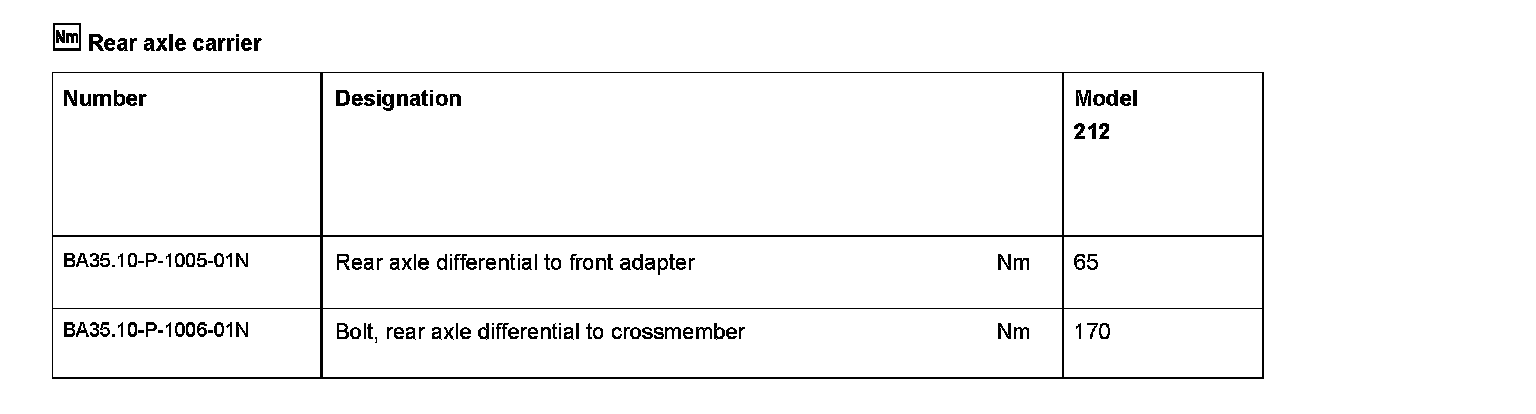

Rear axle carrier:

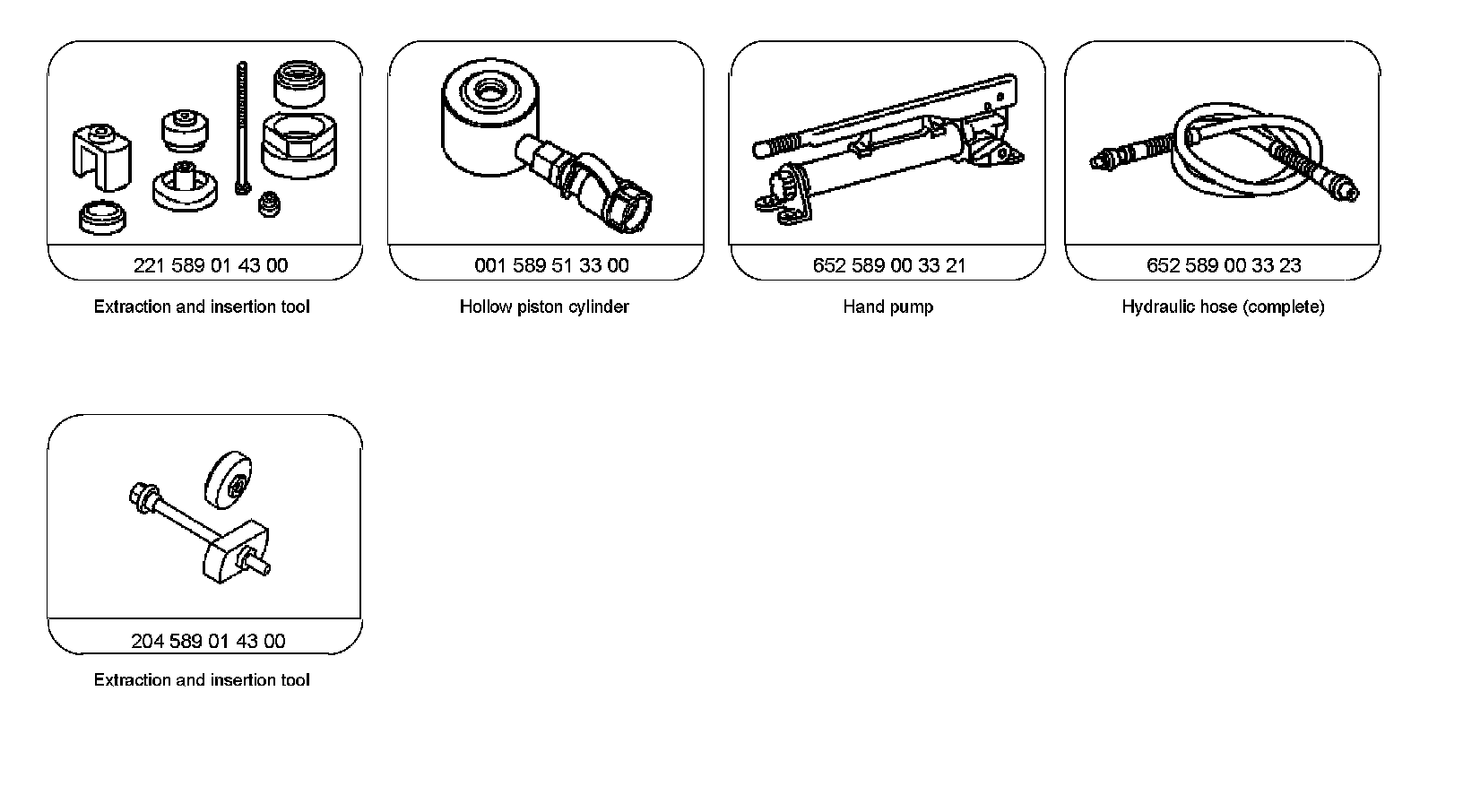

Special Tools:
