AR33.30-P-5000GZ Remove/Install Front Axle Gear Rubber Mounts



AR33.30-P-5000GZ Remove/install front axle gear rubber mounts

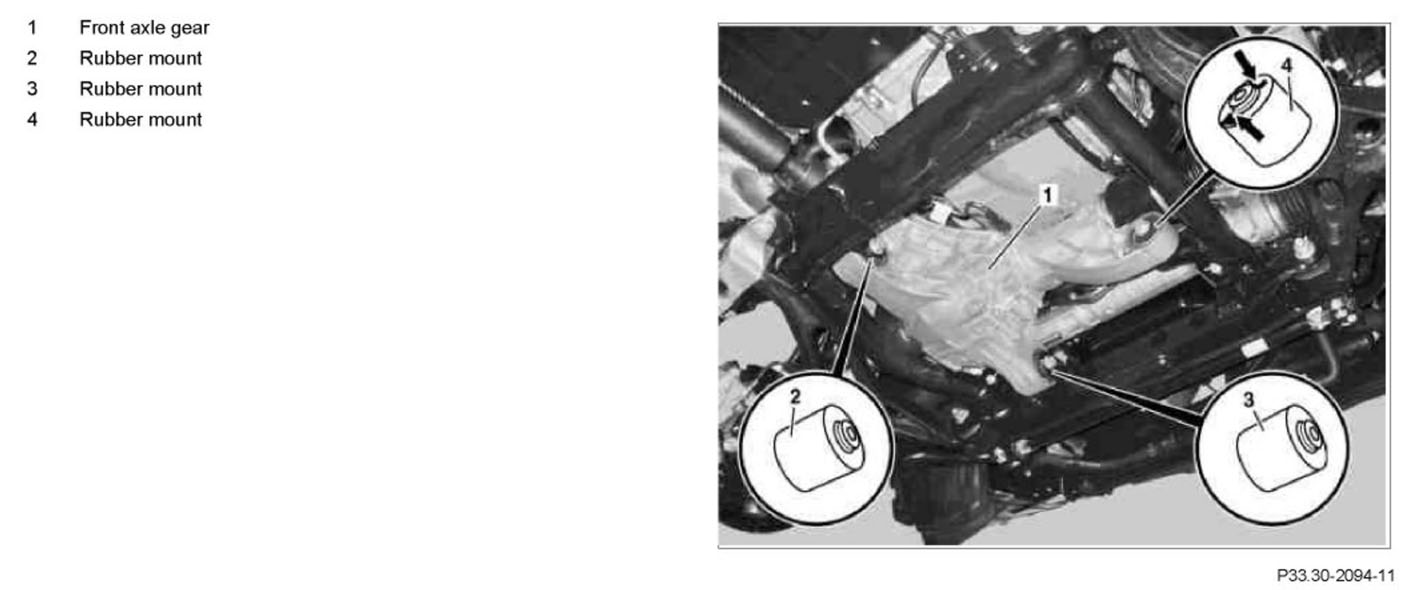

Component Identification:

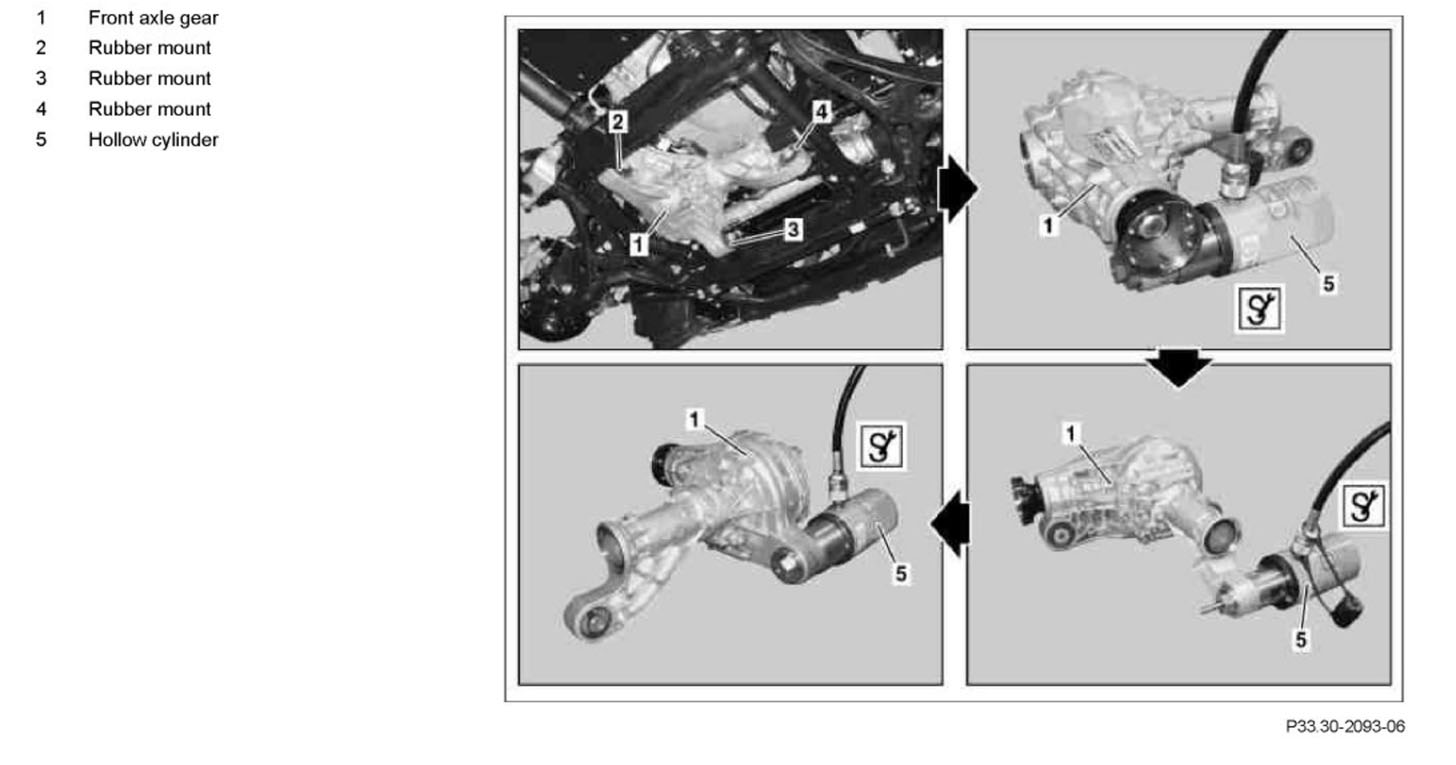

Component Identification:

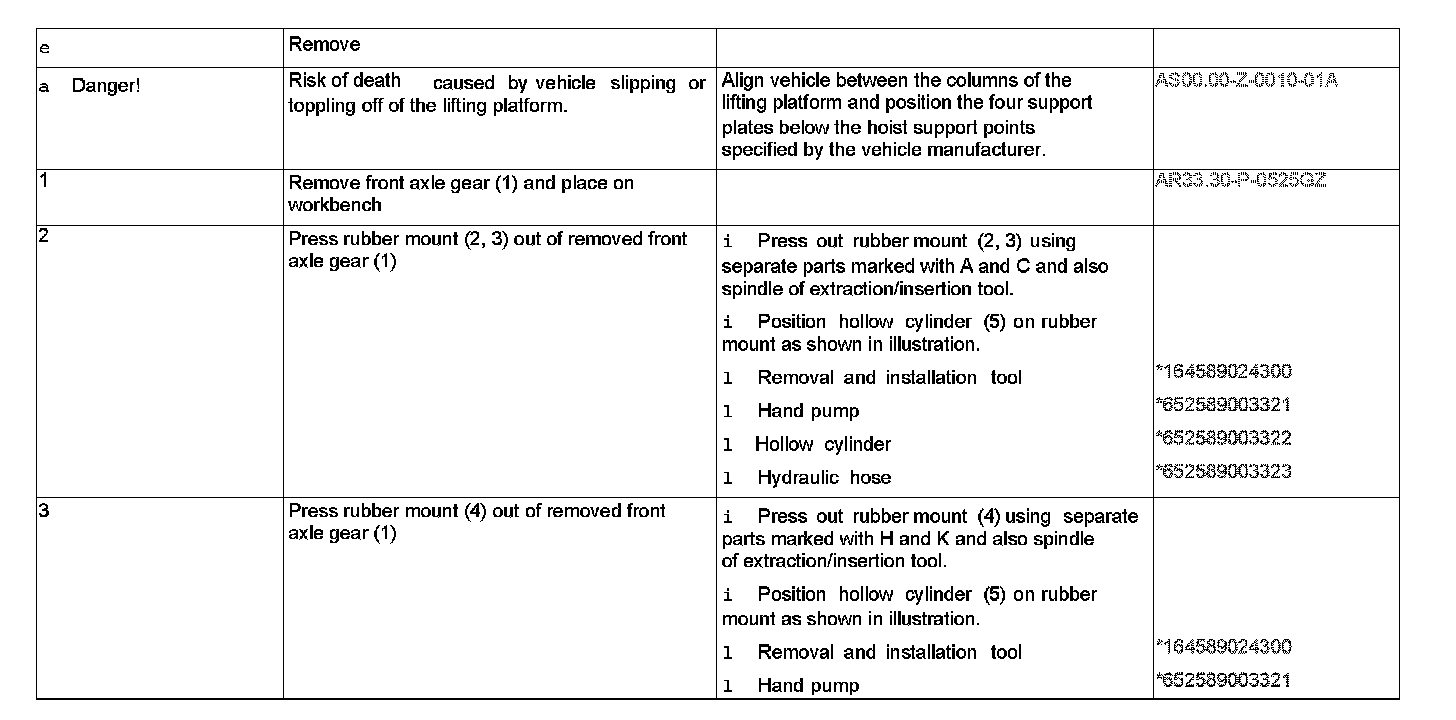

Steps 1-3:

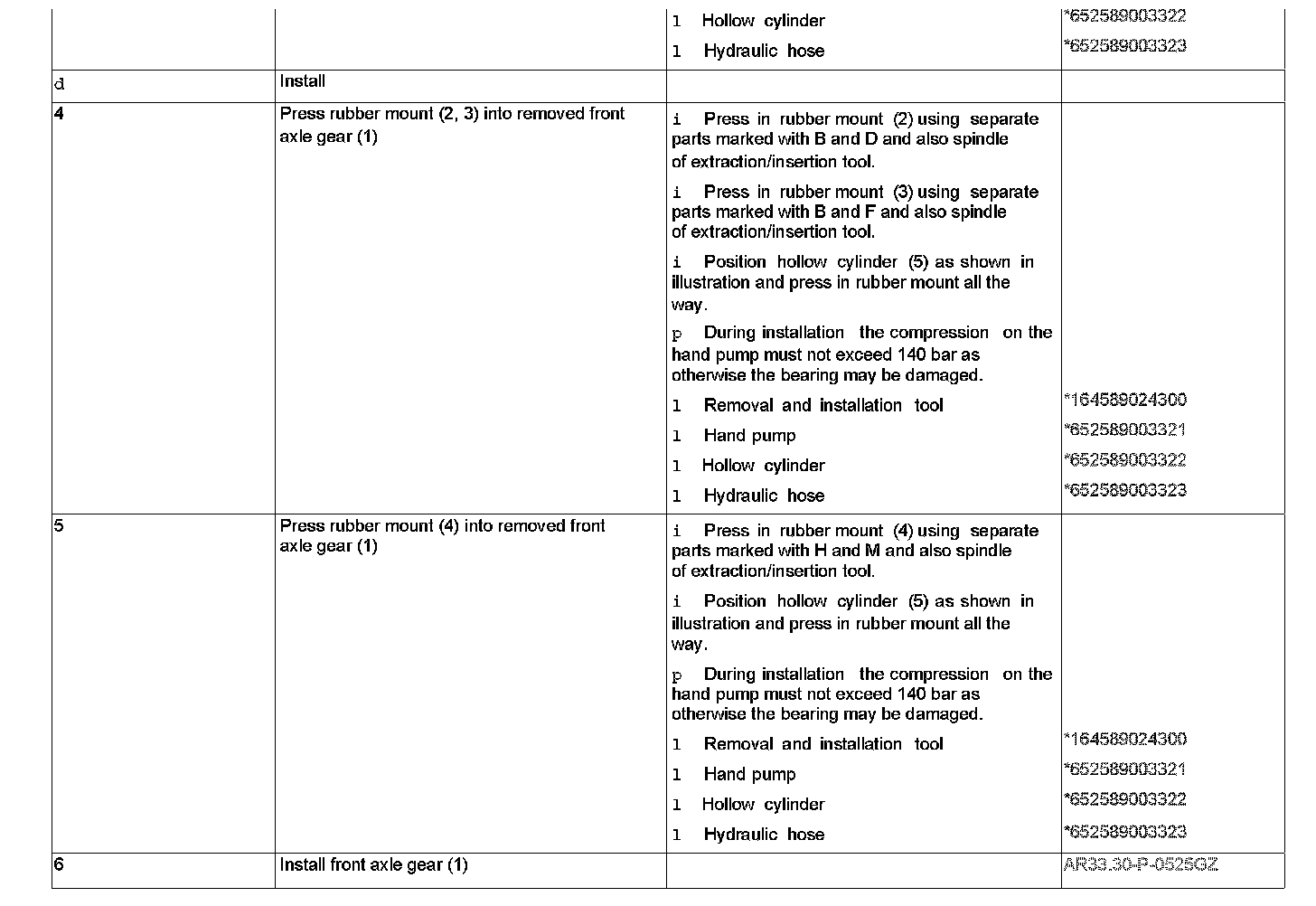

Remove/install Steps 4-6:

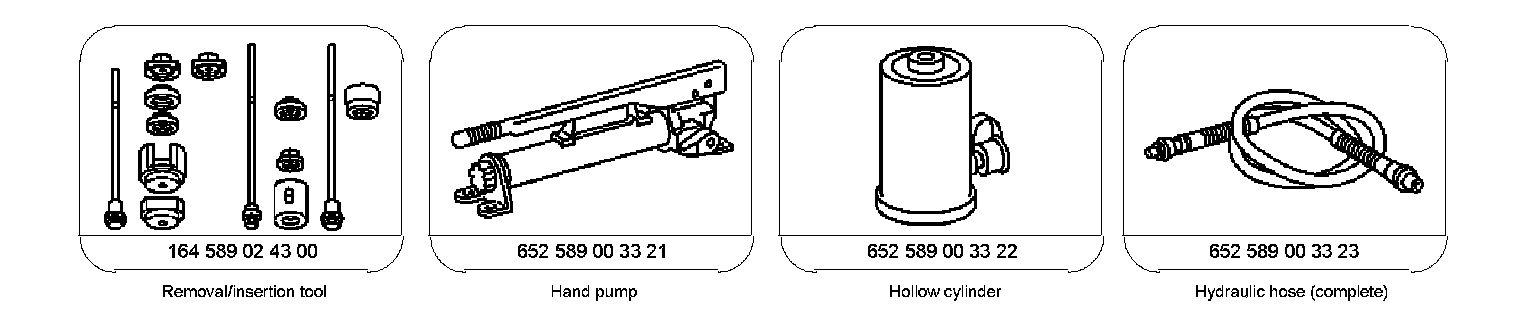

Special Tools:
