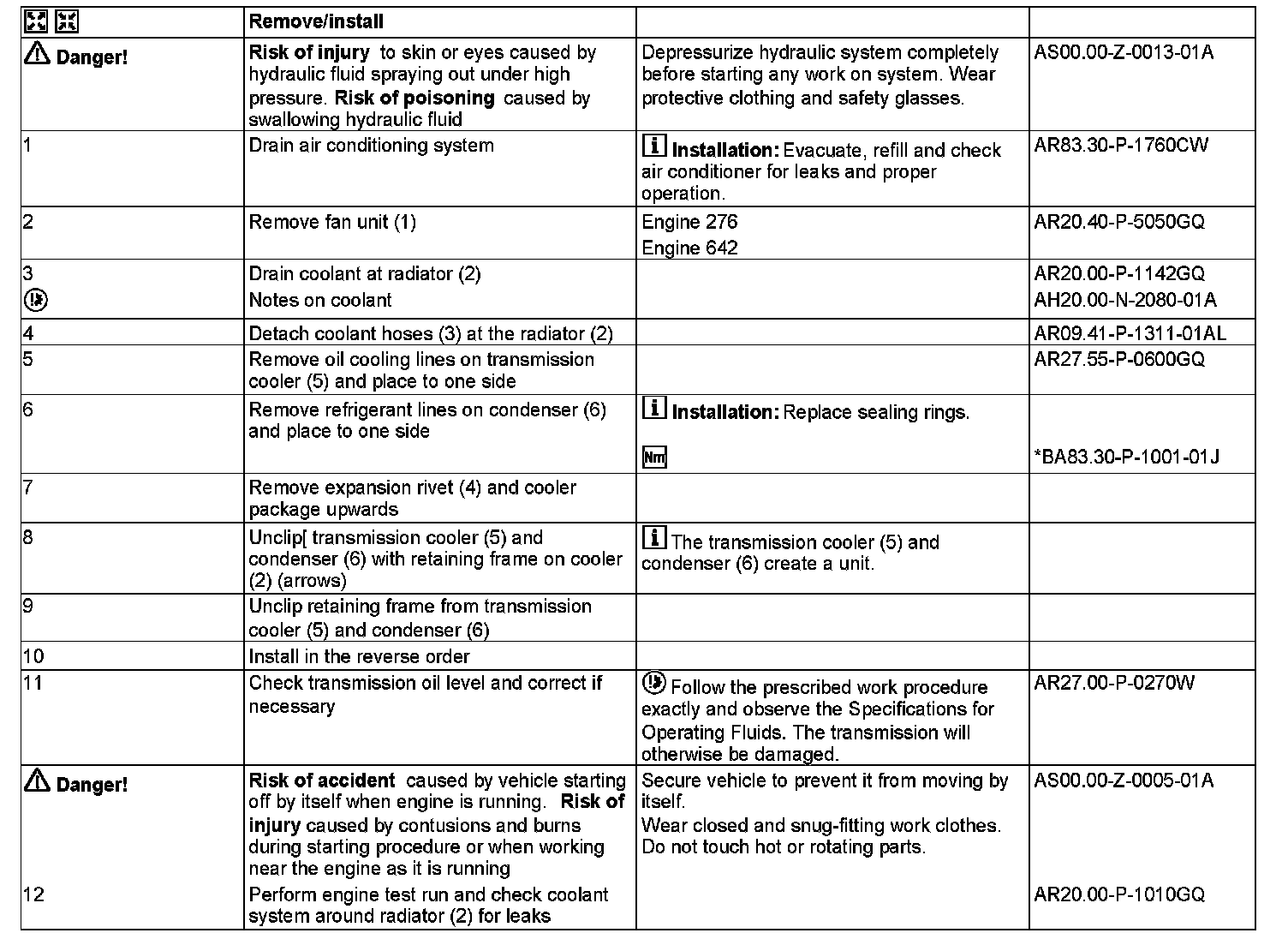

AR27.55-P-1000GQ Remove/Install Automatic Transmission Fluid Cooler




AR27.55-P-1000GQ Remove/Install Automatic Transmission Fluid Cooler
TRANSMISSION 722.9 in MODEL 166.0





1 Fan unit
2 Radiator
3 Coolant hoses
4 Expansion rivet





5 Transmission oil cooler
6 Condenser
