AR27.40-P-0700-01GZ Remove/Install Shield at Transmission

AR27.40-P-0700-01GZ Remove/install shield at transmission
- Transmission 722.9

Housing:

Component Identification:

1 Unscrew bolt (1) and remove shield (2) downwards.
2 Press cable holder (4) out of shield (2) and remove shield (2).

Installation: The shield (2) must be positioned under the leaf spring (3).

The leaf spring (3) must be modified if a new transmission is installed.

3 Install in the reverse order.

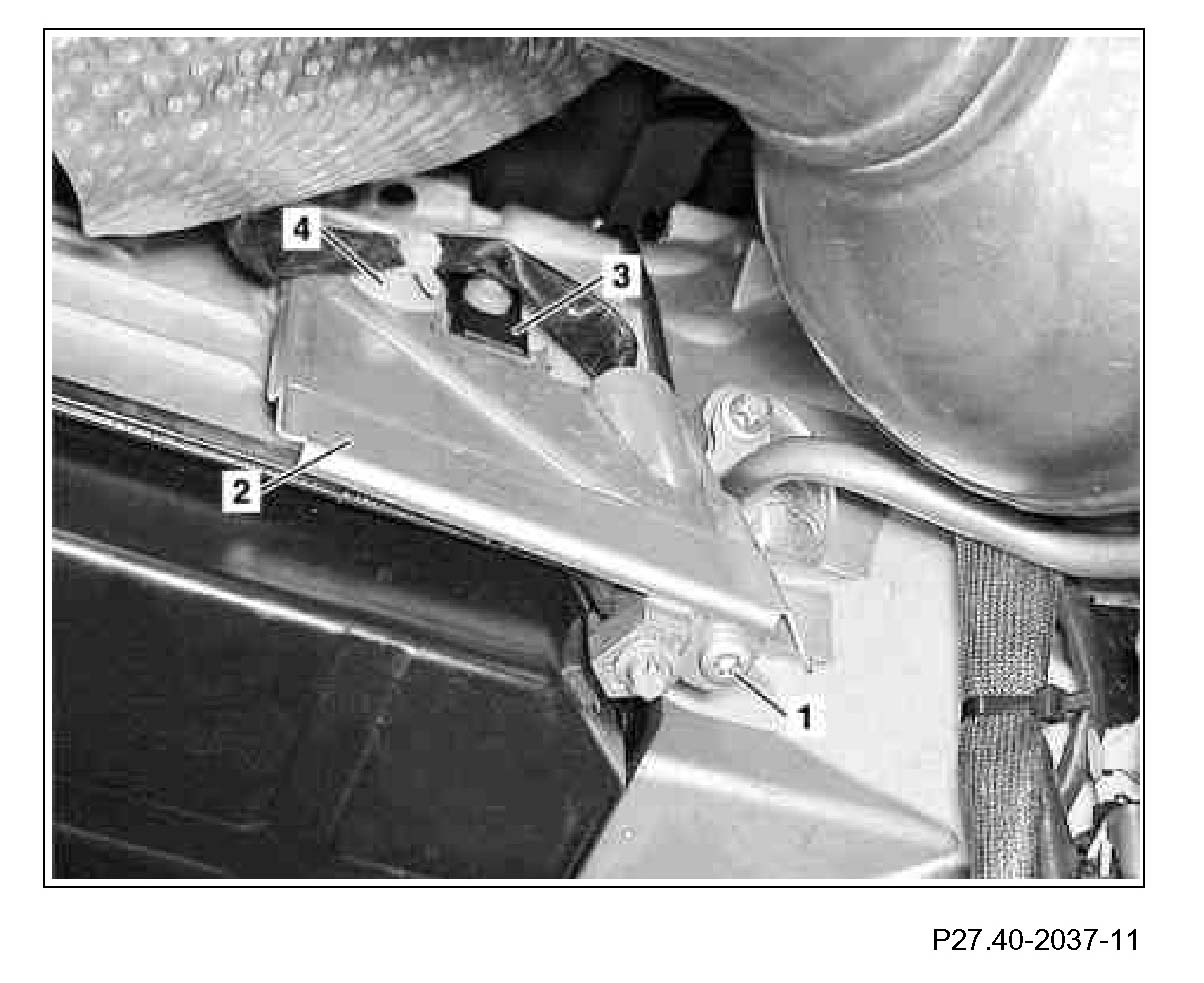

Shown on transmission 722.906
