AR27.10-P-0500GQ Remove/Install Transmission With Torque Converter

AR27.10-P-0500GQ Remove/Install Transmission With Torque Converter
TRANSMISSION 722.9 in MODEL 166.0

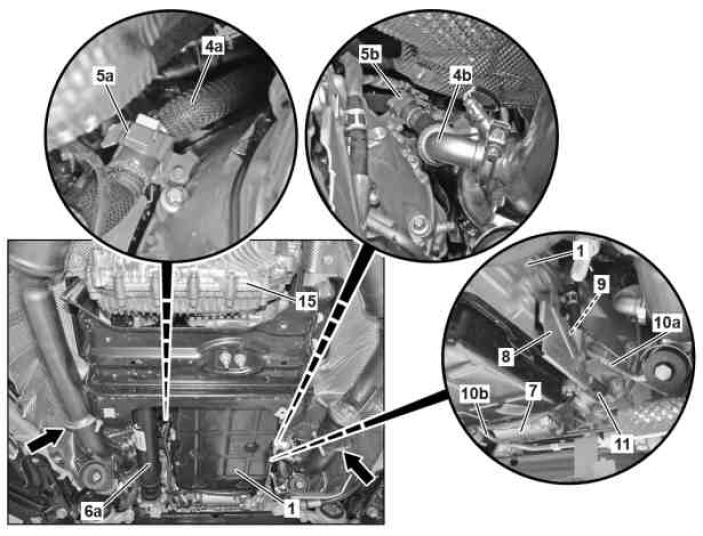

Shown on engine 276

1 Transmission
4a Exhaust gas recirculation line
4b Exhaust gas recirculation line
5a Bracket
5b Bracket
6a Front propeller shaft
7 Auxiliary oil pump
8 Shield
9 Electrical connector
10a Oil cooling line
10b Oil cooling line
11 Cover
15 Transfer case

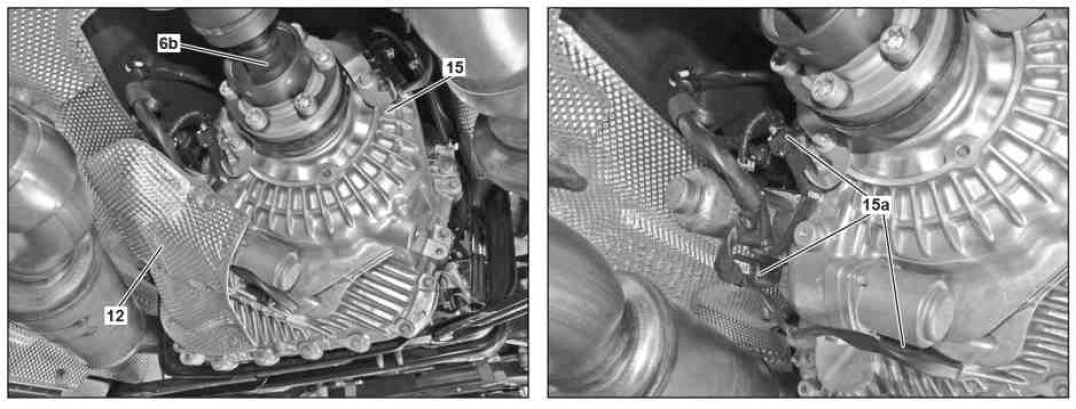

Shown on transfer case with code (430) On & off-road package

12 Heat shield
15 Transfer case
15a Electrical connectors
6b Rear propeller shaft

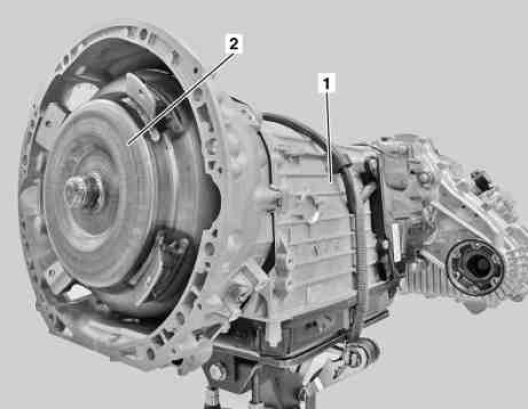

1 Transmission
2 Torque converter























651 589 00 40 00
Counterholder





168 589 00 62 00
Grab handle





126 589 04 31 00
Parallel support





164 589 02 07 00
Retainer wrench





001 589 65 09 00
Wrench socket





115 589 03 59 00
Long wedge
