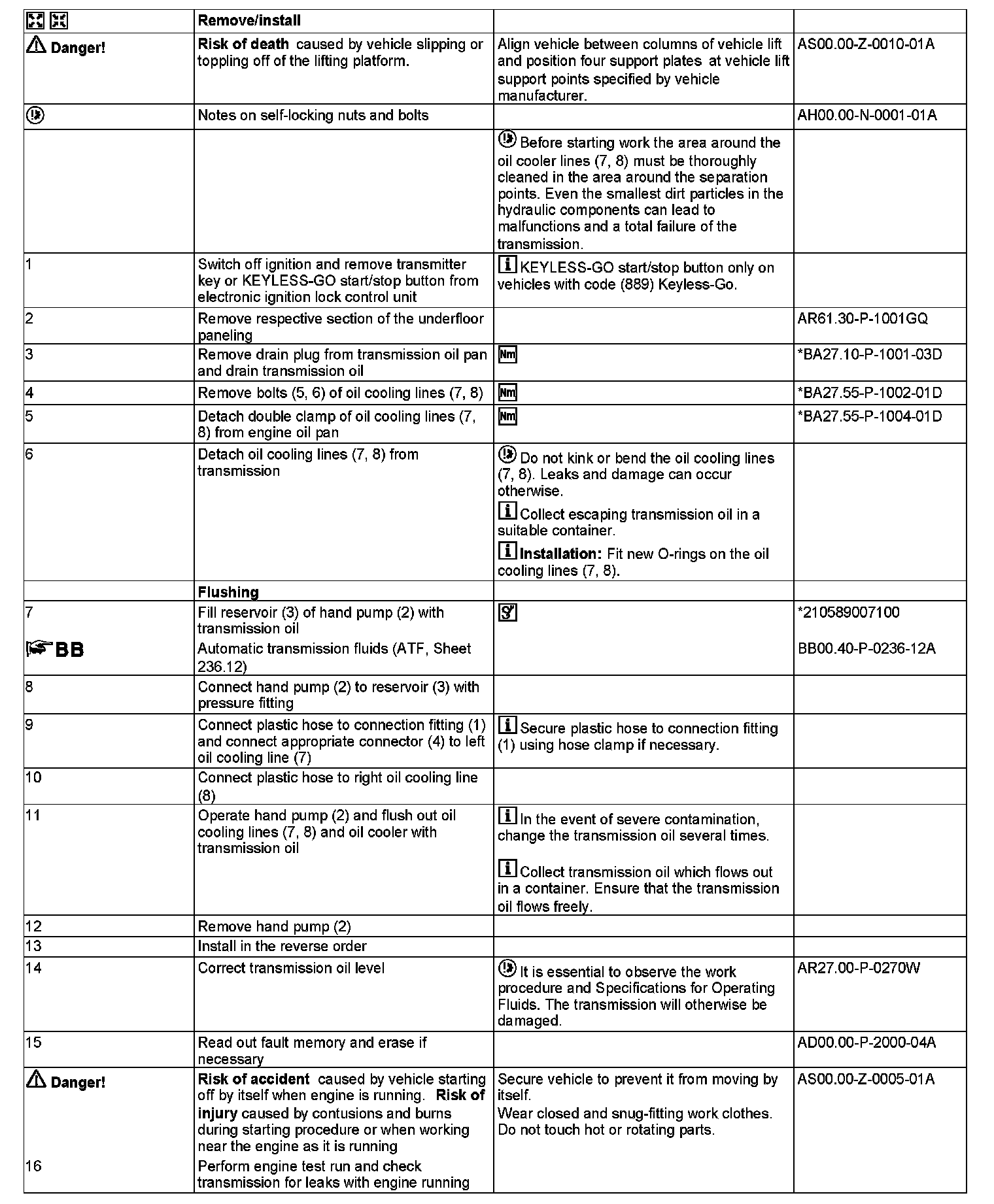

AR27.55-P-0001GQ Flushing Out Oil Cooler Lines and Oil Cooler

AR27.55-P-0001GQ Flushing Out Oil Cooler Lines and Oil Cooler
TRANSMISSION 722.9 in MODEL 166.0

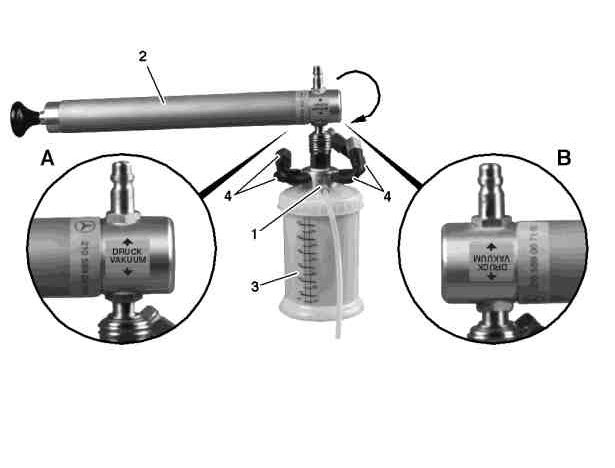

1 Connection fitting
2 Hand pump
3 Container
4 Connector

A Suctioning off
B Flushing

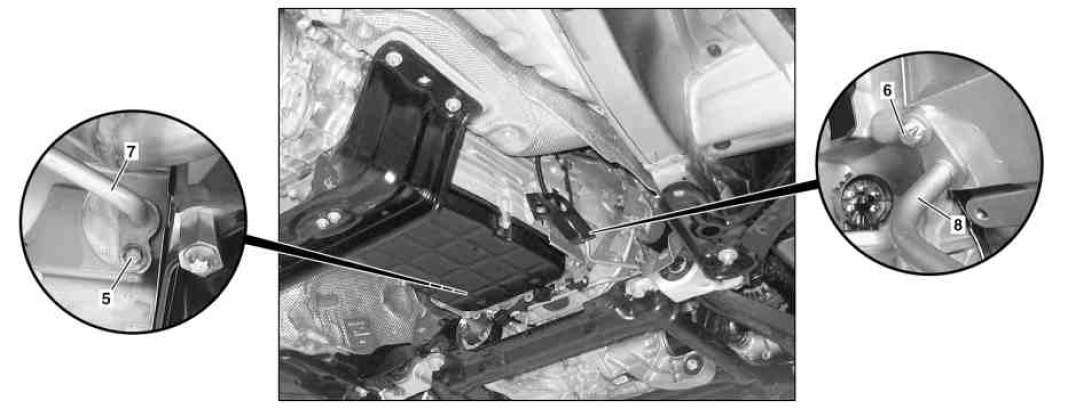

5 Screw
6 Screw
7 Left oil cooling line
8 Right oil cooling line














210 589 00 71 00
Hand pump
