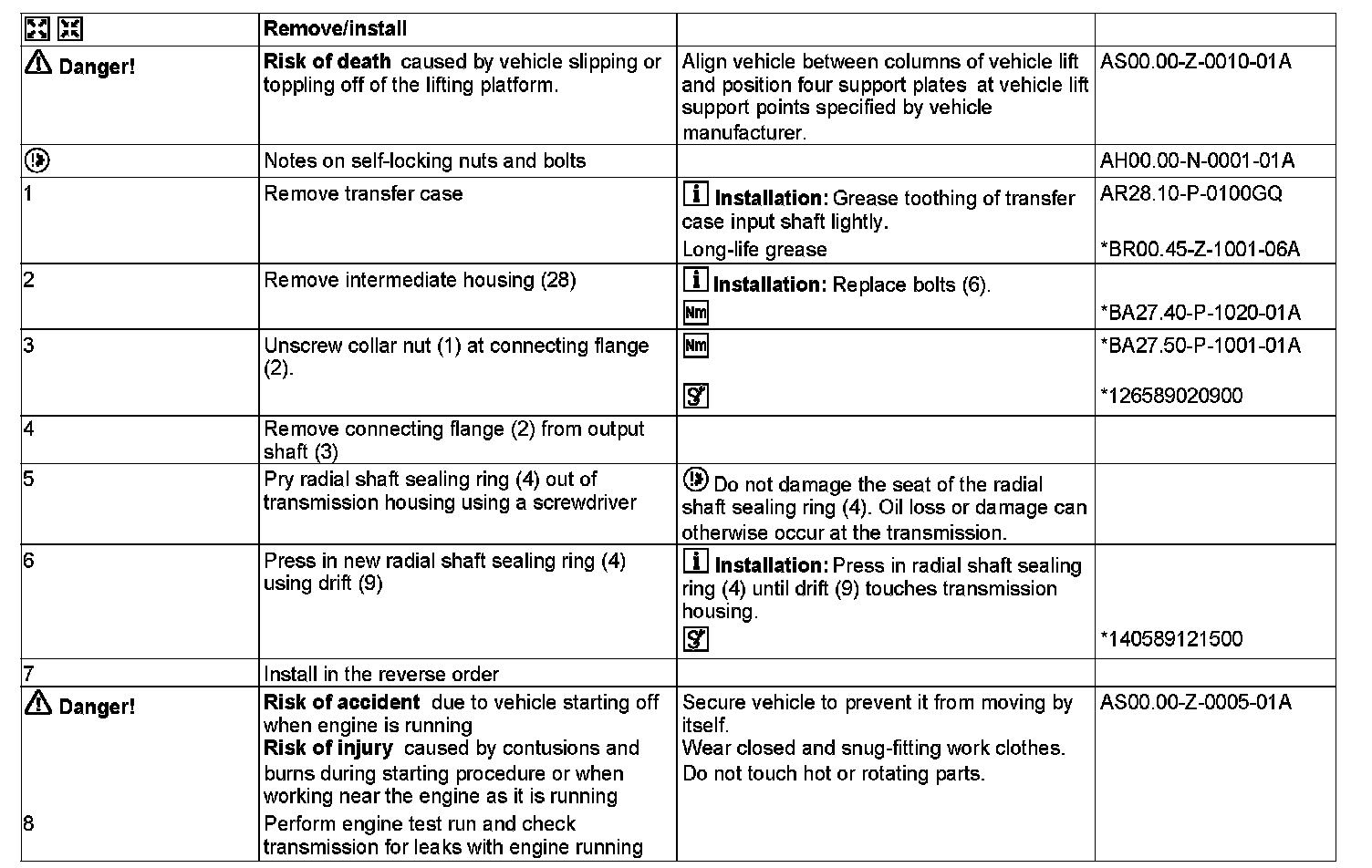

AR27.40-P-0205GQ Remove/Install Radial Shaft Sealing Ring at Output Flange

AR27.40-P-0205GQ Remove/Install Radial Shaft Sealing Ring At Output Flange
TRANSMISSION 722.9 in MODEL 166.0

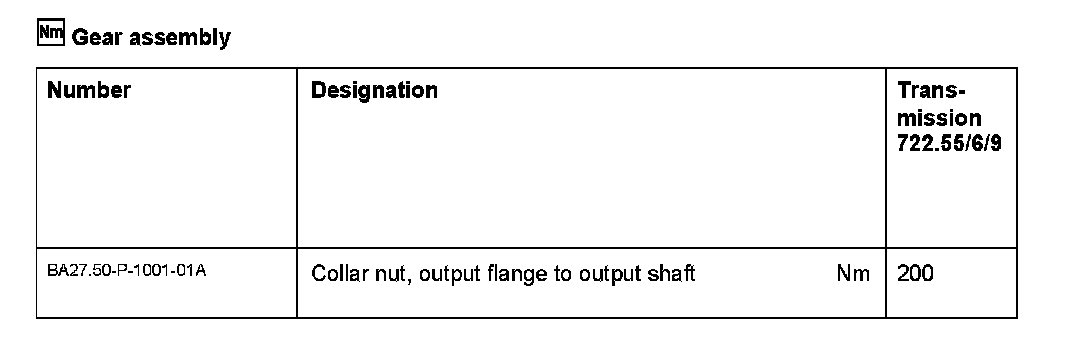

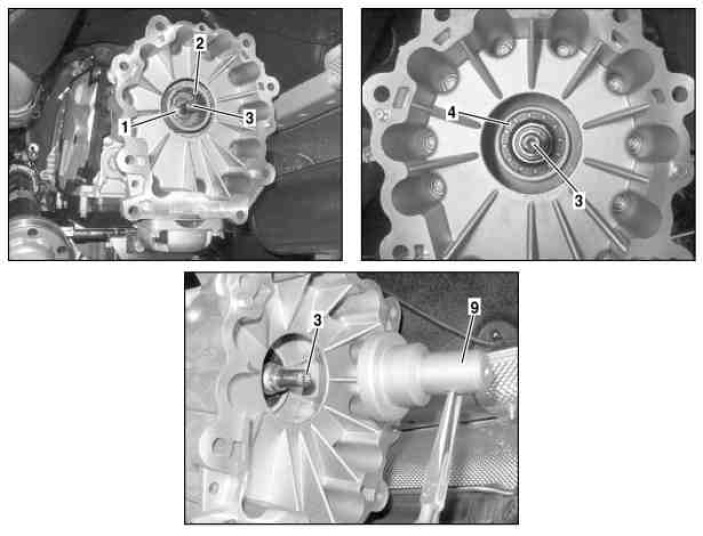

1 Collar nut
2 Connecting flange
3 Output shaft
4 Radial shaft seal
9 Drift

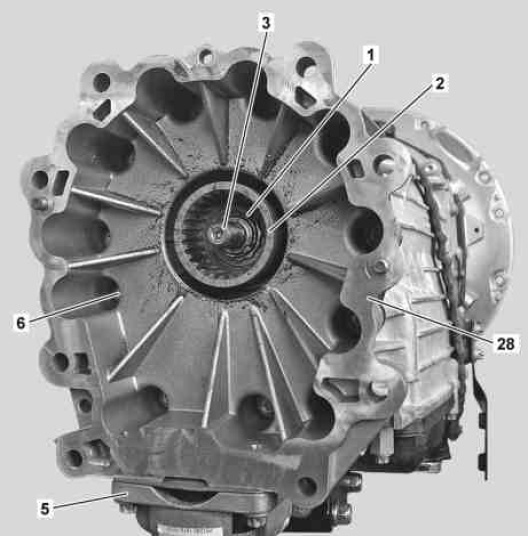

1 Collar nut
2 Connecting flange
3 Output shaft
5 Rear engine mount
6 Bolts

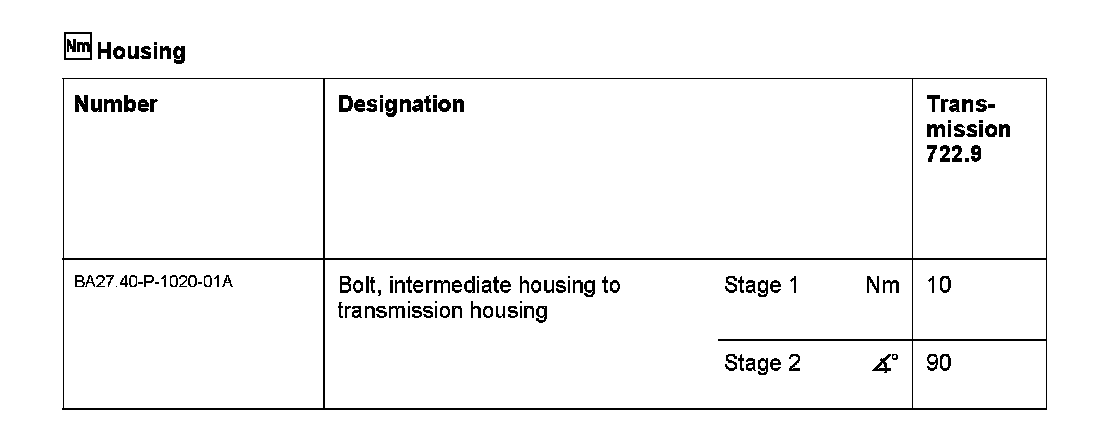

28 Intermediate housing














140 589 12 15 00
Drift





126 589 02 09 00
Wrench socket
