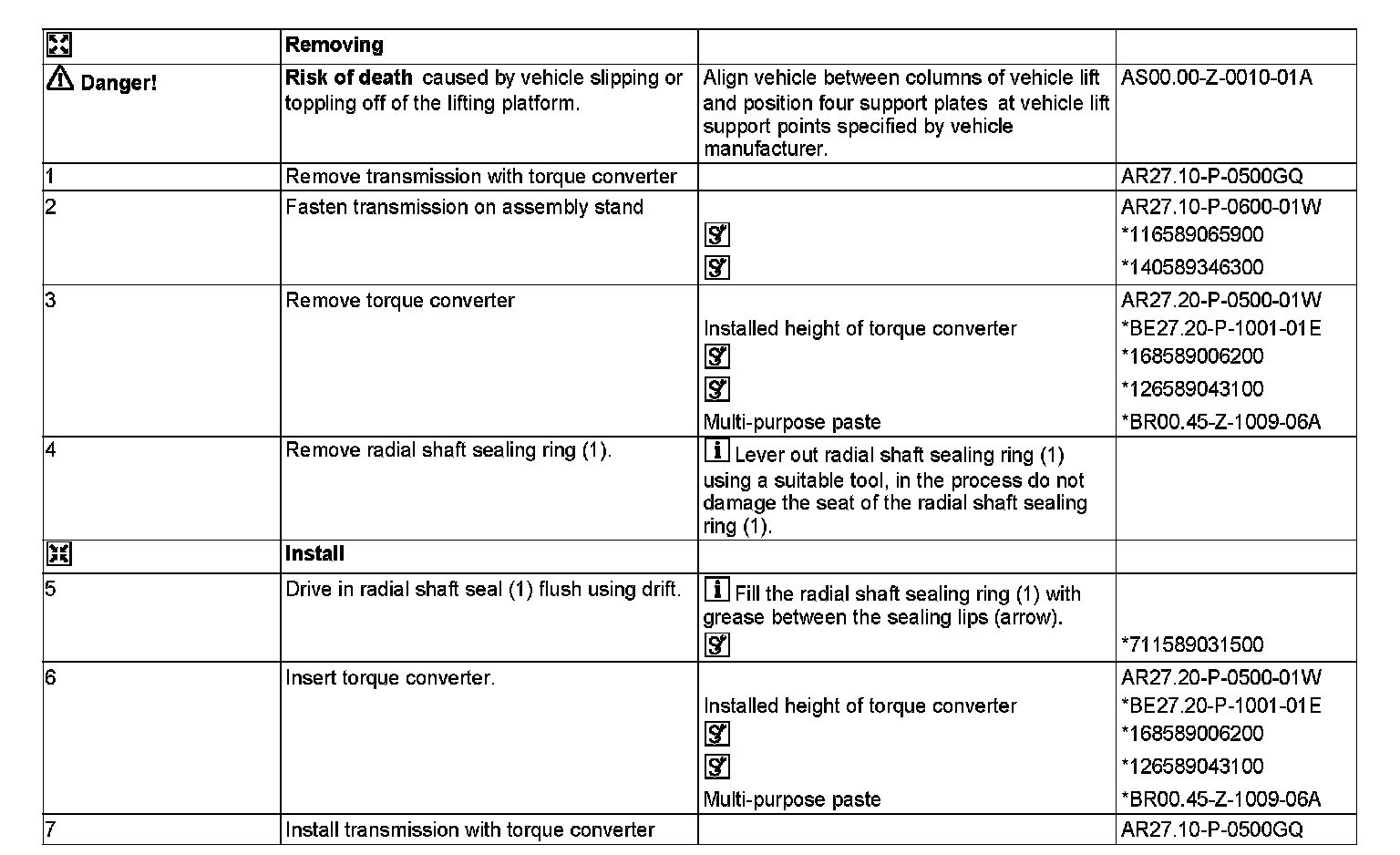

AR27.30-P-4970GQ Remove/Install Radial Shaft Sealing Ring on Front Transmission Cover

AR27.30-P-4970GQ Remove/Install Radial Shaft Sealing Ring on Front Transmission Cover
TRANSMISSION 722.9 in MODEL 166.0

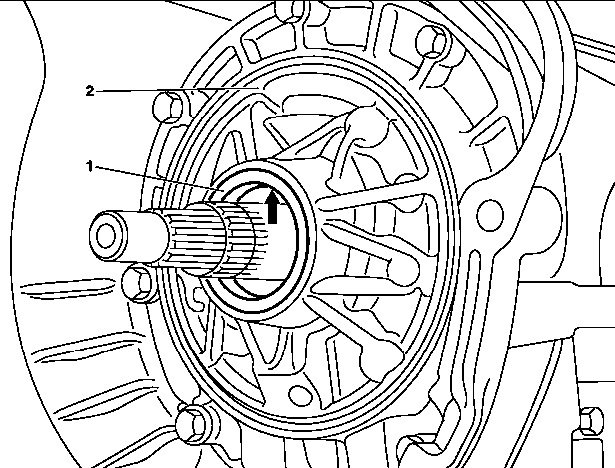

1 Radial shaft seal











116 589 06 59 00
Assembly stand





140 589 34 63 00
Support plate





168 589 00 62 00
Grab handle





126 589 04 31 00
Parallel support





711 589 03 15 00
Drift
