Fluid Pump: Service and Repair

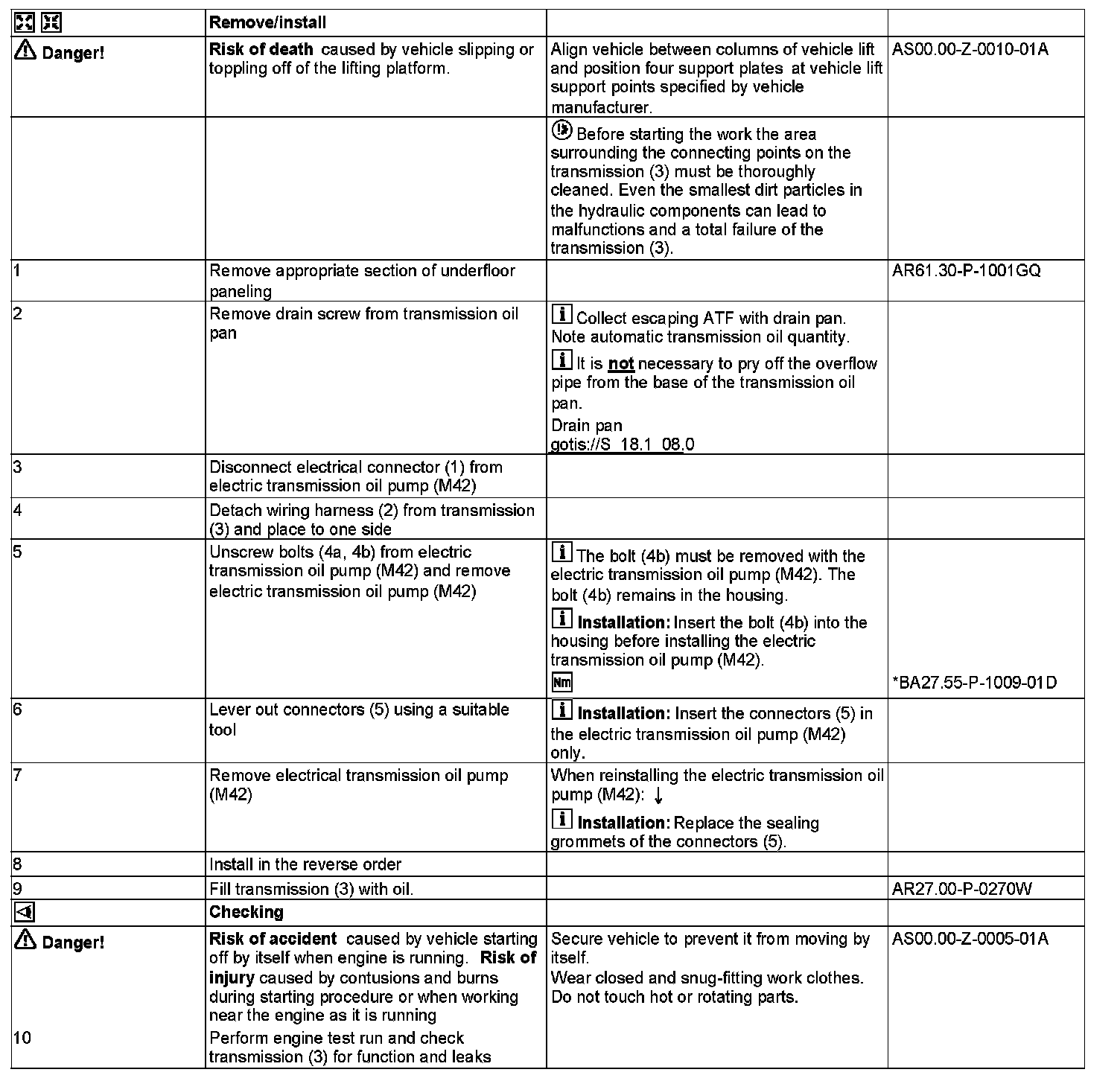

AR27.30-P-0651GQ Remove/Install Auxiliary Oil Pump For Automatic Transmission
TRANSMISSION 722.9 in MODEL 166.0

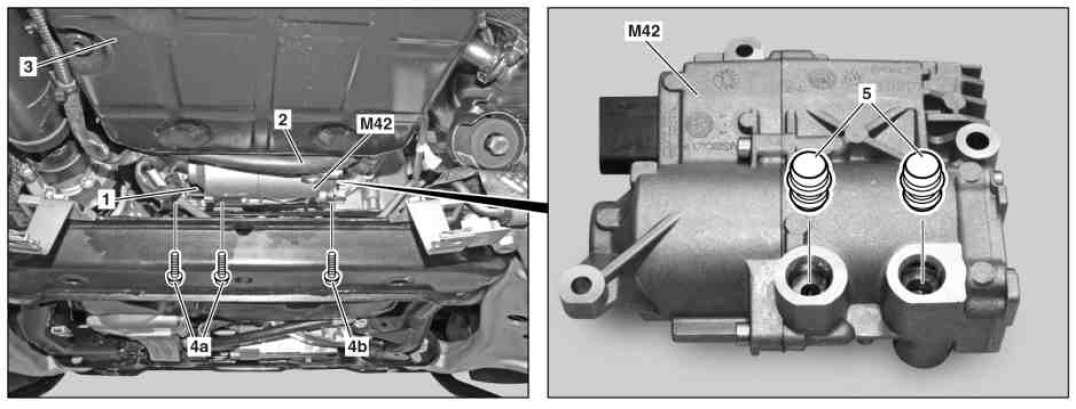

1 Electrical connector
2 Wiring harness
3 Transmission
4a Bolts
4b Screw
5 Connection piece
M42 Electric transmission oil pump
