GF27.60-P-5138G Location/Task/Function of Command Valve
GF27.60-P-5138G Location/Task/Function of Command Valve
GF27.60-P-5138G Location/task/function of command valve
- TRANSMISSION 722.6

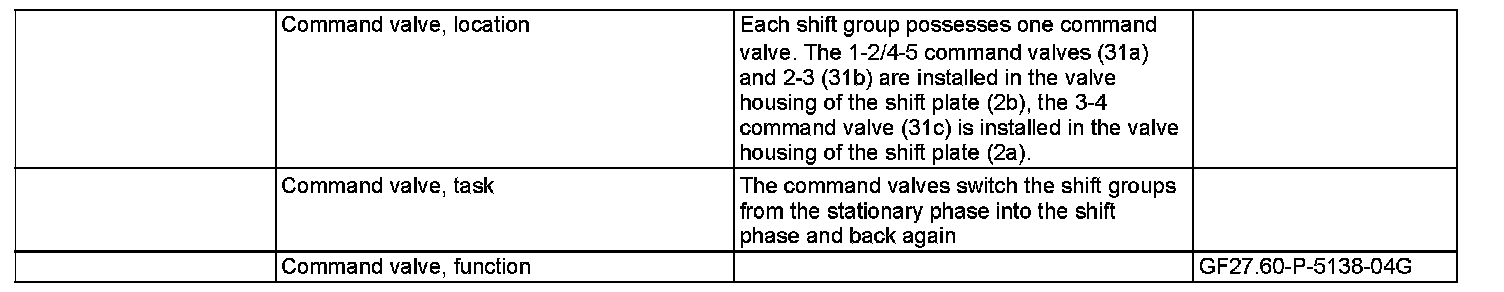

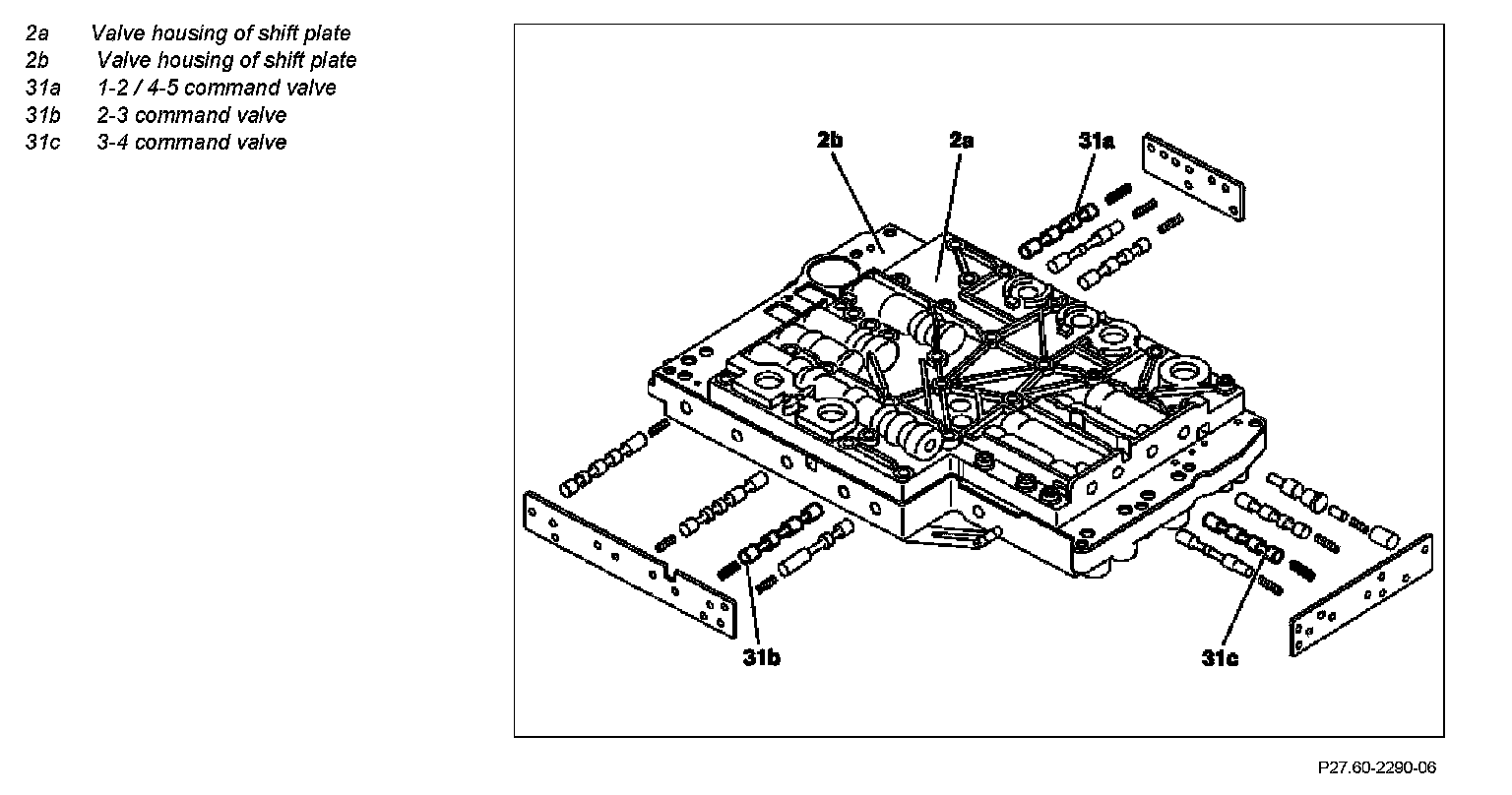

Component Identification:
