GF27.51-P-5100G Multiple-Disc Brake, Location/Task/Design/Function

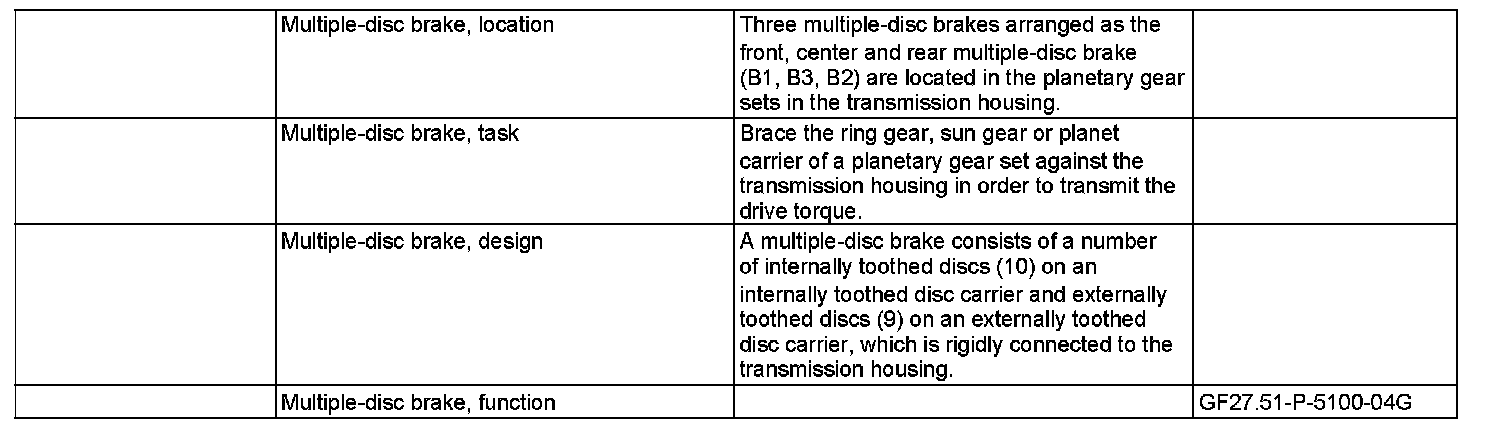

GF27.51-P-5100G Multiple-disc brake, location/task/design/function
- TRANSMISSION 722.6

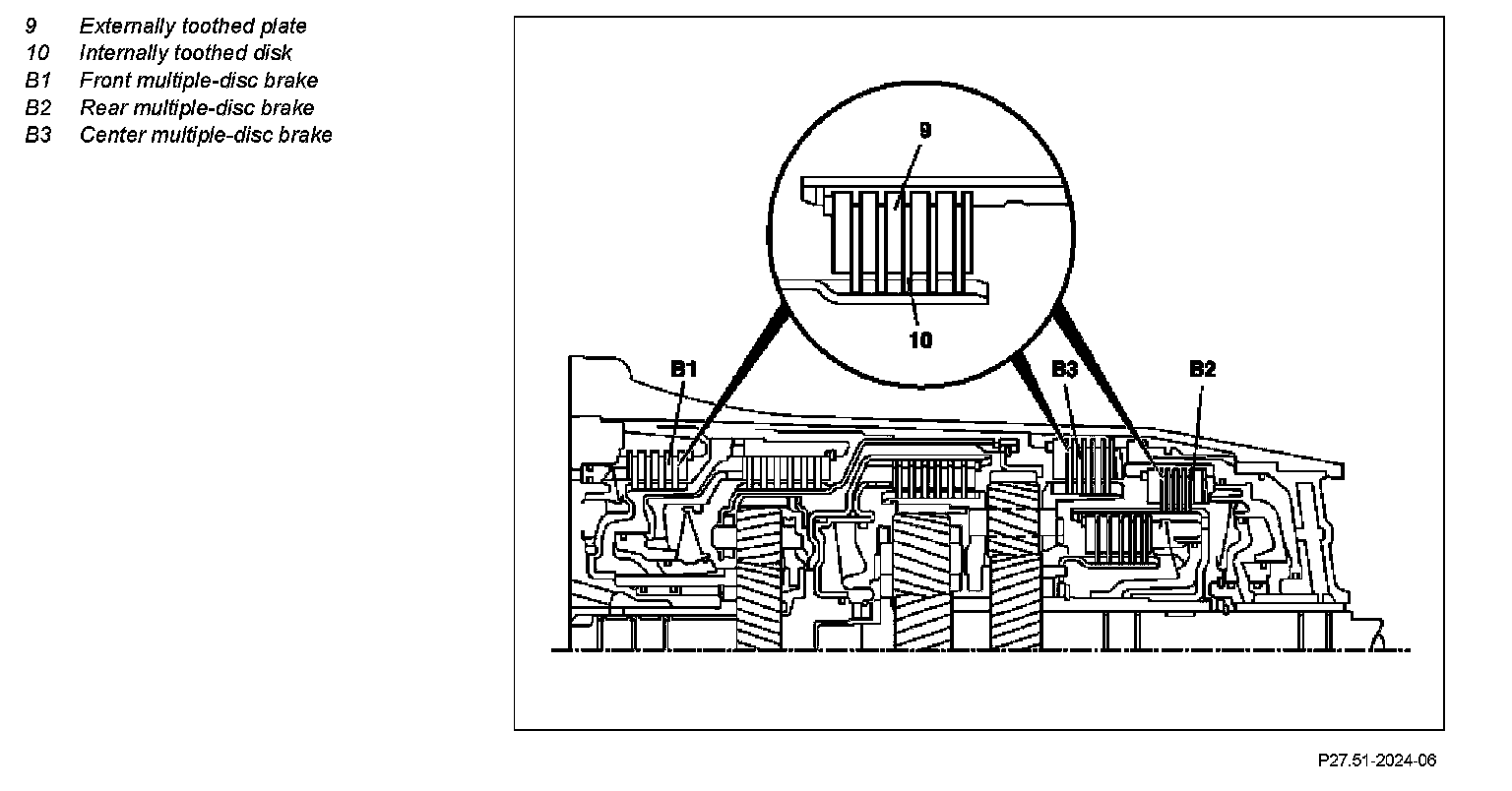

Component Identification:
