AR32.20-P-0230GZ Remove/Install Rear Spring

AR32.20-P-0230GZ Remove/Install Rear Spring
MODEL 164, 166, 251
- except CODE (489) Airmatic (air suspension with level adjustment and adaptive damping system ADS)





Shows model 164

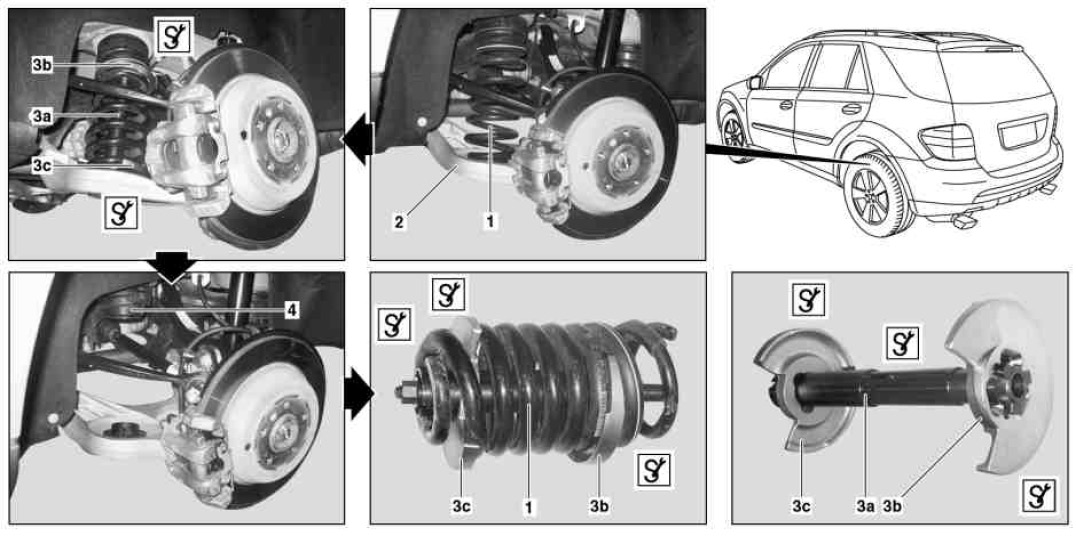

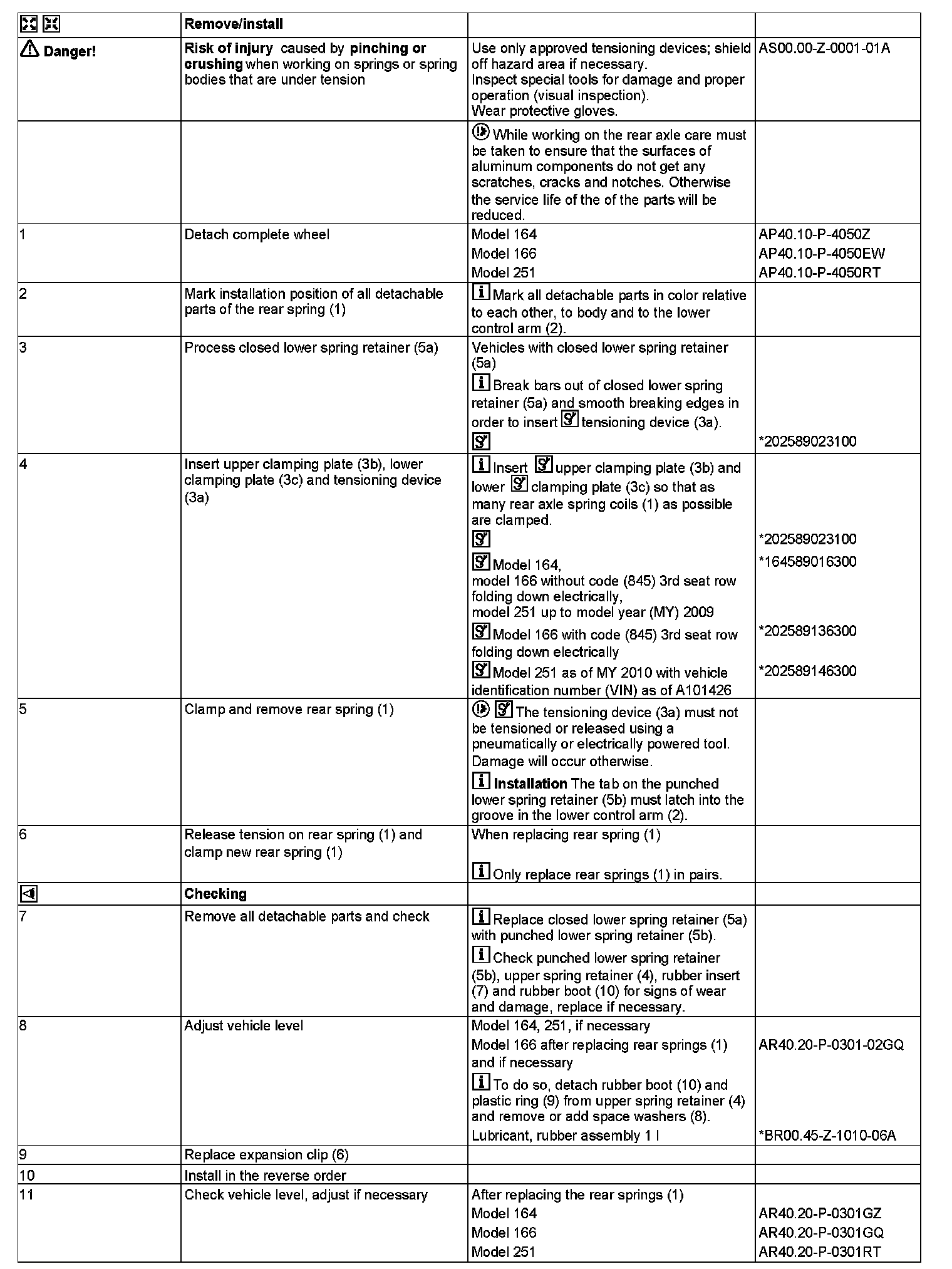

1 Rear spring
2 Lower transverse control arm
3a Tensioning device
3b Upper clamping plate
3c Lower clamping plate
4 Top spring retainer





Shows model 164

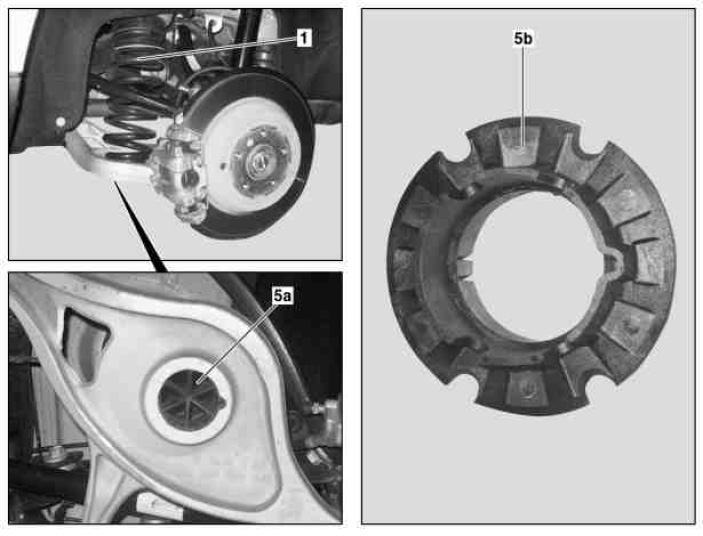

1 Rear spring
5a Closed lower spring retainer
5b Punched lower spring retainer





Shows model 164

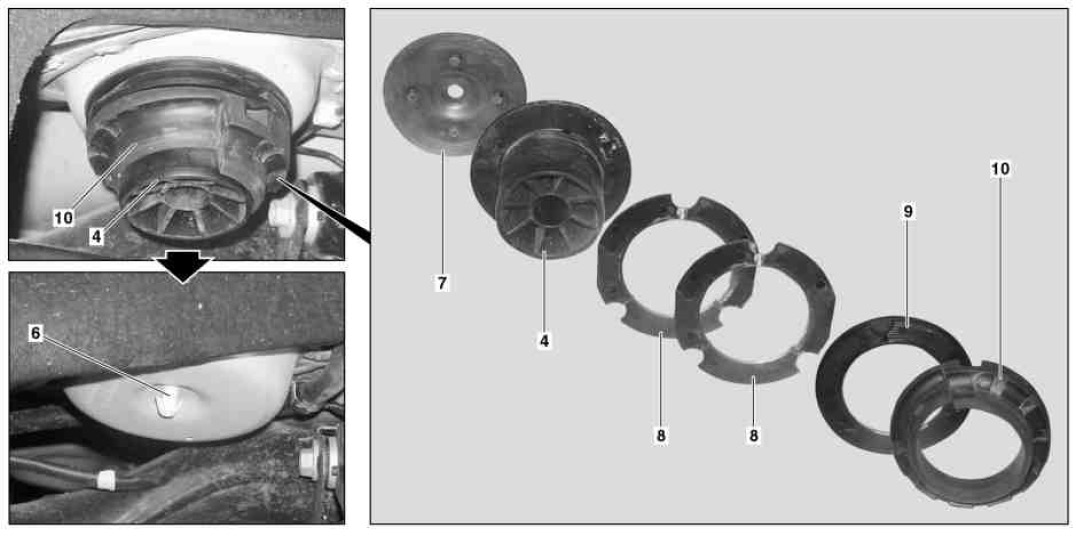

4 Top spring retainer
6 Expansion clip
7 Rubber insert
8 Spacer washer
9 Plastic ring
10 Rubber boot








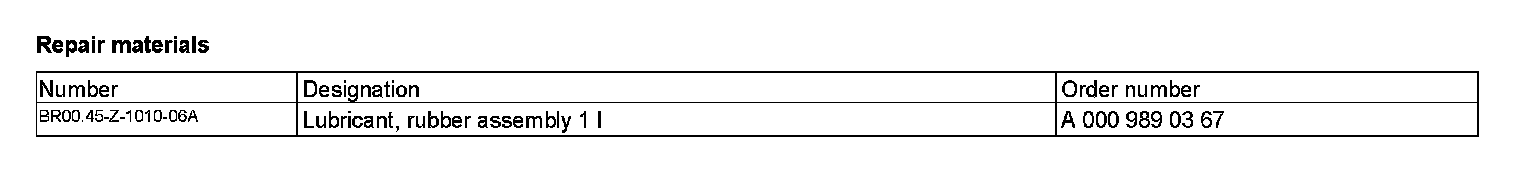

164 589 01 63 00
Clamping plates





202 589 14 63 00
Clamping plates





202 589 13 63 00
Clamping plates





202 589 02 31 00
Tensioning device
