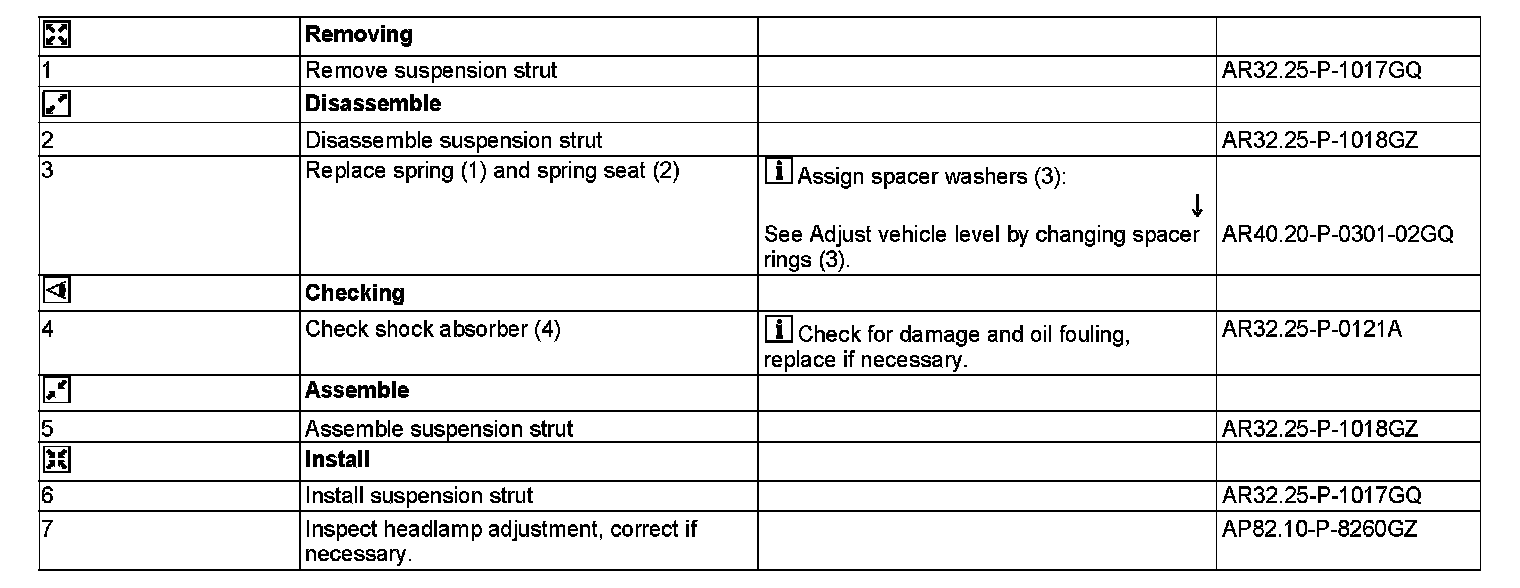

AR32.20-P-0200GQ Remove/Install Front Spring




AR32.20-P-0200GQ Remove/Install Front Spring
MODEL 166
- except CODE (489) Airmatic (air suspension with level adjustment and adaptive damping system ADS)

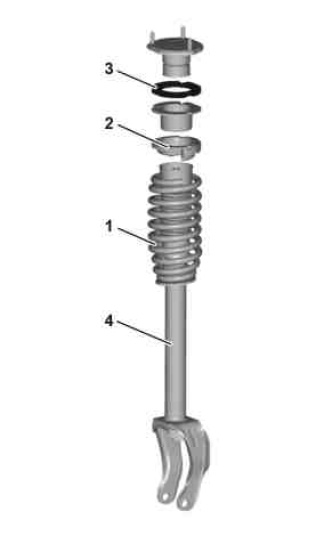

1 Spring
2 Spring seat
3 Spacer washer
4 Shock absorber
